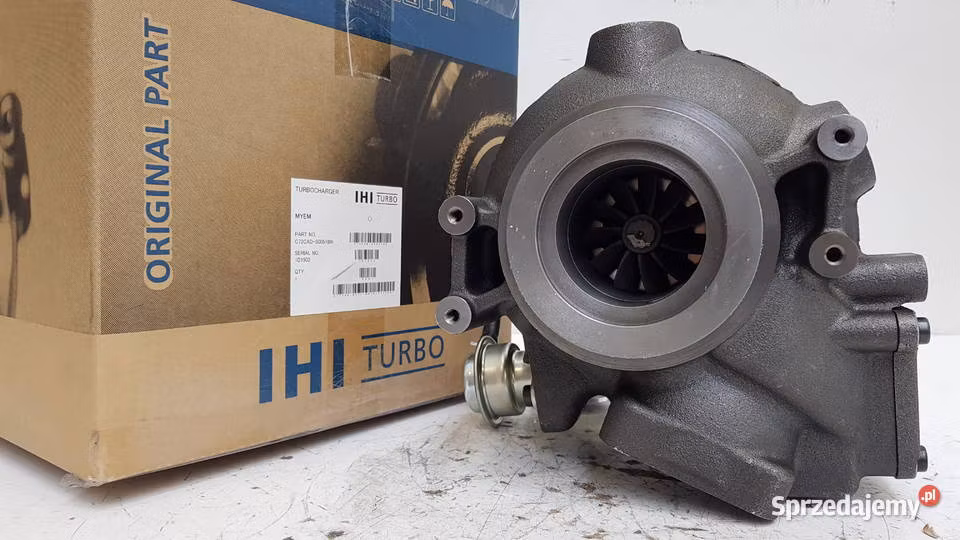

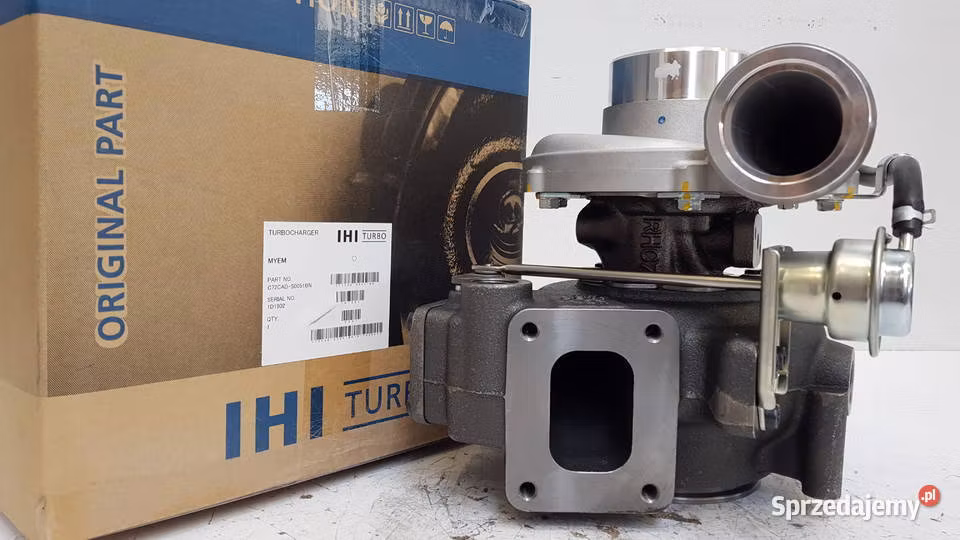

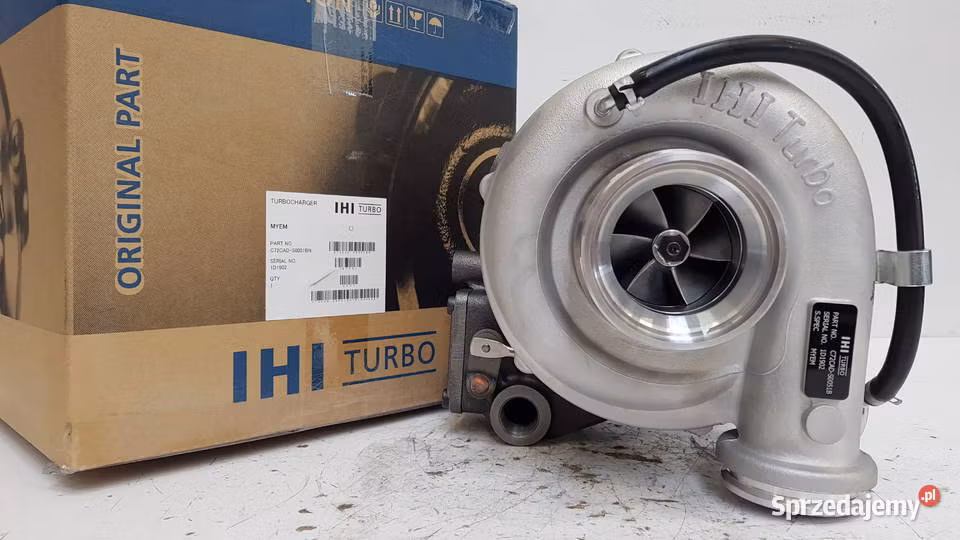

MYEM IHI RHC7 - Fabriksny originalturbo : 119578-18010

  • 34 995 kr

MYEM IHI RHC7 - Fabriksny originalturbo : 119578-18010- Fabriksny originalturbo ifrån IHI Clover som sitter på Yanmar : 6LY3, 6HY-ET Turbonummer / Original

I lager.
Article Number: MYEM
Share

MYEM IHI RHC7 - Fabriksny originalturbo : 119578-18010

- Fabriksny originalturbo ifrån IHI Clover som sitter på Yanmar : 6LY3, 6HY-ET

 Turbonummer / Originalnummer / Turbofakta ;

Part NumberVD290051
Previous Part NumberVA290051, VB290051, VC290051
OE number119578-18010,  11957818010, 12667718011，126677-18011，126677-18010，12667718010, 4105385,  C72CAD-S0051B, C72CAD-S0051G, C72CADS0051B, C72CADS0051G
Short specMYEM
Description Marine
CHRA (C72CND-S0057C, C72CNDS0057C) $1,419.78
Turbo ModelRHC7, RHC7-12307P25NFBRSB6034SUC
BTS TurboT917766
Engine 6LY3, 6HY-ET
Displacement5.813L, 6L  Cylinders
FuelDiesel
Angle α (compressor housing)75°
Angle β (turbine housing)55°
Bearing HousingNH173440 (Oil Cooled)
Turbine WheelNH172003 (NH172058)
Comp. WheelNH175905
Back plateNH172504
Heat shieldNH178265
Repair KitNH179874 $129.00 NEW IN STOCK
Turbine Housing (Water Cooled)NH178427
Compressor CoverNH174861
Turbine Housing AR22
Gasket (turbine inlet)126674-18211 (126674-18210) $106.77
Gasket (turbine Outlet)119593-18110 $35.75
Gasket (oil outlet)119593-39690 $64.35
Silencer Assy.126613-18850 $342.62
ManufacturerIHI


Applications


Yanmar Marine with 6HY-ET Engine
