709143-0001 - Repsats / Repair Kit / Rebuild kit T2/ T25 Garrett motion

  • $127.13

709143-0001 - Repsats / Repair Kit / Rebuild kit T2/ T25 Garrett motion- Perfekt repsats / lagerkit för att renovera sin T2 / T25 turbo själv.Denna repsats / re

I lager.
Article Number: 709143-0001
Share

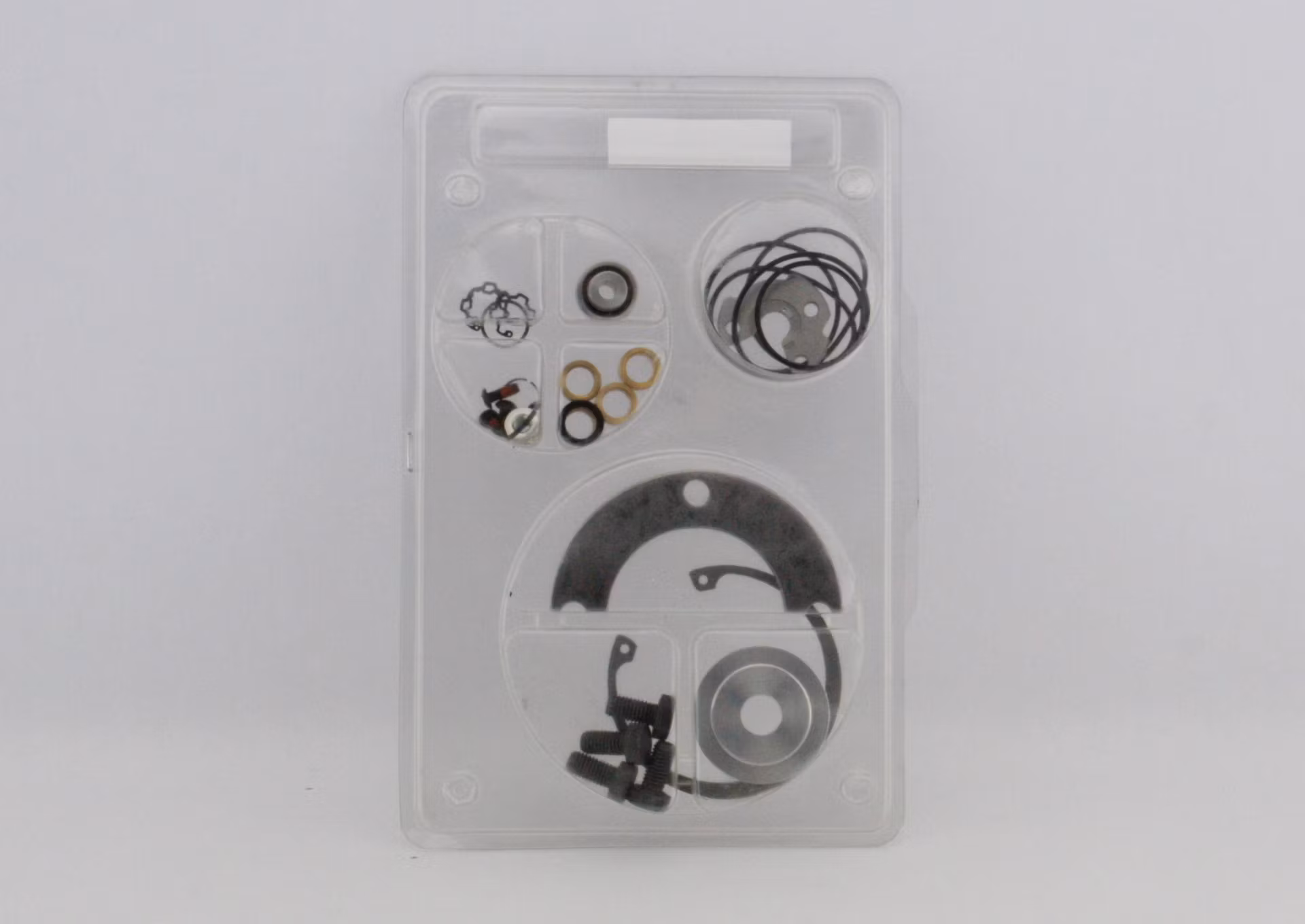

709143-0001 - Repsats / Repair Kit / Rebuild kit T2/ T25 Garrett motion

- Perfekt repsats / lagerkit för att renovera sin T2 / T25 turbo själv.


Denna repsats / repair kit / rebuild kit innehåller följande delar :

Service kit T2/25 (dynamic seal)

SEALPLATE, T2 430735-0001, 432280-0001 1x
BOLT, T3, M8x1.25, T/END 400677-0816, 431752-0816 4x
SCREW, T2, M4x0.70, T/BRG 400745-0410, 400810-0410 3x
O-RING, 41×1.8mm, S/PLT 403069-123, 403069-0163 1x
O-RING, 76×1.8mm, C/END 403069-0072 1x
RET RING, SNAP, T2/T25, JB 430064-0001, 444428-0001, 3526552 3x
JNL BRG, T2, NARROW, STD 430093-0004, 430093-0006, 430093-0016, 430093-0017 2x
JNL BRG, T2, WIDE, STD 432236-0003, 432236-0008, 435082-0001 2x
THRUST COLLAR, T25, DYNAMIC 443852-0002 1x
THRUST BRG, T2, 3-Hole, STEEL 432254-0002 1x
RRET RING, S/PLT 400589-0181 1x
RET RING, PO, T2, ROD END 400702-0018 1x
RET RING, T/END 430715-0001 1x
RET RING, SPIRAL, T2/T25, OIL 430765-0001 1x
CLAMP, T/END 707903-0001 2x
WEAR WASHER, 13mm, SEAL 444379-0003 1x
P/RING, C/E, T2/T3/4, STD 403818-0009, 403818-0048 1x
P/RING, GT15/T2, T/E, STD 400749-0006 1x
O-RING, GT15, 82×1.8mm, B/P 400748-0003, 403069-0164 1x
LOCKNUT, T2, M6*1.0 LH 435255-0001 1x


Denna repsats passar följande turboaggregat : 452043-0001, 452215-0002, 454113-0002, 454225-0002, 465185-0001,  704176-0001, 708016-0002, 709612-0001, 466028-0004, 466028-0003,  46623-0003, 466250-0002, 466370-0007, 466370-0008, 466370-0009,  466370-0010, 466370-0011, 466370-0018, 46637-0019, 466370-0020,  466370-0021, 466370-0023, 466414-0003, 466416-0003, 466416-0004,  466562-0003, 466562-0004, 466694-0001, 466694-0002, 466770-0001,  466770-0002, 466770-0003, 466770-0004, 466770-0005, 466770-0006,  466770-0008, 466728-0001, 466728-0002, 466856-0001, 466856-0002,  466856-0003, 466856-0004, 466856-0005, 466884-0002, 465265-0001,  465265-0002, 465343-0001, 465343-0002, 465137-0001, 465137-0002,  465171-0001, 465171-0002, 465175-0001, 465557-0001, 465187-0001,  465187-0002, 465429-0001, 465429-0002, 465567-0001, 465567-0002,  465465-0001, 452048-0001, 452014-0005, 452014-0006, 452014-0004,  465407-0001, 465407-0002, 454027-0001, 454027-0002, 454052-0001,  454052-0002, 454060-0001, 454088-0001, 452063-0001, 452063-0002,  452063-0003, 466349-0001, 466349-0003, 466349-0004, 466211-0001,  466211-0014, 466211-0015, 466211-0016, 466211-0017, 454087-0002,  454087-0003, 454087-0004, 454086-0001, 704090-0001, 454204-0001,  454204-0002, 454112-0003, 454112-0004, 454112-0005, 454091-0001,  454091-0002, 454132-0001, 454132-0002, 704316-0002, 704316-0003,  454110-0001, 454110-0002, 454127-0001, 454127-0002, 454169-0001,  454169-0002, 454169-0003, 454169-0004, 454193-0004, 454207-0001,  454207-0002, 704152-0001, 704152-0002, 704334-0001, 704334-0002,  704689-0005, 704689-0006, 717123-0001, 762932-0005
Repair Kit T2/ T25 TURBO REBUILD KIT
