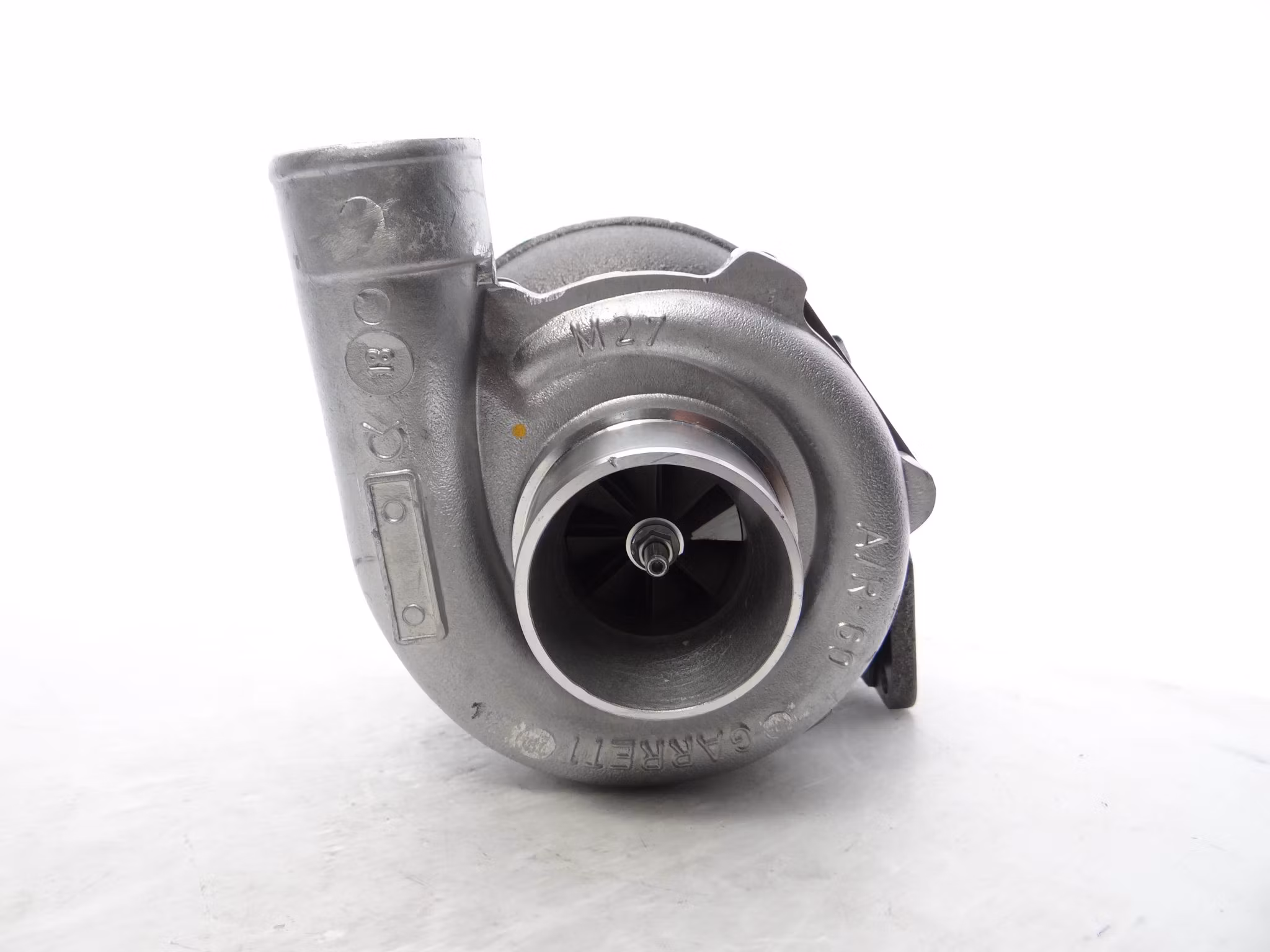

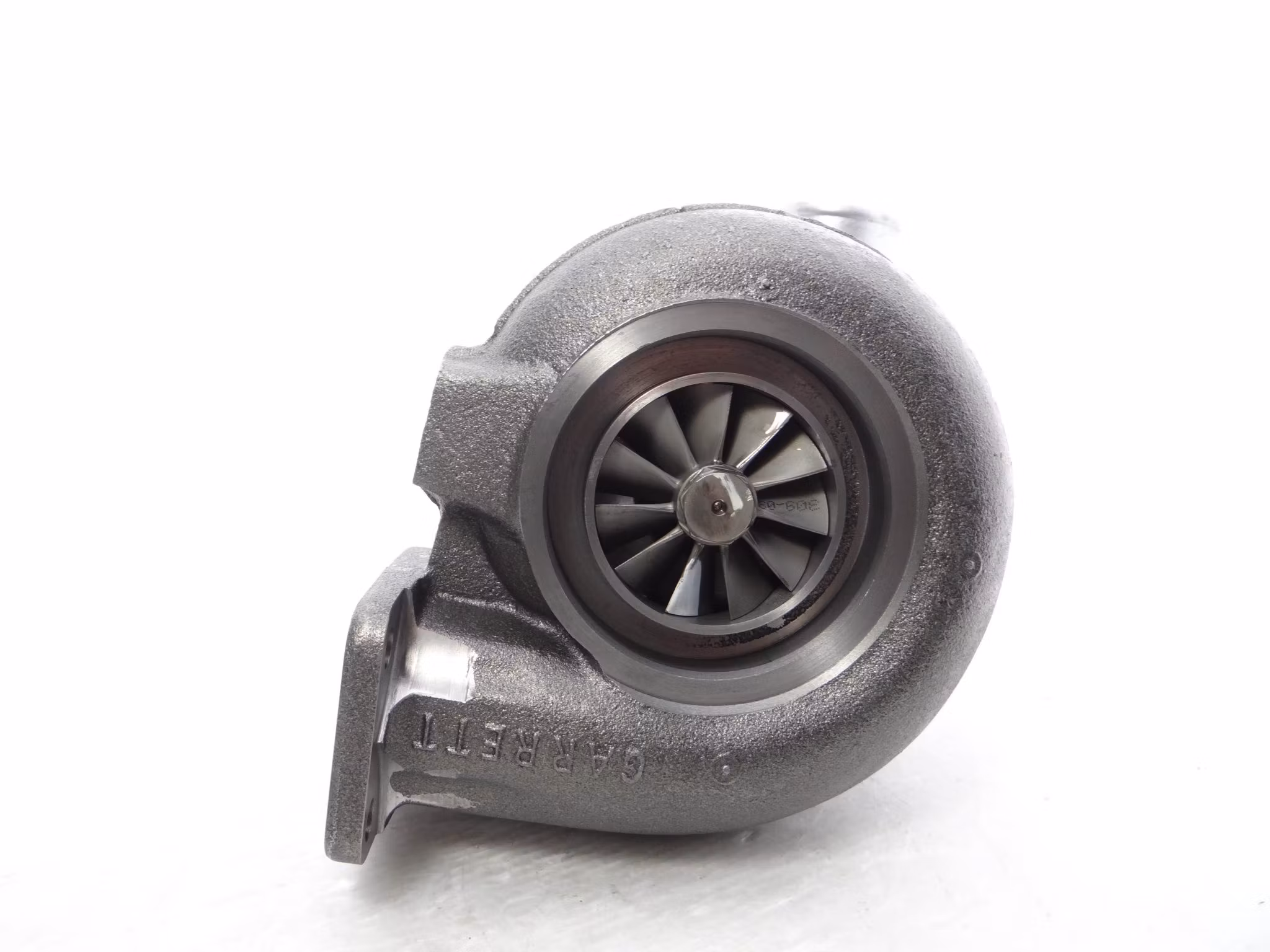

465288-5006S Garrett T04B94 renoverad ( Bytesturbo )
Packningar ingår vid köp utav denna bytesturbo.
Turbonummer / Originalnummer / Turbofakta :
| Part Number | 465288-5006S |
| Previous Version | 465288-0003, 465288-0005, 465288-0006,465288-5003S , 465288-5005S |
| OE Number | 1967070C1, 3218953R91, 3228601R91 |
| Description | JI Case Agricultural |
| Turbo Model | T04B94 |
| CHRA | 408105-0089 (408105-5089S, 408077-0104, 408105-0068, 408105-0383) |
| Bearing Housing | 430027-0051 (186880, 186882, 430027-0031)(2P**35) |
| Turbine Wheel | 451309-0003 (407276-0006, 407276-0019, 410188-0003, 410188-0006, 410188-0037, 446905-0002, 446905-0005, 446905-0007, 446905-0010, 451309-0004)(1555236) (Ind. 74. mm, Exd. 64.61 mm, 11 Blades) |
| Comp. Wheel | 409179-0028 (8N4781)(Ind. 43.63 mm, Exd. 69.9 mm, 8+8 Blades, Flat back) |
| Back plate | 408045-0051 (311708, 408045-0034, 408045-0035)(197340) |
| Heat shield Number | 409299-0001 (409299-0000) |
| Repair Kit | 468100-0000 |
| Turbine Housing | 407402-0033 |
| Compressor Cover | 408173-0028 (8N4783) |
| Turbine Housing AR | 0.84 |
| Gasket (turbine inlet) | 407294-0001 (3901356, 3709861)(312617)(Inox Steel) |
| Gasket oil inlet | 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper) |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) |
| Manufacturer | Honeywell-Garrett / Turboshop Sweden AB |
Applications
International Agricultural
J.I. Case Agricultural
