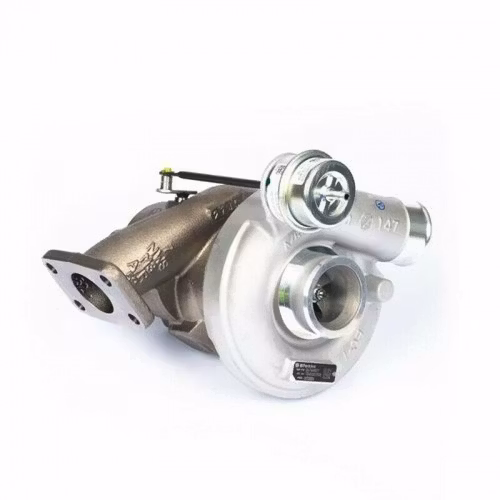

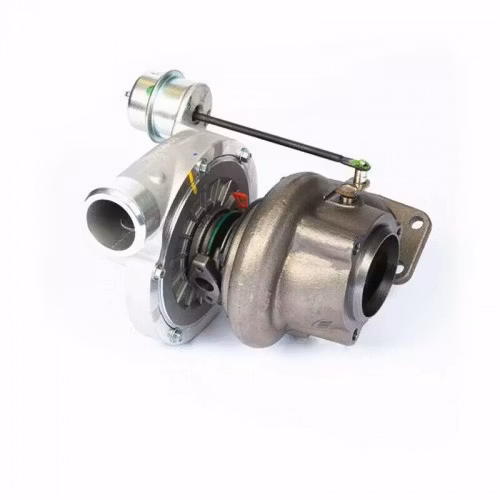

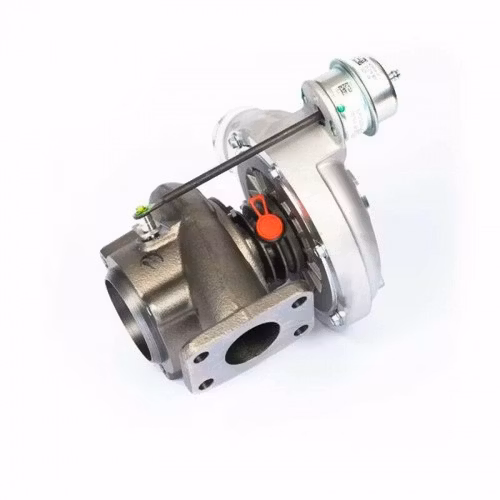

785828-5005S / 785828-5010S Garrett GT2560S Perkins OEM : 2674A806 ( Bytesturbo )

  • 8,062.54 NOK

785828-5005S / 785828-5010S Garrett GT2560S Perkins OEM : 2674A806 ( Bytesturbo )- Renoverad originalturbo med originaldelar.- 3 års garanti.- Packningssats + p

I lager.
Stock: 1
Article Number: 785828-5005S
Share

785828-5005S / 785828-5010S Garrett GT2560S Perkins OEM : 2674A806 ( Bytesturbo )

- Renoverad originalturbo med originaldelar.

- 3 års garanti.

- Packningssats + pinnbultar + muttrar ur turbon ingår vid köp utav denna turbo.

Bytesturbo = gamla turbon skall i retur till oss.

Turbofakta / OEM nummer / Turbonummer :

Part Number 785828-5005S
Previous Version768525-0010, 785828-0005, 785828-5
Year 2006-
OE number2674A806
Description Perkins Construction, Various
CHRA433289-0426 (433289-5426S)
Turbo Model GT2560S
Displacement4.0L, 4000 ccm, 4 Cylinders
KW105/143 HP
RPM Max 2400
Fuel Diesel
Engine EPA Tier 3 Electronic Fueling
Rpm  1400
Angle a (compressor housing) 185º
Angle ß (turbine housing) 105º
Bearing housing713782-0010/433275-0002/713782-0002 (1102015450)(Oil Cooling Type)
Turbine Wheel434717-0049 (Ind. -, Exd. 45.82 mm, 12 Blades)
Comp. Wheel 720915-0006 (Ind. 42.2 mm, Exd. 60. mm, Trm 50, 5+5 Blades, Superback)(1102122400)
Back plate703682-0202
Heat Shield434686-0001
Repair Kit732252-0001 (1102015756)
Settings Waste gate (pressure)1.09-1.15 bar
Settings Waste gate (lifting rod)1.00 mm
Gasket (turbine inlet)210658 (Inox Steel)
Gasket (oil outlet)210553
ManufacturerHoneywell-Garrett


Applications


2006- Perkins Various, Construction Equipment With EPA Tier 3 Electronic Fuelling
