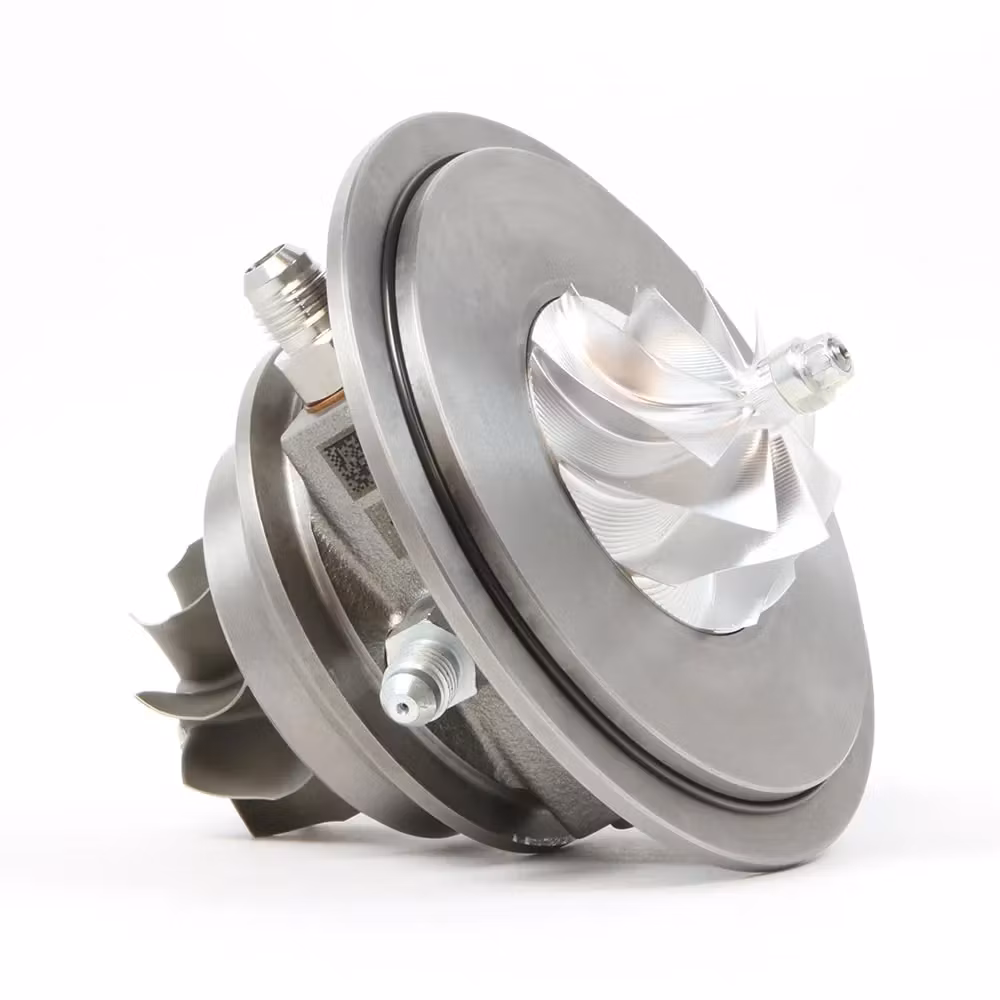

Garrett G25-660 Core Reverse 871383-5002S

  • 21 995 kr

 Garrett G25-660 Core Reverse 871383-5002S - New chra / Core for G25-660 reverse and also 898200-5001W.  Horsepower: 300 - 660 HP Displ

I lager.
Article Number: 871383-5002S
Share

 Garrett G25-660 Core Reverse 871383-5002S

- New chra / Core for G25-660 reverse and also 898200-5001W.



Horsepower: 300 - 660 HP
 Displacement: 1.4 - 3.0 L



Honeywell Garrett G-Series - The newest and most advanced generation turbocharger!


  • Latest CFD-optimized, forged milled compressor wheel
    •
  • High-Flow compressor housing with integrated easy plug speed sensor port
    •
  • Rotation: Reverse (Counterclockwise)
    •
  • Dual ceramic ball bearing cartridges
    •
  • Includes -4AN oil restrictor fitting with 1mm orifice
    •
  • Four large water jacket ports
    •
  • Twin piston rings at compressor and turbine site
    •
  • MAR-M 1050°C turbine wheel
    •
  • Water- and Oil cooled
    •

   Compressor side:
Inducer ø
54.00mm		Exducer ø
67.00mm		Trim
65		A/R
0.70

  Turbine side:
Inducer ø
54.00mm		Exducer ø
49.00mm		Trim
84		A/R
NA



We  are the only Garrett Performance Distributor for Sweden and will  support you with any questions about these turbocharger or would help to  design your project.
