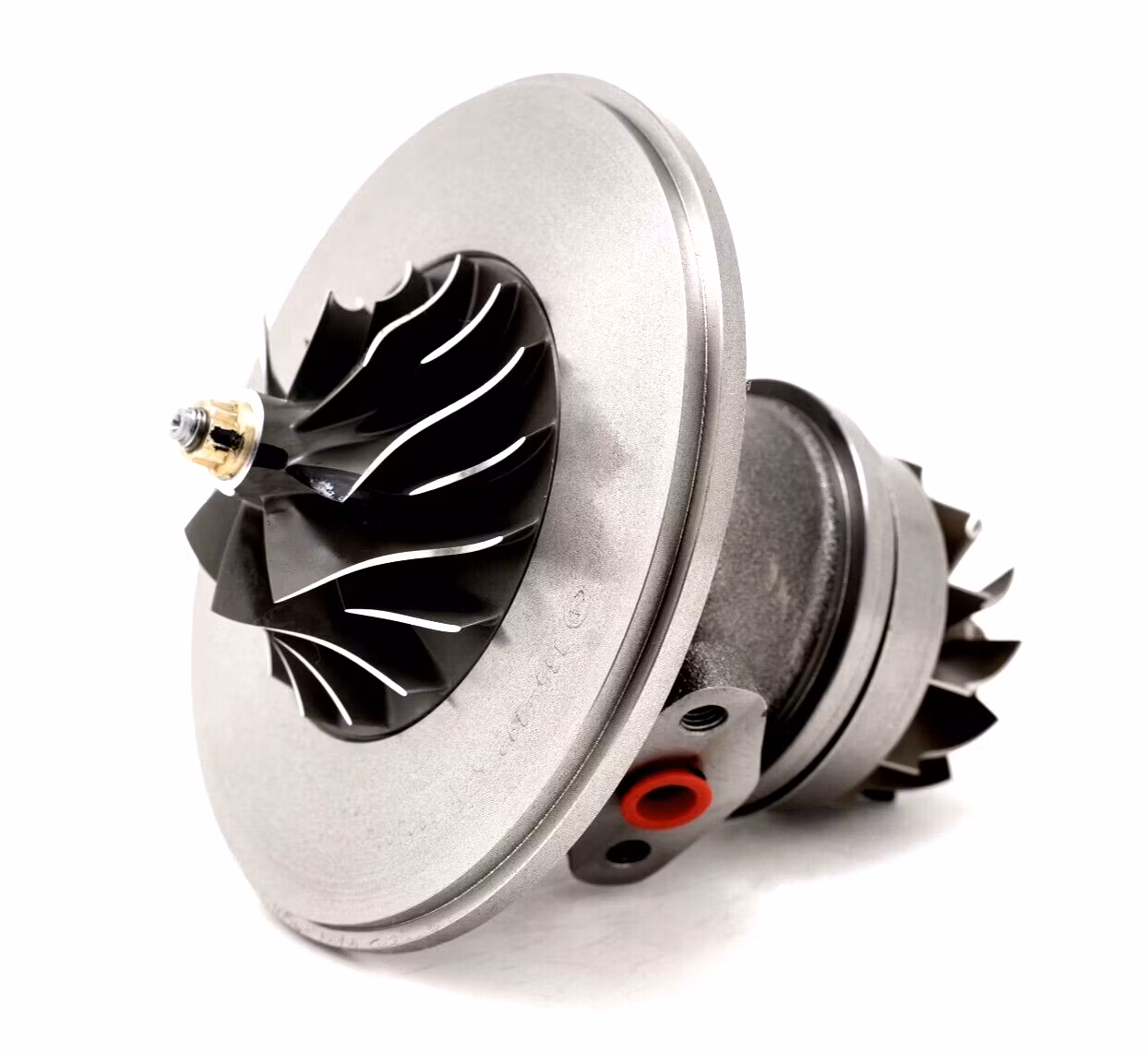

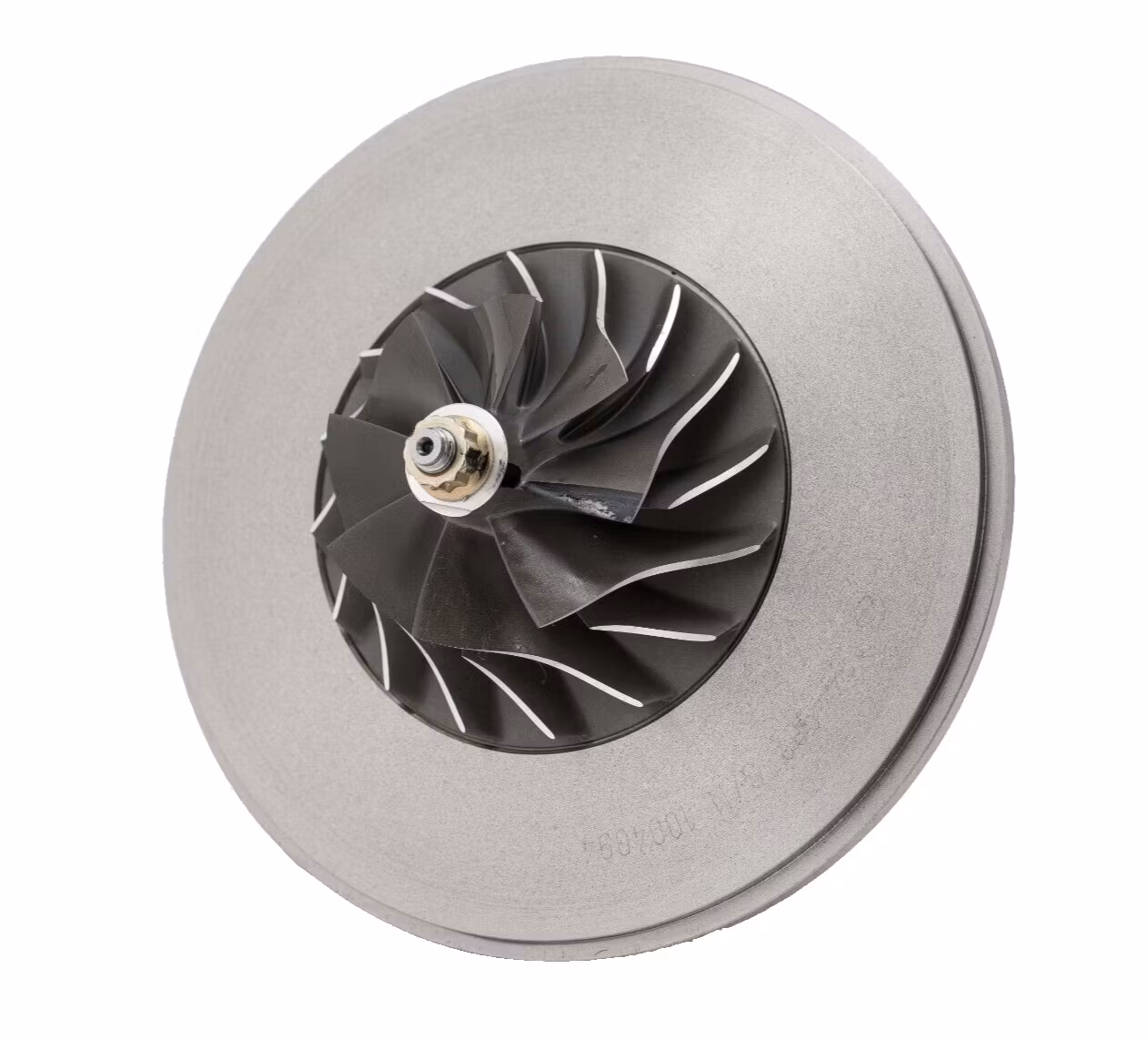

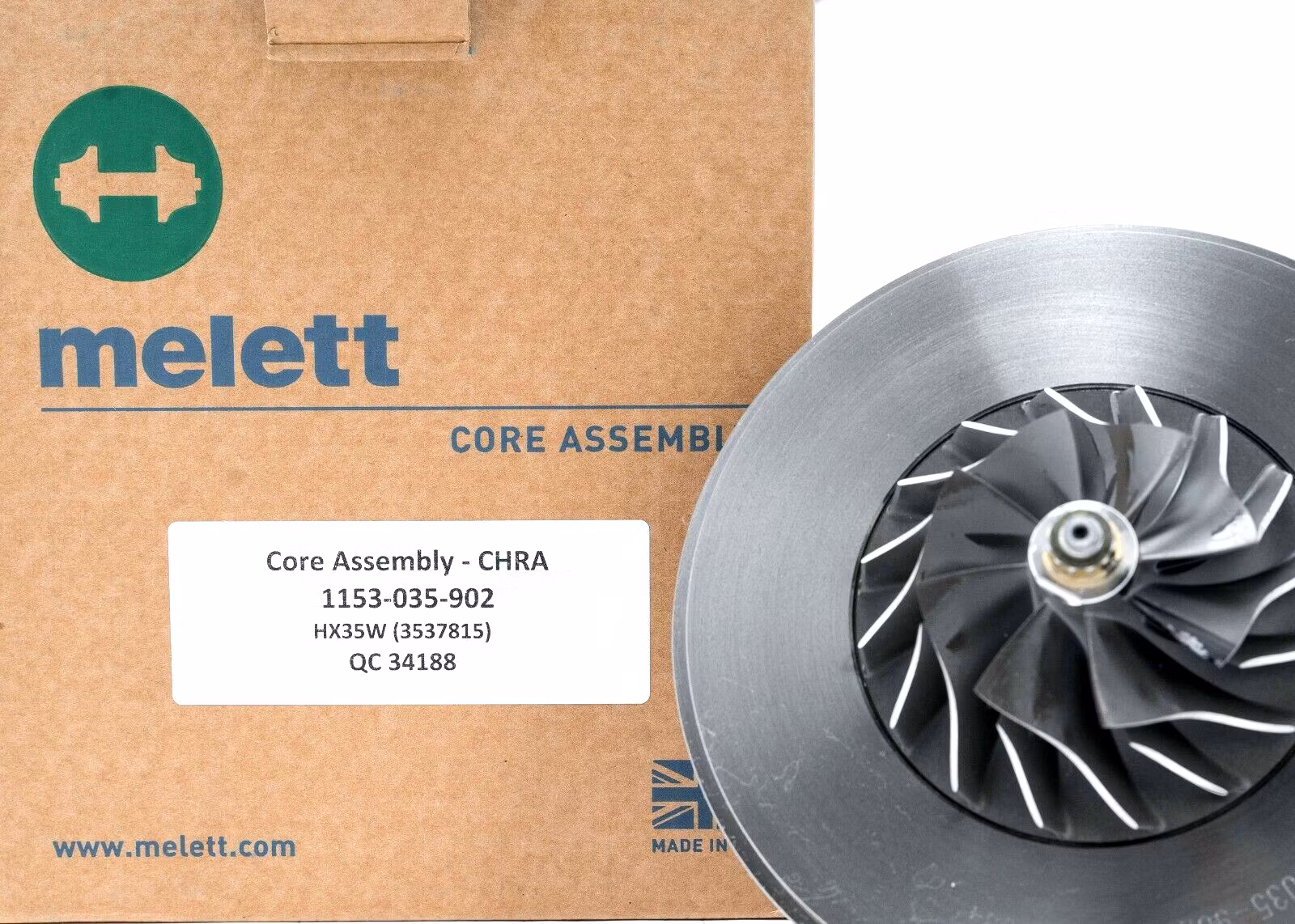

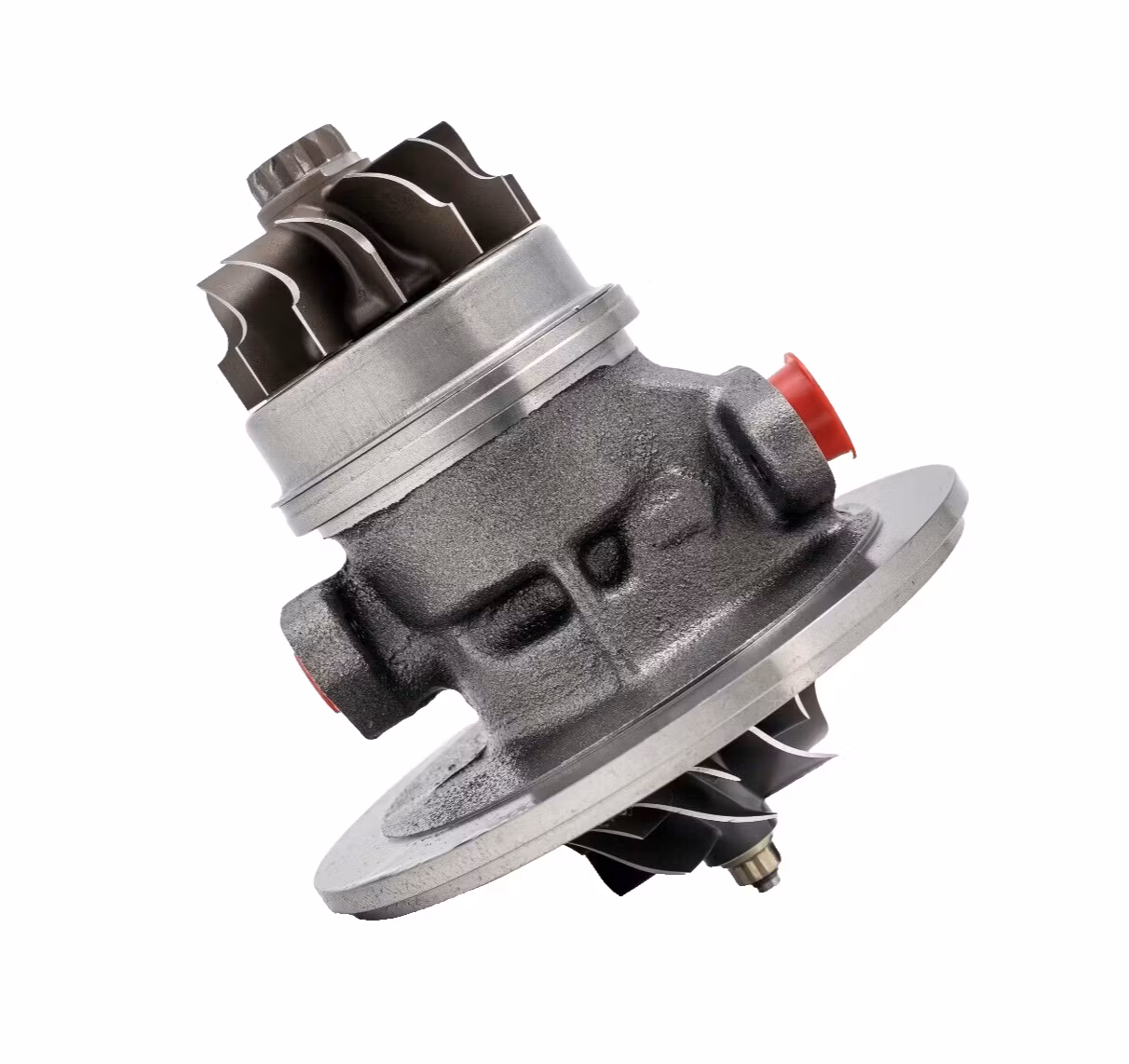

1153-035-902 / Melett HX35W Centrumdel / Centrumkärna / CHRA / Rotordel

  • 3 300 kr

1153-035-902 / Melett HX35W Centrumdel / Centrumkärna / CHRA / Rotordel- Melett fabriksny centrumdel utav högsta möjliga eftermarknads kvalité.Turbonummer / Ori

I lager.
Article Number: 1153-035-902
Share
1153-035-902 / Melett HX35W Centrumdel / Centrumkärna / CHRA / Rotordel

- Melett fabriksny centrumdel utav högsta möjliga eftermarknads kvalité.


Turbonummer / Originalnummer osv som denna centrumdel passar.

Part Number3534923
Previous Part Number3533102, 3534924, 3534924H, 3539263
OE number3802778, 380277800, 380277800HX, 3802778HX, 3802778NX, 3802778RX
DescriptionCummins Freightliner   Railway
Turbo ModelHX35W, HX35W-8274L/E12DC11
CHRA3537815 (353781500, 3537815H)(1000020136) $295.00 NEW IN STOCK, MADE IN USA
Engine ManufacturerCummins
Manufacturer Part Number3532897, 3534924, 3539263
KW190/230 HP
Engine Model6BT
Displacement 5.9L, 5900 ccm
KW190/230 HP
Fuel  Diesel
Angle α (compressor housing)240/290°
Angle β (turbine housing)165°
Bearing Housing3532632 (4027869, 4027443)(84.50 mm)(Oil Cooled) $85.00 NEW IN STOCK
Turbine Wheel3519336 (3595832) (Ind. 70. mm, Exd. 60. mm, 11 Blades) (1152301435) $155.42 NEW IN STOCK
Comp. Wheel3599593 (3537167) (Ind. 56. mm, Exd. 83. mm, 8+8 Blades, Super back)  $99.00 NEW IN STOCK
Back plate3530923 (1154351300) $33.48 NEW IN STOCK
Heat shield Number3519302 (1152301340) $14.95 NEW IN STOCK
Repair Kit3575169 (1153035750) $88.80 NEW IN STOCK
Actuator3533135 (4020121,  4029801, 4030002, 4030015, 4030044, 4030054, 4030055, 4030056, 4030060,  4030066, 4030067, 4030079, 4030085, 4030086, 4030110, 4030156, 4030162,  4030162H, 4030181, 4030203, 4030240, 4030247, 4030255, 4030266, 4030958,  4030960, 4030978, 4030980, 4030981, 4030985, 4032301, 4032684, 4032751)
Gasket (turbine inlet)409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006) $13.52
Gasket (Cover plate)3535001 $21.64
Gasket (oil outlet)210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper) $4.48
ManufacturerHOLSET



Applications

1994-  Cummins Freightliner With 6BT engine
