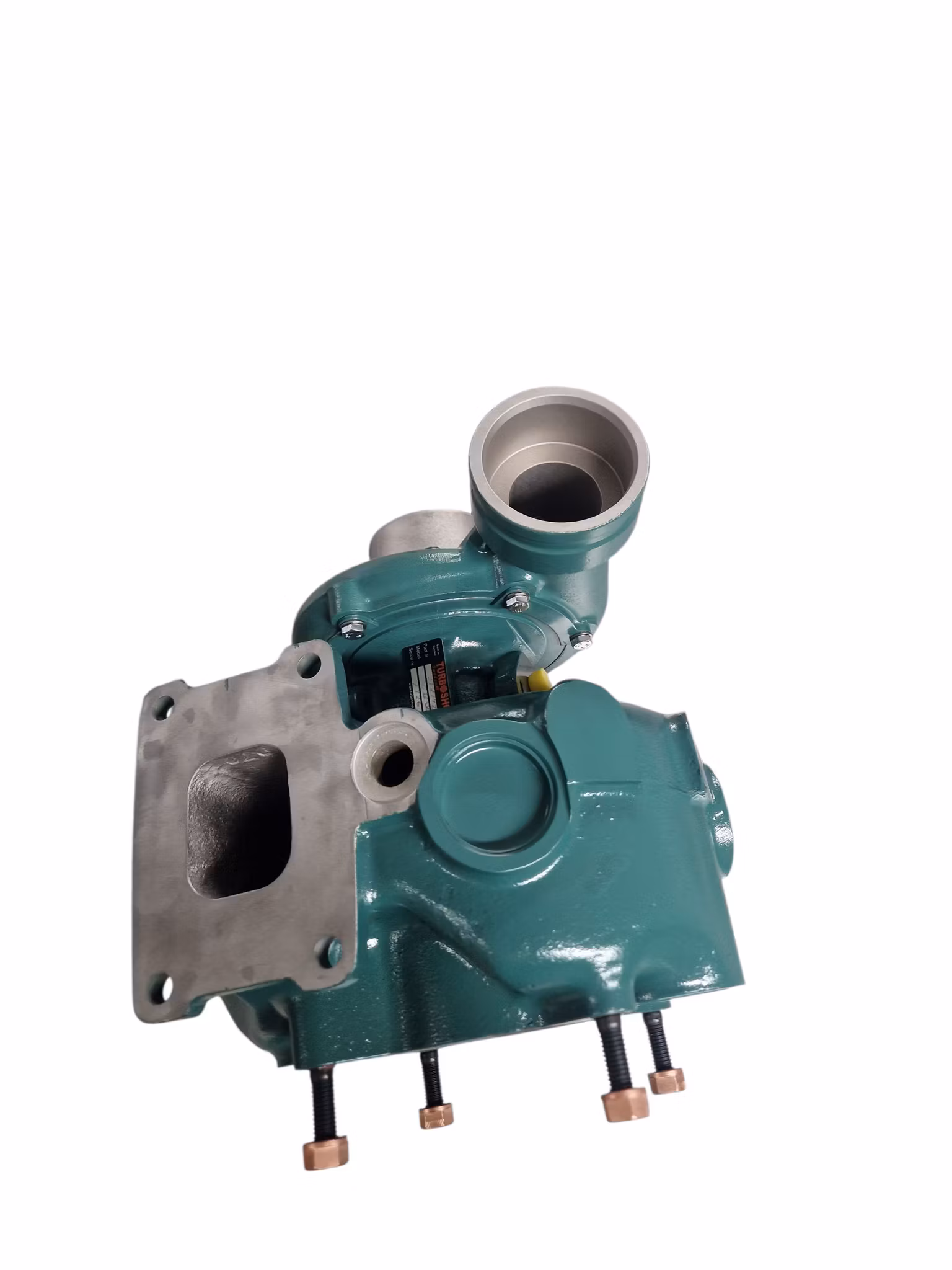

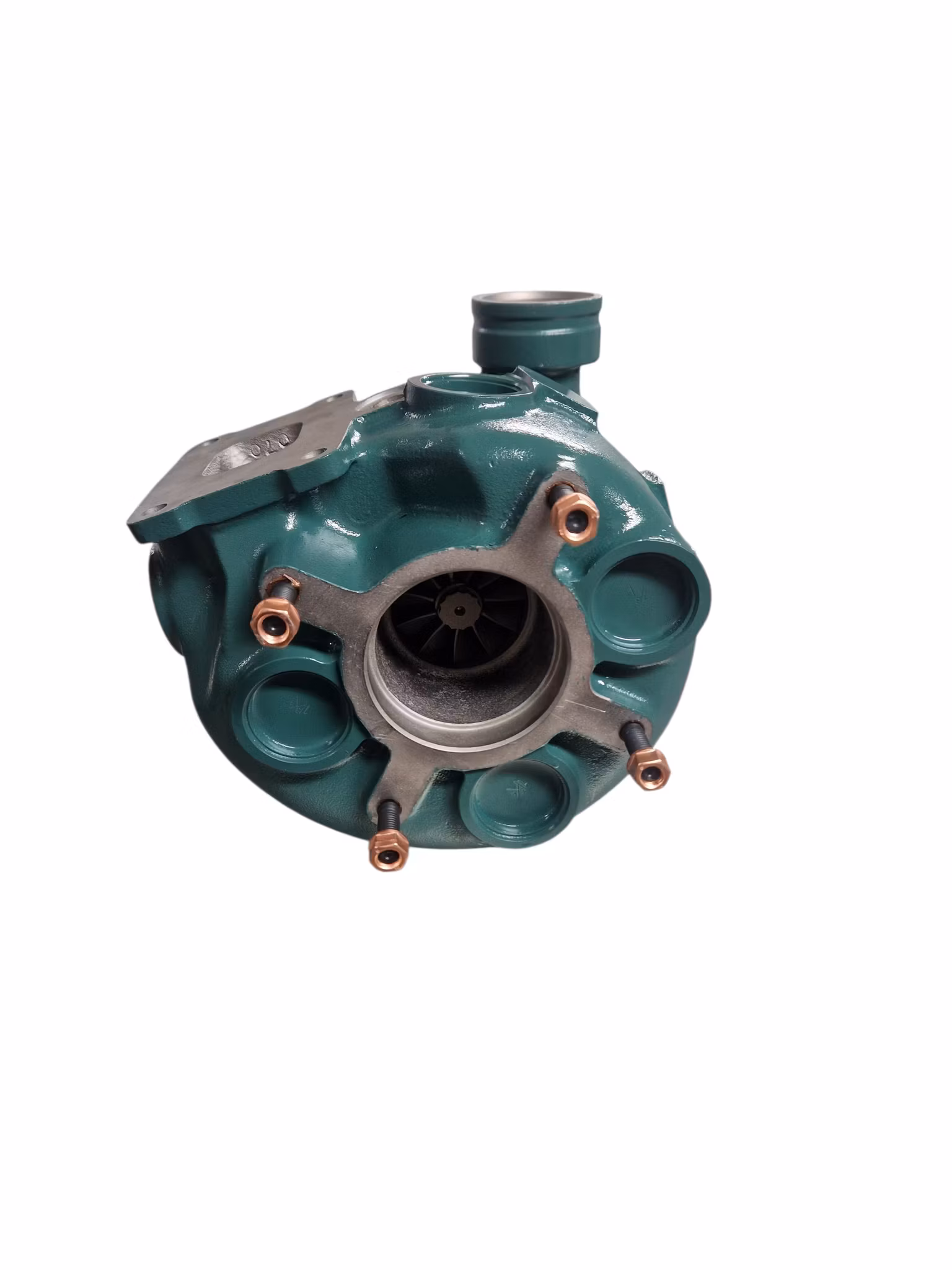

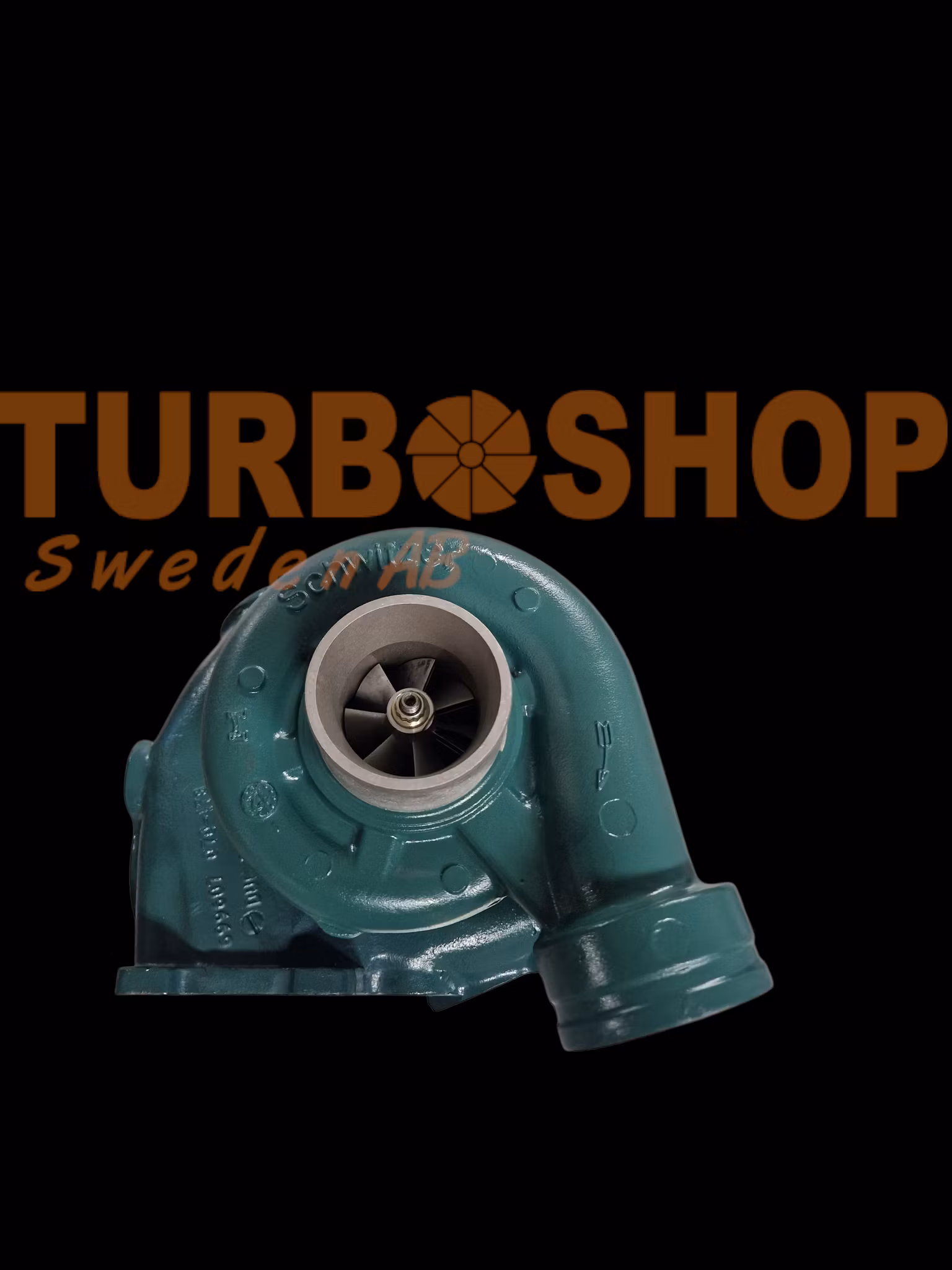

318142 Schwitzer S2BW - Renovering utavoriginalturbo - OEM : 3802175 , 888787
- Renovering originalturbo utav erfarna turbotekniker i vår egna moderna turboverkstad.
- leveranstid efter inkommen turbo normalt sett 1-3 arbetsdagar.
Turbonummer / Originalnummer / Turbofakta :
| Part Number | 318142 |
| Previous versions | 317716 |
| OE number | 04229685KZ, 888787, 4229685KZ , 3802175, 888787 |
| Year | 2000-03 |
| Description | Marine Generator |
| CHRA | 314002 (314002R) $652.12 |
| Turbo Model | S2BW |
| Engine | BF6M1013C |
| Displacement | 7.15L, 7150 ccm |
| KW | 163/174/211/218 |
| Fuel | Diesel |
| Angle α (compressor housing) | 343° |
| Angle β (turbine housing) | 90º |
| Bearing Housing | 312485 (Oil Cooled) $323.79 |
| Turbine Wheel | 313819 (Ind. 64.5 mm, Exd. 74.2 mm, Trm 10.7, 11 Blades) $442.51 |
| Comp. Wheel | 311948 (Ind. 50.8 mm, Exd. 76.2 mm, Trm 14.4, 6+6 Blades, Superback) $152.71 |
| Back plate | 197340 $48.66 |
| Heat shield Number | 194149 (2030016078) $18.21 |
| Repair Kit | 318381 (318378)(1252-212-750, 5000030002) $97.20 NEW IN STOCK |
| Turbine Housing (Water Cooled) | 317671 |
| Compressor Cover | 318278 |
| Gasket (turbine inlet) | 4409039-0000 (312617, 2405022, 7C7431) $13.52 |
| Gasket (turbine outlet) | 210245 (Inox Steel) $14.48 |
| Gasket oil inlet | 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) $4.48 |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32 |
| Gasket Kit | 215137 (2090505007) |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Applications
2000-03 Deutz Marine, Gen Set with BF6M1013C Engine
2000-03 Volvo Marine, Gen Set with BF6M1013C Engine
