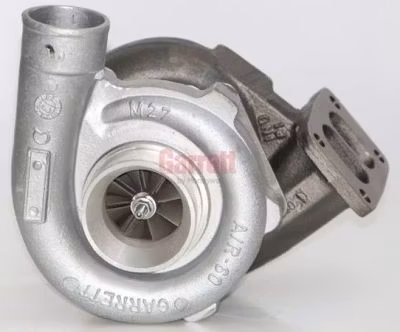

409840-5005S Garrett TO4B29 Fabriksny originalturbo TD70G

  • 910,67 €

409840-5005S Garrett TO4B29 Fabriksny originalturbo TD70G- Fabriksny originalturbo ifrån tillverkaren Garrett.- 3 års garanti.- Monteringssats ingår vid köp uta

I lager.
Varenummer: 409840-5005S
Del

409840-5005S Garrett TO4B29 Fabriksny originalturbo TD70G

- Fabriksny originalturbo ifrån tillverkaren Garrett.

- 3 års garanti.

- Monteringssats ingår vid köp utav denna turbo online

Turbonummer / ersättningsnummer som denna turbo går bra att ersätta :

310183 3523646 3523647 409840-5002S 409840-5003S 409840-5004S 409840-5005S 409840-5006S 409840-5007S 409840-5008S 409840-5010S 409840-5012S 466742-5001S 466742-5002S 466742-5003S 466742-5004S 466742-5015S

Turbonummer / Originalnummer / ersättningsnummer :

Part Number
409840-5005S
Previous Version
 409840-0005, 409840-0006, 409840-0007, 409840-0008, 409840-0009
OE number
 466730
Description
 Industrial Volvo-TruckTD70G F7   Bus  B57
CHRA
408105-0111  $633.99
Turbo Model
 T04B29
Engine
 TD70G
Angle α (compressor housing)
 315º
Angle β (turbine housing)
 325º
Bearing Housing
430027-0051
Turbine Wheel
451309-0003
Comp. Wheel
409179-0018
Back plate
408045-0051
Heat shield Number
409299-0001
Repair Kit
468100-0000 $69.60
Turbine Housing
408258-0042
Compressor Cover
408566-0008
Turbine Housing AR
1.00
Gasket (turbine inlet)
409039-0000
Gasket (turbine outlet)
210226
Gasket oil inlet
210023
Gasket (oil outlet)
210021
Associated Numbers
466730/409840-0005
NOTE
466730/409840-0005 Complete replacement turbo. Internal parts not Interchangeable.
Manufacturer
Honeywell-Garrett

4035692

Applications

Volvo Industrial Generator TD70G
