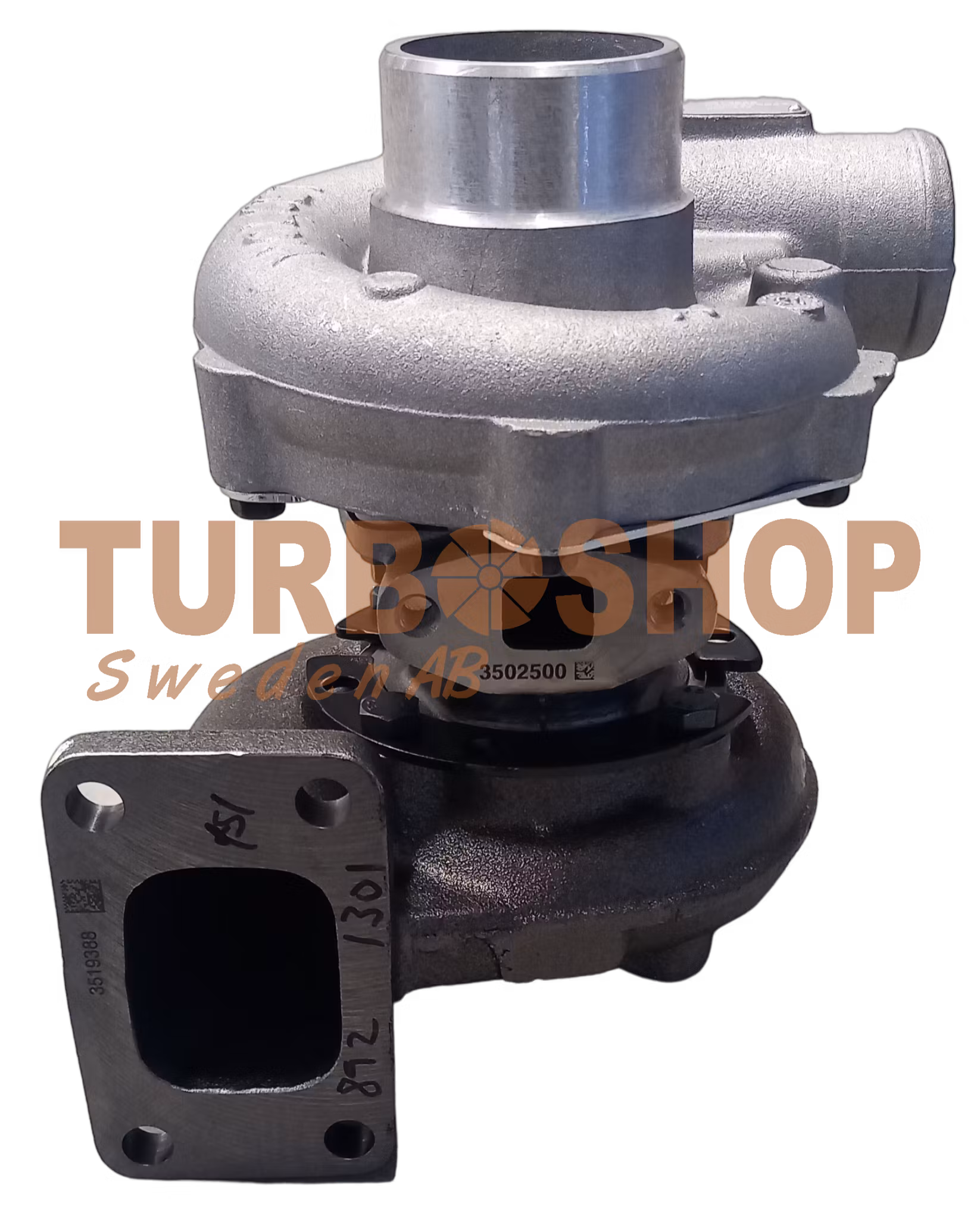

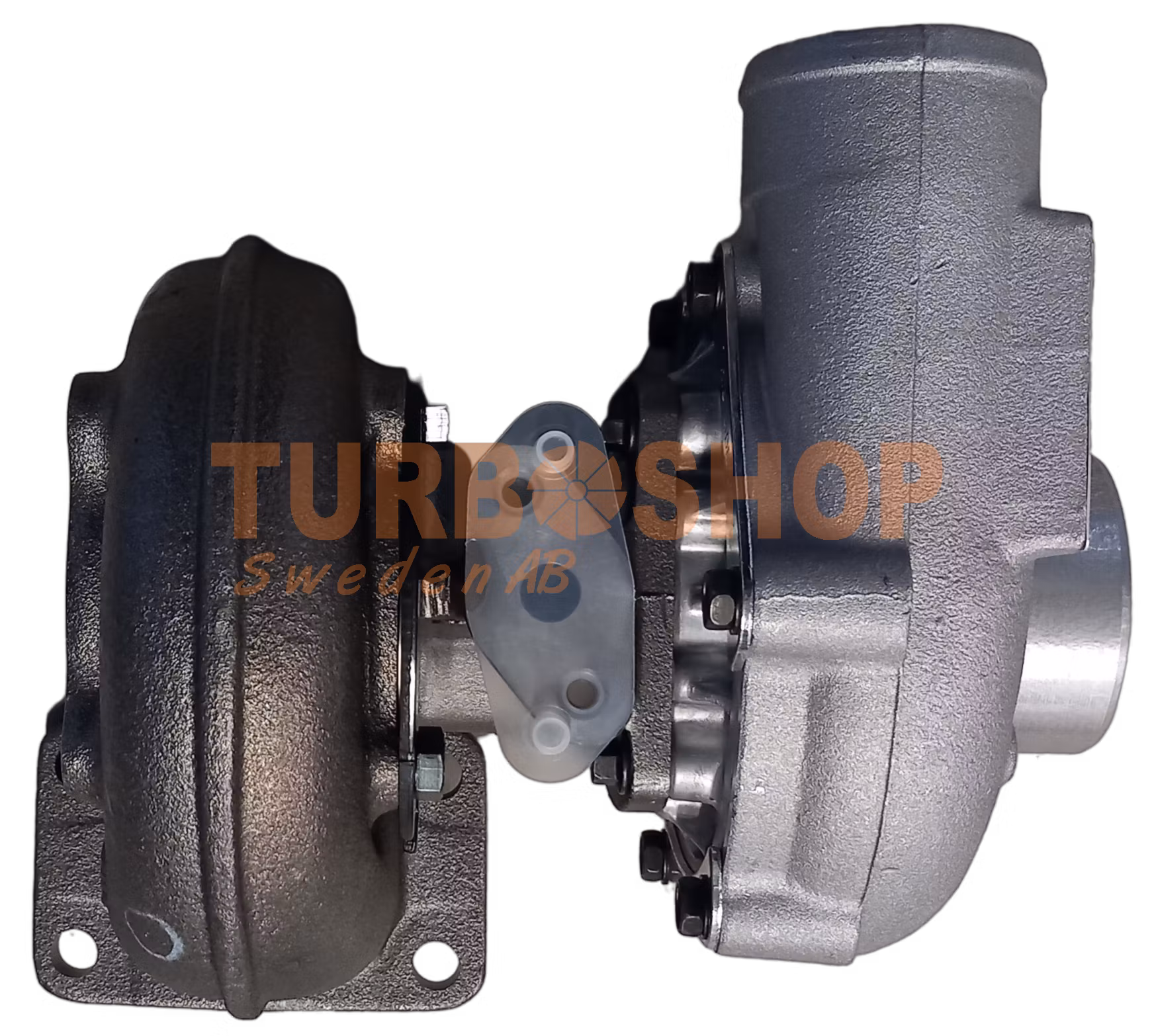

4033644H Holset H1D fabriksny original turbo.

  • 956,23 €

4033644H Holset H1D fabriksny original turbo. Denna turbo säljs som fabriksny utan gamla turbon i retur.- Detta är en fabriksny originalturbo ifrån Holset.

I lager.
Lagersaldo: 3
Varenummer: 4033644H
Del

4033644H Holset H1D fabriksny original turbo.

Denna turbo säljs som fabriksny utan gamla turbon i retur.

- Detta är en fabriksny originalturbo ifrån Holset.

- 3 års garanti.

Fabriksny med gamla turbon i retur finns nedan att köpa för 1500 inkl moms billigare.

Turbonummer / Originalnummer / Turbofakta  :

Part Number4033644H
Previous Part Number311219 3519067
OE number836431219, 836539402, 8364-31219, 8365-39402
Year1985-01
DescriptionTractor, Various
Manufacturer Part Number311219, 3519067,311421
CHRA311423 (3520901)
Turbo ModelS2A, H1D
Engine309DS4, 311DS5, 311DS6
Angle α (compressor housing217°
Angle β (turbine housing)55°
Engine ManufacturerValmet (SISU Diesel)
Bearing Housing194230
Turbine Wheel3504106H Inducer: 65mm Exducer: 55mm
Comp. Wheel3518202H Inducer: 37mm Exducer: 65mm
Back plate197340
Heat shield Number193975
Repair Kit318377/4027309
Turbine Housing311392
Compressor Cover311390
NOTEComplete replacement turbo. Internal parts not interchangeable.
Replaced By4033644H
ManufacturerBorg Warner - 3K - Schwitzer


Applications


1985-01 Valmet (Sisu Diesel) Tractor Agricultural with 309DS4, 311DS5, 311DS6

1985-01  Valmet Various with 309DS4, 311DS5, 311DS6 Engine
