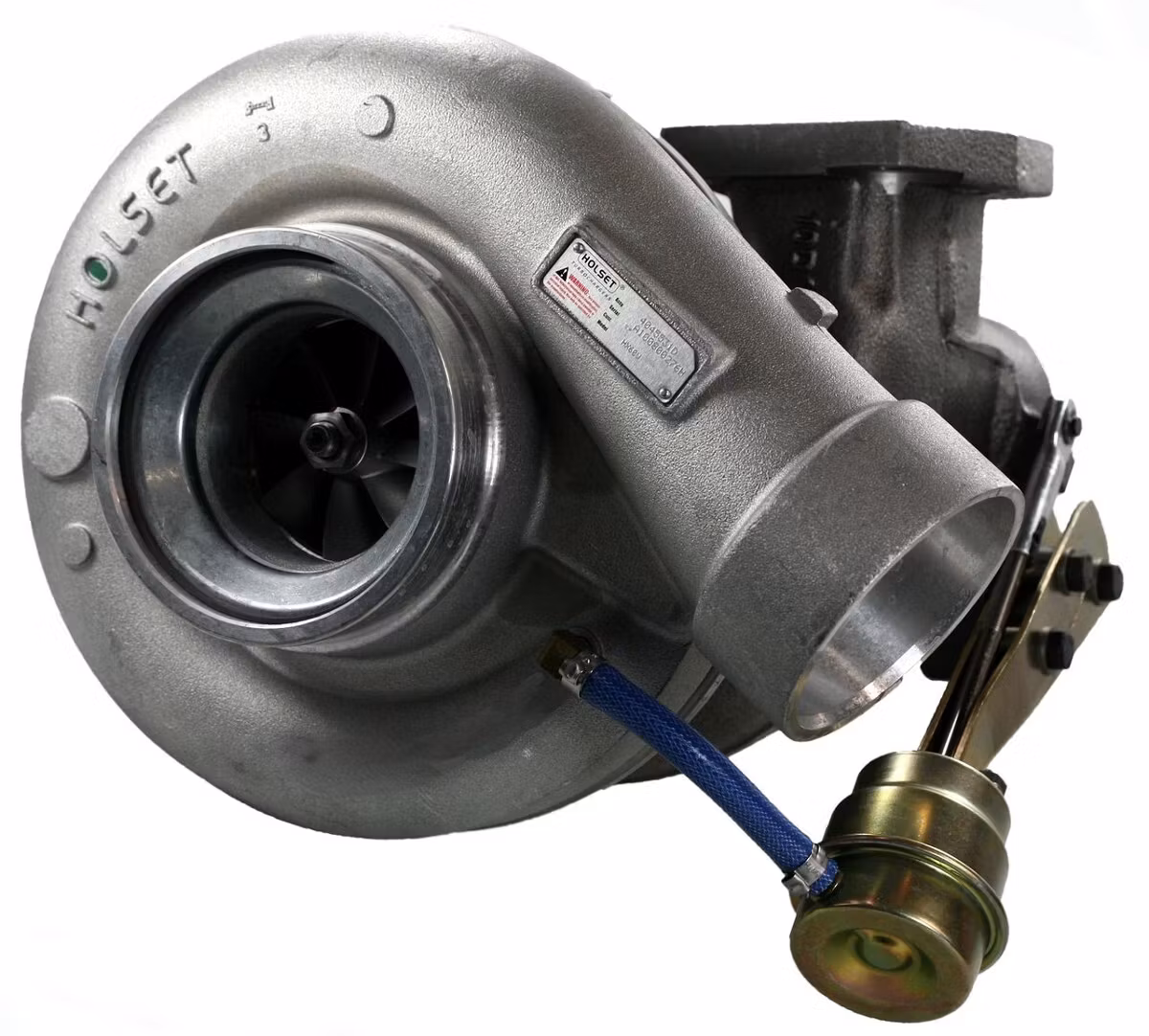

4045531 Holset HX60W - Fabriksny originalturbo

  • $2,121.59

4045531 Holset HX60W - Fabriksny originalturbo- 3 års garanti.- Fabriksny originalturbo.Turbonummer / Originalnummer / Turbofakta : Part Number4045531-DPre

I lager.
Varenummer: 3491
Del

4045531 Holset HX60W - Fabriksny originalturbo

- 3 års garanti.

- Fabriksny originalturbo.


Turbonummer / Originalnummer / Turbofakta :

Part Number4045531-D
Previous Version4045533, 3594549-D,  4045531, 3591225, 3594549, 4045531, 4045533, 4045533RS, 3594550
Regenerated3594549, 4031128, 4031128H 1422955
OE number 574370, 1446732, 1473044
DescriptionScania 164 DC16.01, Truck Series 4
Manufacturer Part Number3594550, 3591226, 4045533, 4045533RS
CHRA4027257 (1000020155) $550.00 NEW IN STOCK
Turbo Model HX60W-0988K/AV27LA1A  , HX60W
Application 164
EngineDC16-01, DC16-01 Euro-4, 574370
Engine Manufacturer Scania
Displacement16.0L,  15600 ccm, V8 Cylinders
FuelDiesel
KW 420/580 HP
Source Reference1446732
Lock nut,turbine shaft3519535
Angle α (compressor housing)159°
Angle β (turbine housing)67°
Bearing Housing3536009 (Oil Cooled)(1900011279B) $236.60 NEW IN STOCK
Turbine Wheel3532198 (3532198H, 353219800)(Ind. 76. mm, Exd. 109. mm, Trim 49, 11 Blades)(1100016368) $245.70 NEW IN STOCK
Comp. Wheel3531538 (Ind. 76. mm, Exd. 109. mm, Trm 17.11, 8+8 Blades, Superback)(1200016513) $185.31 NEW IN STOCK
Back plate 3531917 (1800016077, 1250403300) $37.06 NEW IN STOCK
Heat shield Number3519155 (3758538, 18373, 351915500)(2030016126) $15.58 NEW IN STOCK
Repair Kit4027881 (3545345, 3580568, 4027880)(1153060750, 5000020019) $125.00 NEW IN STOCK
Turbine Housing4045538
Compressor Cover3592352
Gasket (turbine inlet)409038-0000 (132040, 52231083002) $17.21
Gasket (oil outlet)210018 (129120,210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(Paper)(1900000025) $4.38
Replaced by 4045531
ManufacturerHOLSET


Applications

1999-11   Scania 164 DC16.01 Truck Series 4 with 574370 Engine
