CYDY - Fabriksny originalturbo.

  • 1.001,79 €

CYDY - Fabriksny originalturbo.- Fabriksny originalturbo.- 3 års garanti.Turbonummer / Originalnummer / Turbofakta :Part NumberVA420078Previous VersionVB420078,

I lager.
Varenummer: CYDY
Del

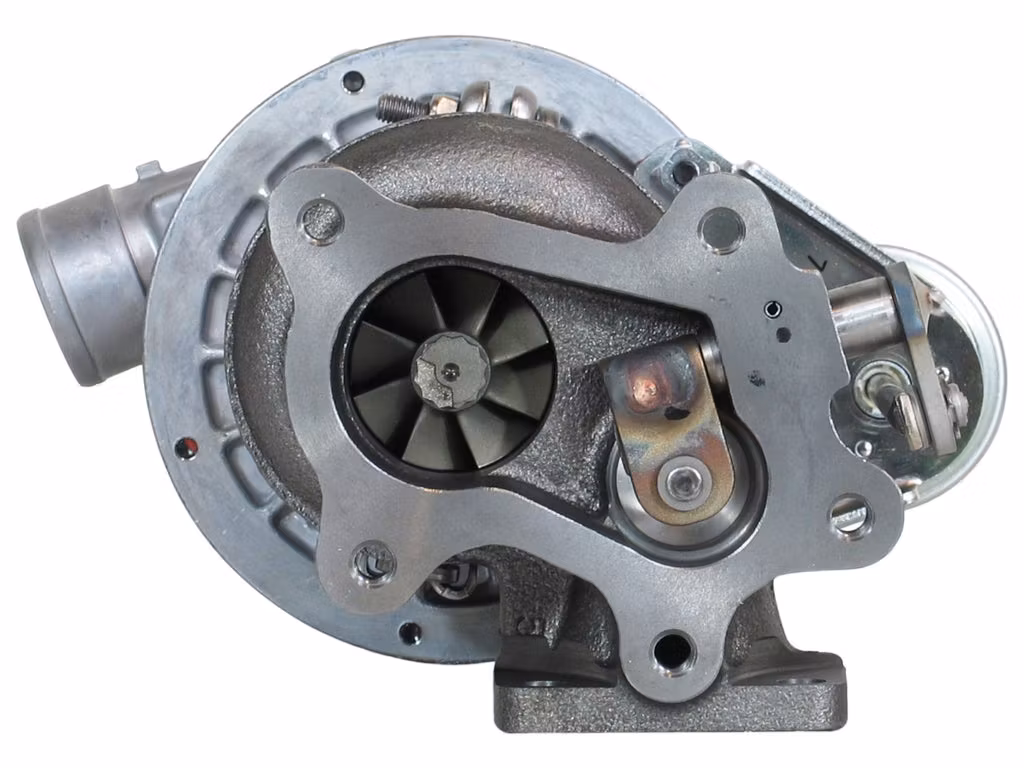

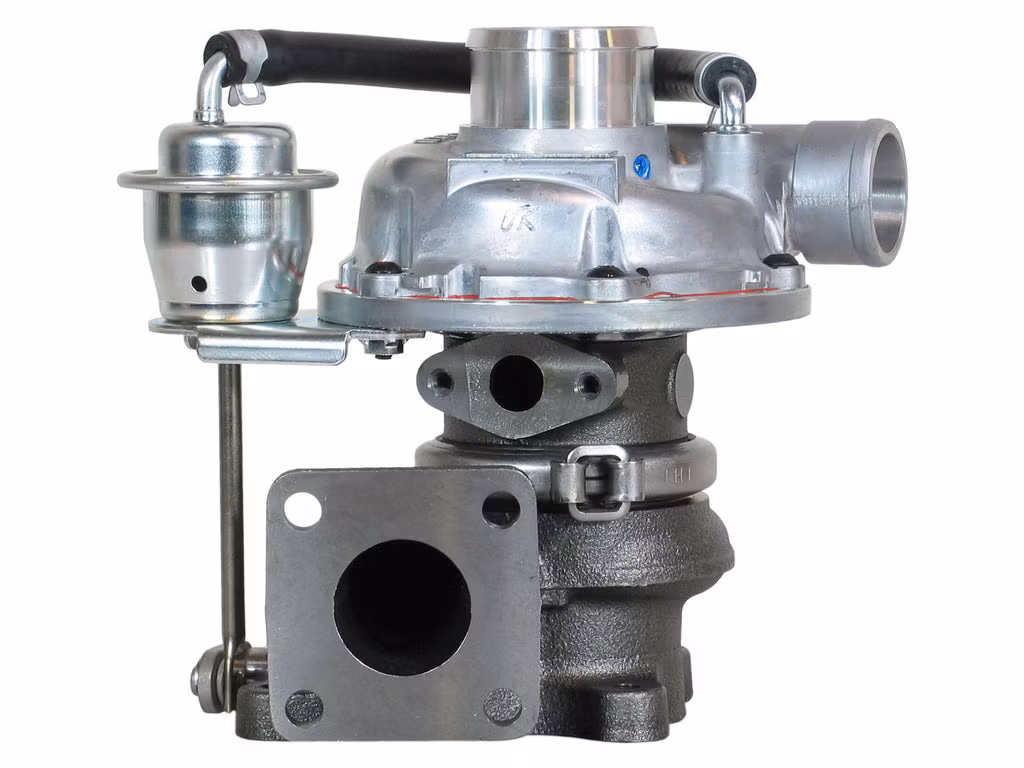

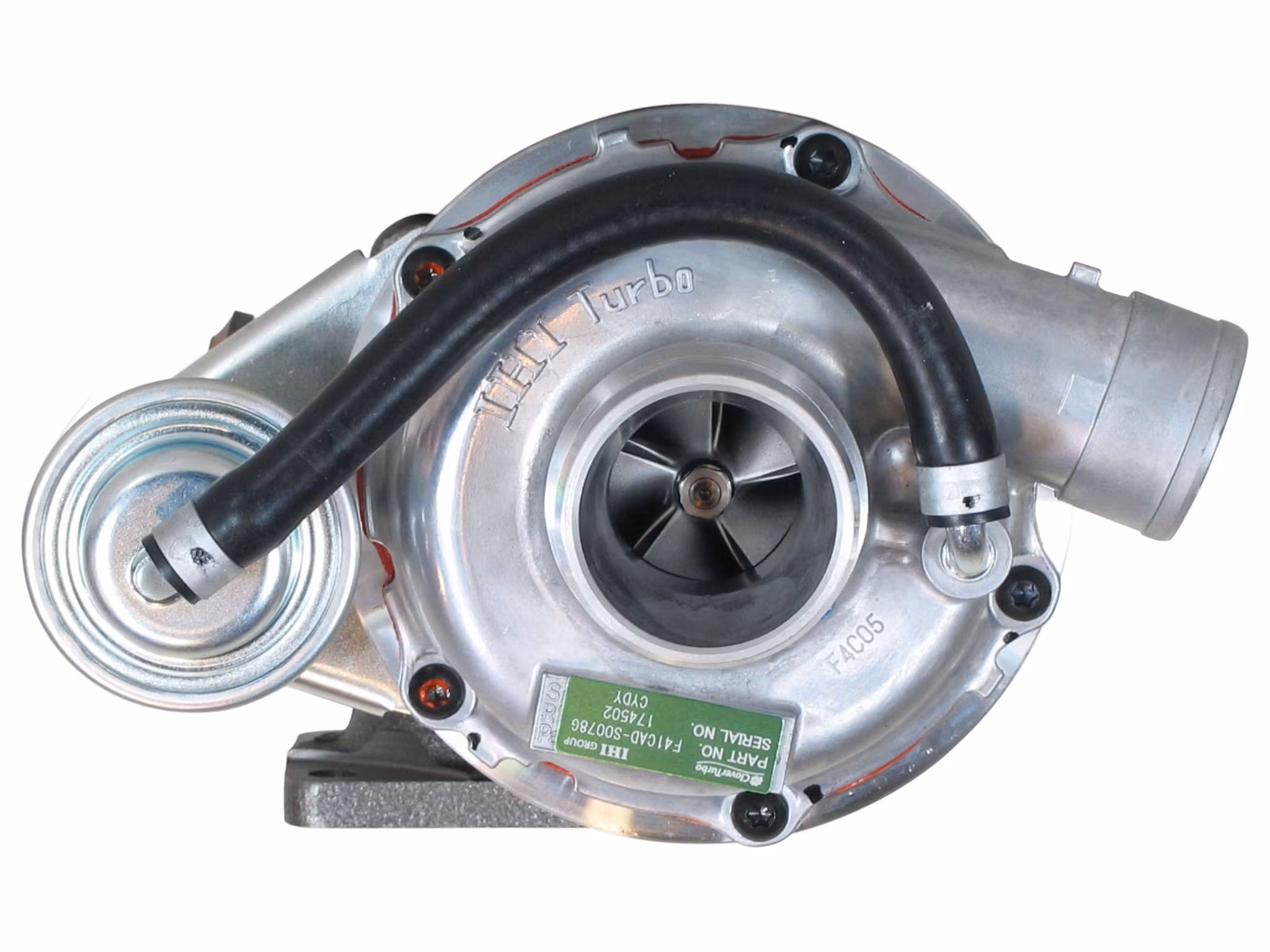

CYDY - Fabriksny originalturbo.

- Fabriksny originalturbo.

- 3 års garanti.


Turbonummer / Originalnummer / Turbofakta :

Part NumberVA420078
Previous VersionVB420078, VC420078, VD420078
OE number129508-18010, 12950818010, 12950-818010, 12950818020, 12950-818020, F41CAD-S0078B,F41CAD-S0078G, F41CADS0078B, F41CADS0078G
V-Spec.CYDY, CYDY 1311
DescriptionEarth Moving, Gen Set, Marine
CHRA$546.76
Turbo ModelRHF4-64006P12NHBRL323CAZ
Engine Model4TNV84T
National Stock Number (NSN)01-537-9970, 015379970, 2950-01-537-9970, 2950015379970
Displacement1.469L, 14960 ccm, 4 Cylinder, Diesel,Oil Cooled
KW39 HP
Angle α (compressor housing)190º
Angle β (turbine housing)55º
Bearing Housing(Oil Cooled)
Turbine Wheel(Ind. 37.7 mm, Exd. 44.42 mm, 8 Blades)
Comp. Wheel(Ind. 28.65 mm, Exd. 46. mm, 5+5 Blades, Flatback)
Repair Kit$95.34 NEW IN STOCK
Turbine Housing AR12
Gasket129508-18090, 129508-18080
Listed$2,205.48
ManufacturerIHI

Applications

Yanmar Earth Moving with 4TNV84T Engine
