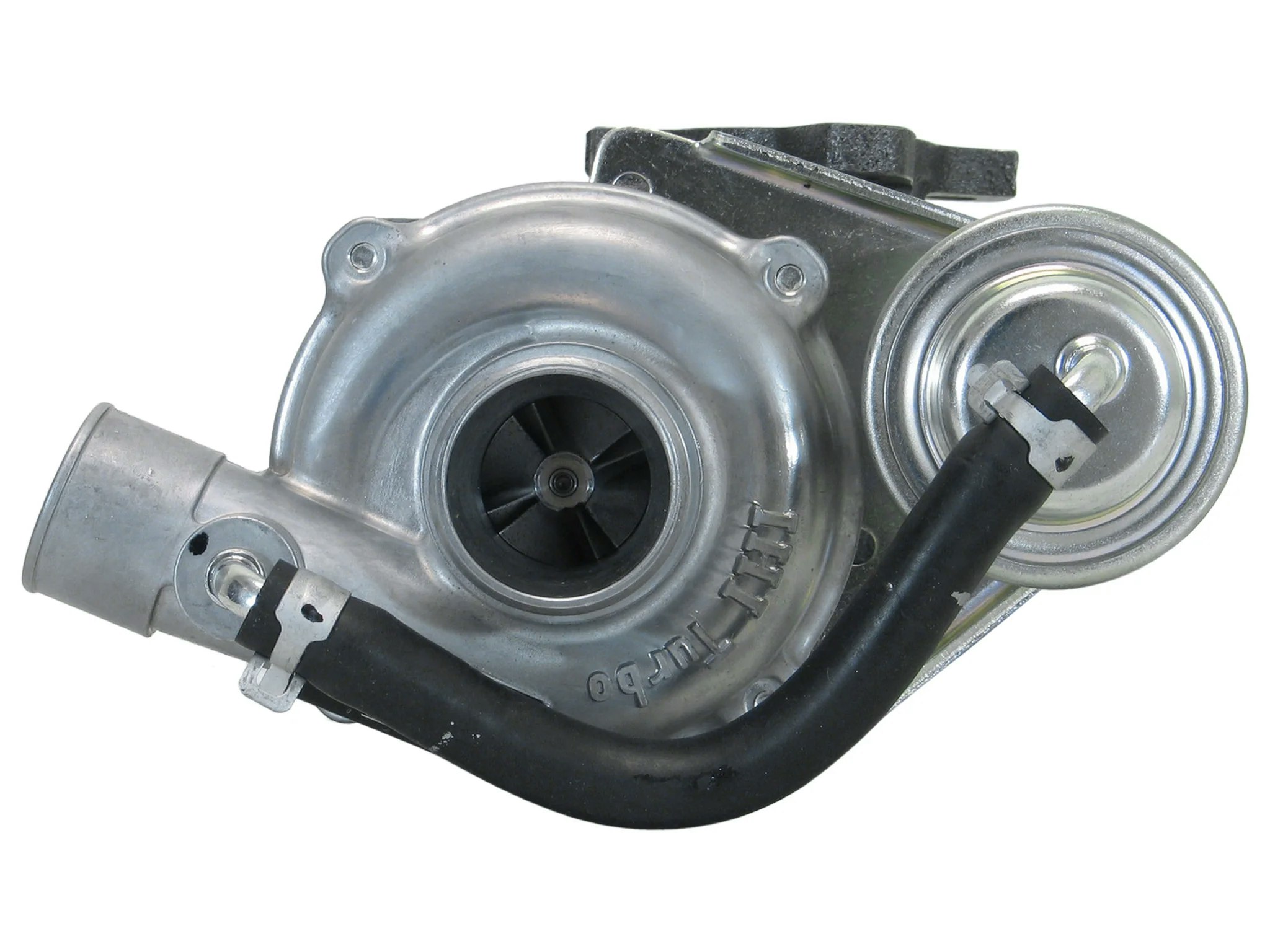

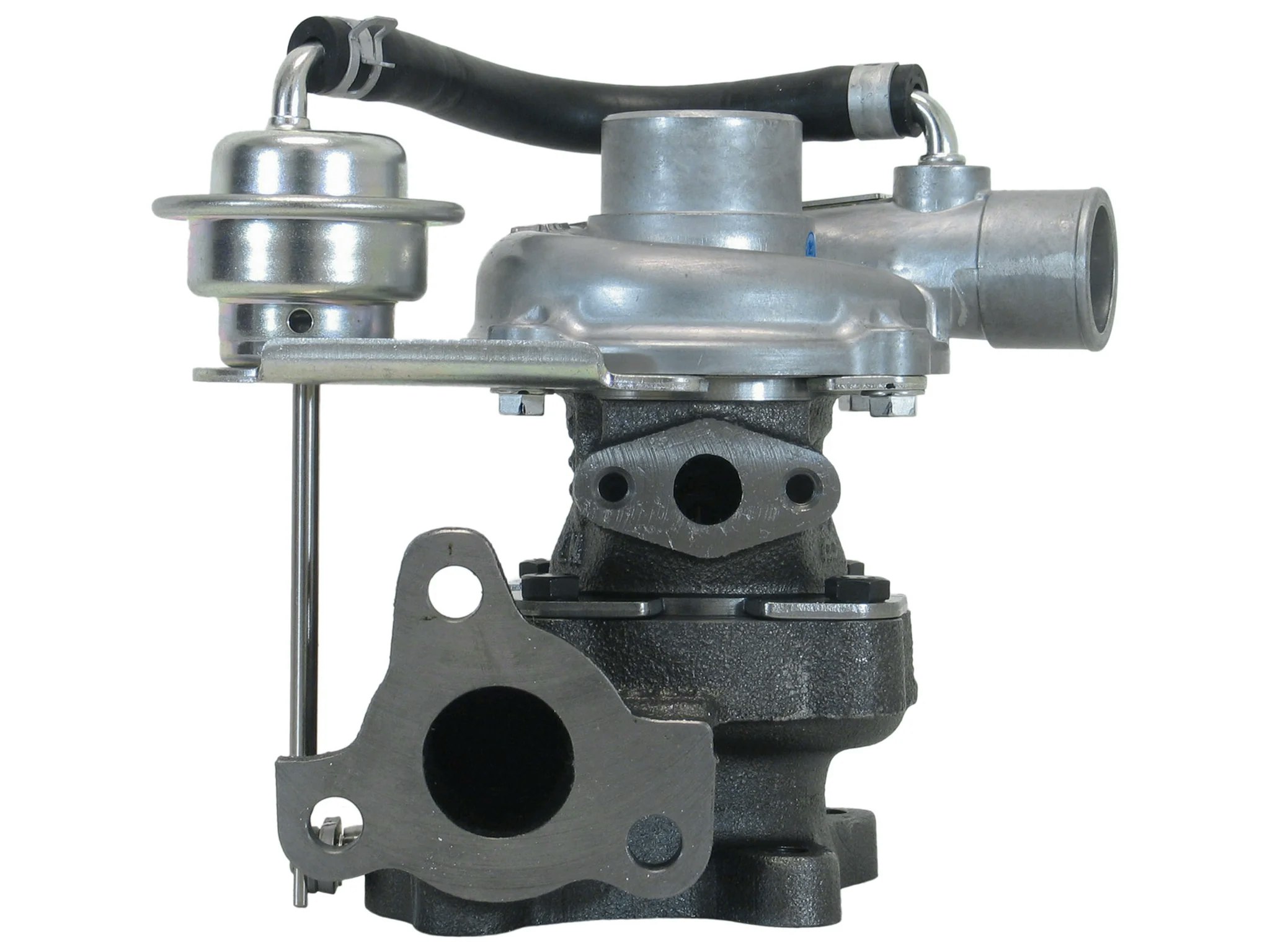

CY62 Fabriksny originalturbo IHI RHB31 Turbo Yanmar Earth Moving 4TN84T Engine 3T-512 VC110033

CY62 Fabriksny originalturbo IHI RHB31 Turbo Yanmar Earth Moving 4TN84T Engine 3T-512 VC110033

 ( Beställningsvara 2-3 dagars levtid )

Turbonummer / Originalnummer / Turbofakta :

Part Number: VC110033

Short Spec.: CY62

Interchangeable Number: B31CAD-S0033B, B31CAD-S0033G, VA110033

OEM Number: 12913718010, 129137-18010, 129403-18050, 12940318050, 3T-512

Turbo Model: RHB31, RHB31-50001P9NFBRS255AZ

Manufacturer: IHI Turbo - CloverTurbo

Engine: 3TN84TL-R2B, 4TN84T

Angle α (Compressor Housing): 180°

Angle β (Turbine Housing): 110°

Actuator: NH980640

Back Plate: NB133011 (2445104)

Bearing Housing: NB133339

CHRA: NZ852836 (NZ852215, NZ870544)

Compressor Cover: NB134608

Compressor Wheel: NB135102 (Ind. 24.8 mm, Exd. 35.5 mm, 5+5 Blades)

Gasket (Oil Inlet): (1204055)(Paper)

Gasket (Oil Outlet): 210284 (2445107)(Paper)

Gasket (Turbine Inlet): 210826 (2445280)(Inox Steel)

Gasket (Turbine Outlet): 210827 (2445185)(Inox Steel)

Heat Shield: NB137143

Repair Kit: NB139837 (NB139838)(2445058, 2445147)

Turbine Housing: NB139917

Turbine Wheel: NB131180

Application:

Yanmar Earth Moving with 4TN84T Engine
