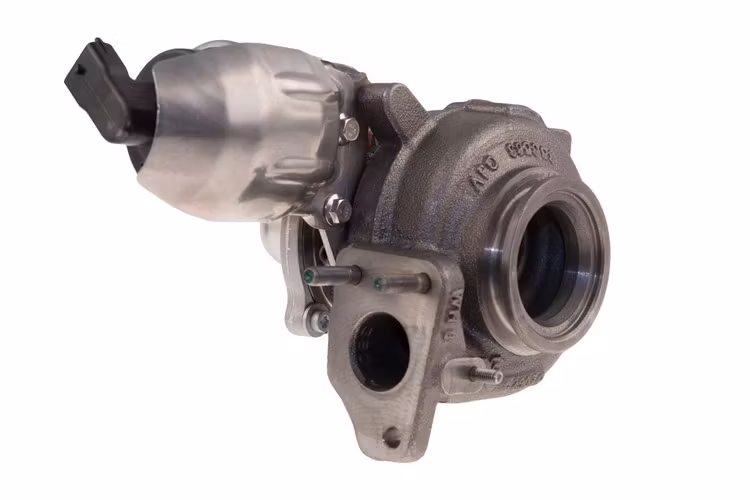

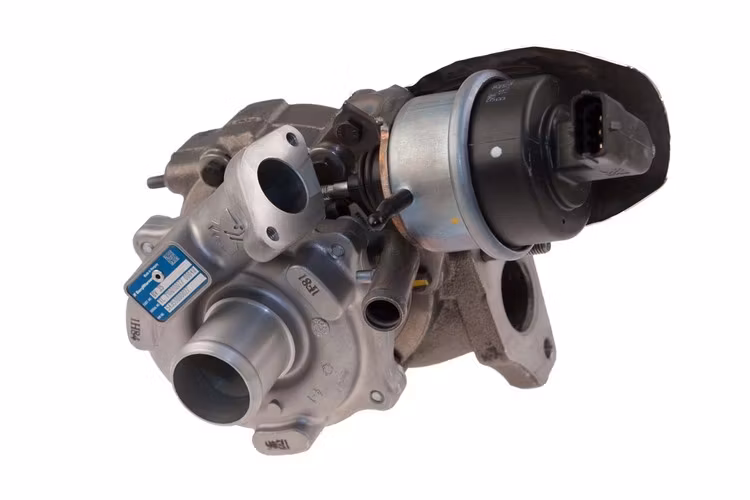

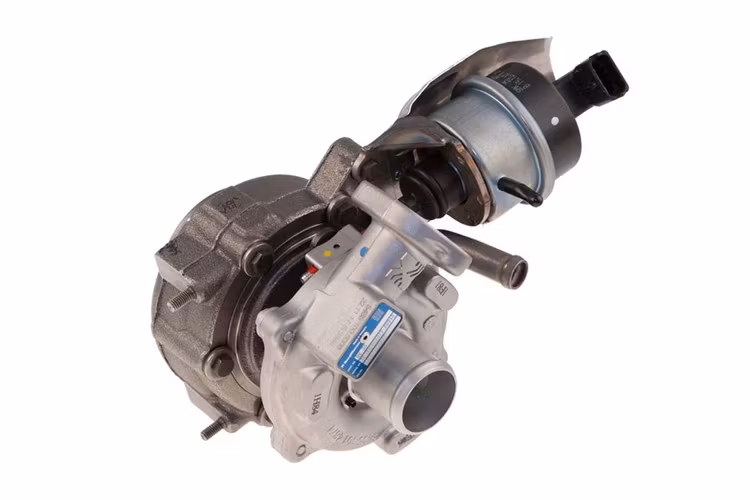

54359880027 BorgWarner fabriksny original turbo !
- Fabriksny originalturbo.
- Monteringssats ingår vid köp utav denna turbo online.
Originalnummer : 55212341, 55216672, 55221160, 55225439, 860164 , 71794959
Turbonummer / Originalnummer / Turbofakta :
| Part Number | 54359880027 |
| Previous Version | 5435-988-0027, 5435-998-0027, 54359980027, 5435 988 0027, 5435-970-0027 |
| OE number | 55212341, 55216672, 55221160, 55225439, 860164 |
| Year | 2007-16 |
| Description | Lancia Musa, Fiat Idea, Punto, Fiorino, Doblò, Alfa Romeo Mito, Opel/Vauxhall, Astra, Corsa, Meriva |
| Manufacturer Part Number | 54359700027, 5435-970-0027 |
| CHRA | 54357100515 (5435-710-0515)(1303035908, 1000030196T, 20000198500) |
| Turbo Model | K35-027 - BV35-027, BV35-1573DBK380.18OVBXC |
| Engine Manufacturer | Fiat |
| Displacement | 1.25L, 1248 ccm |
| Engine | A 13 DTE, Z 13 DTR/Z 13 DTE/A 13 DTE, 199 B1.000, 1.3 SJTD |
| KW | 70/95 |
| RPM Max | 4000 |
| Fuel | Diesel |
| Angle α (compressor housing) | 80° |
| Angle β (turbine housing) | 345° |
| Bearing Housing | (Oil Cooled)(1900011246B, 203020009) |
| Turbine Wheel | 54351208501 (Ind. 34.72 mm, Exd. 31.01 mm, 9 Blades)(1100016233C, 201010005) |
| Comp. Wheel | 54351232016 (Ind. 27. mm, Exd. 38.98 mm, 5+5 Blades, Superback)(1200016296T, 202990040) |
| Back plate | 54351523001 (54351523003)(1800016003, 204010002) |
| Heat shield Number | (2030016130, 206350203) |
| Repair Kit | (5000040040 |
| Nozzle Ring | (3000016054, 205060001) |
| Actuator | (2063050651) |
| Turbine Housing AR | VTG |
| Gasket (turbine inlet) | 210673 (Inox Steel) |
| Gasket (outlet) | 210870 (Stainless Steel) |
| Manufacturer | Borg Warner - |
