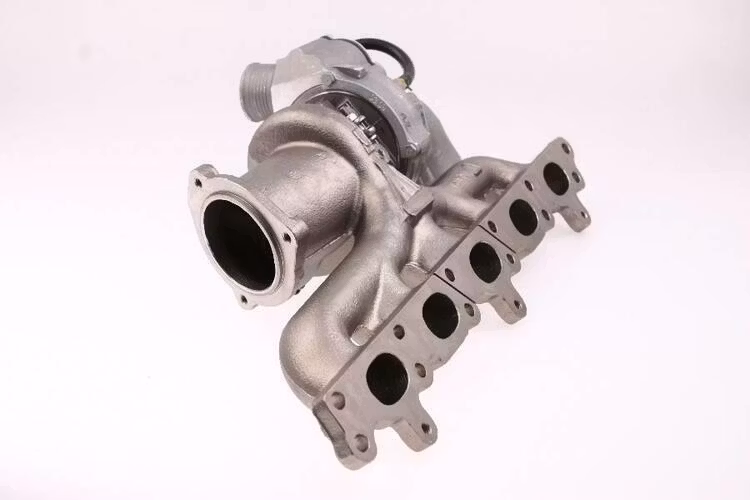

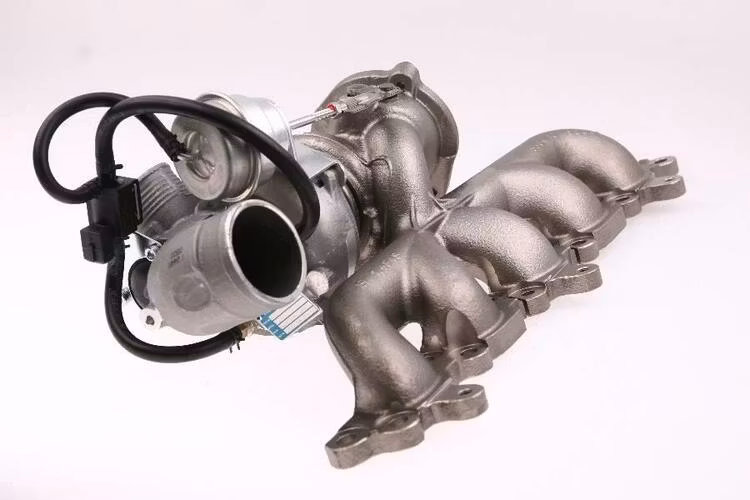

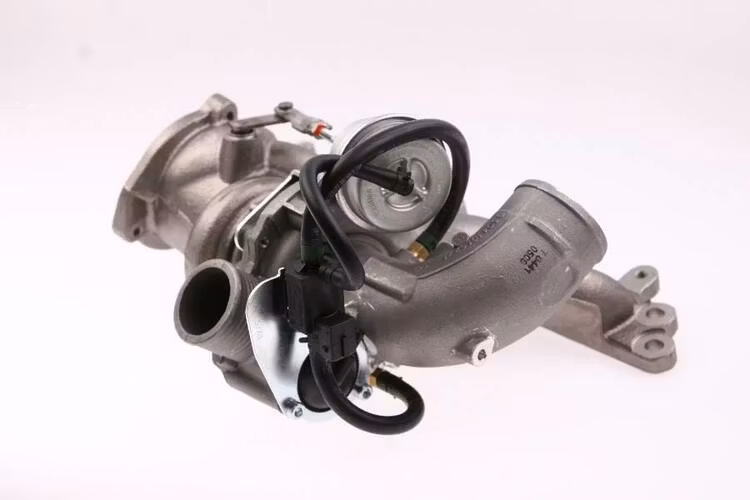

53049880033 / 53049700033 2005-2007 Volvo C30, S40, V50, C70 T5 K04 Bytesturbo .

  • 8 495 kr

53049880033 / 53049700033 2005-2007 Volvo C30, S40, V50, C70 T5 K04 Bytesturbo .Packningssats ingår vid köp utav denna bytesturbo.Bytesturbo = Gamla turbon skal

I lager.
Lagersaldo: 1
Artikelnummer: 53049880033BT
Dela

53049880033 / 53049700033 2005-2007 Volvo C30, S40, V50, C70 T5 K04 Bytesturbo .


Packningssats ingår vid köp utav denna bytesturbo.

Bytesturbo = Gamla turbon skall i retur till oss.

Turbo ersättare / Olika kombinationer :

  • 53049880033
  • 5304-988-0033
  • 53049700033
  • 5304-970-0033

Original nummer ifrån Volvo / Ford :

  • 6G9N6K682AA
  • 30650569
  • 30650975
  • 30757112
  • 1388501
  •  8603691

Passar följande motorkoder :

  • B5254T10
  • B5254T11
  • B5254T3
  • B5254T6
  • B5254T7
  • B5254T8
  • HYDA
  • RNC2P25-LT

Turbonummer / Ersättningsnummer / Turbofakta :

Part Number53049980033
Previous Version53049880033, 53049980033, 5304-988-0033, 5304 988 0033
OE number6G9N6K682AA, 30650569, 30650975, 30757112, 8603691
Year2005-07
DescriptionVolvo S40, V50, C30, S40, V50, C70 T5
Manufacturer Part Number53049700033, 5304-988-0033
CHRA53047100513 (5304-710-0513)(1302004913) : Finns nedan att köpa.
Turbo ModelK04-2280DCBAA6.88GCCXM
EngineRNC2P25-LT, B5254T3
Engine ManufacturerFord
Displacement2.5L,  2521 ccm, 5 Cylinders
KW166/162/220/225
RPM Max5000/6000
FuelGas
Angle α (compressor housing)144.5°
Angle β (turbine housing)272°
Bearing Housing (water-cooled)53041500022 (water-cooled) $57.20 NEW IN STOCK
Turbine Wheel53041206506/53041206503/53041206511 (Ind. 50. mm, Exd.  44.4 mm, Trm 46, 12 Blades)(1302004446)
Comp. Wheel53061232003/53061232006 (Ind. 36.8 mm, Exd.  55. mm, Trm 45, 6+6 Blades, Flatback)(1302004401)
Back plate53041515721 (1302003308)
Heat shield Number53041652002 (1302004342)
Repair Kit53037110000/53037110001 (1302003752) : FInns att köpa.
Turbine housing with manifold 53041009503
Compressor Cover53041015211
Turbine Housing AR6
Actuator50035505009/58251104125
Diaphragm59001156313/59001156315/59001156312
NOTEInter-cooler; restricted to Volvo
ManufacturerBorgWarner
ConditionRebuilt
