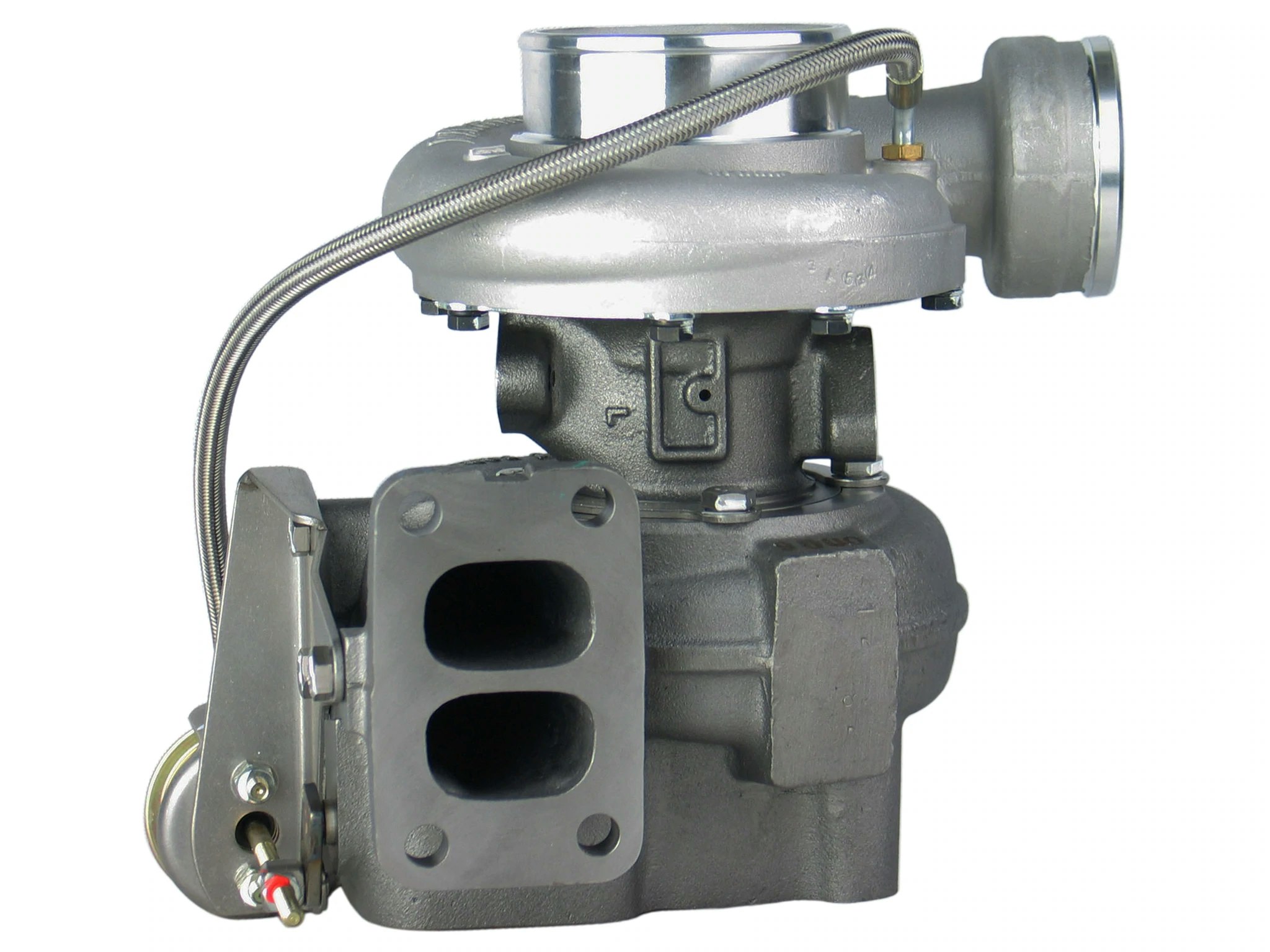

318815 BorgWarner S200G Motor : BF6M1013FC ( Bytesturbo )

  • 9 495 kr

318815 BorgWarner S200G Motor : BF6M1013FC ( Bytesturbo )- Renoverad originalturbo.- 3 års garanti.- Renoverad i vår egen turboverkstad.Packningssats + pinnbult

I lager.
Lagersaldo: 3
Artikelnummer: 318815-BT
Dela

318815 BorgWarner S200G Motor : BF6M1013FC ( Bytesturbo )

- Renoverad originalturbo.

- 3 års garanti.

- Renoverad i vår egen turboverkstad.


Packningssats + pinnbultar medföljer vid köp utav denna bytesturbo.

OEM nummer :04259318,04259318KZ,04285322,04285322KZ,20571676,9020571676

Turbonummer / Ersättningsnummer : 318815,318754,56209880009,56209880001

Turbonummer / Originalnummer / Produktfakta :



Part Number318815
Previous Version5620-197-0001, 5620-988-0001, 56201970001, 56209880001, 318754, 4259318, 4285322 ,56209880009 , 56209700009
OE number04259318, 04259318KZ, 04285322, 04285322KZ, 20571676, 9020571676
Year2004-08
CHRA318911 (1000070067)
DescriptionIndustrial Engine
Turbo ModelS200G-76H24AEFGM0.85DA11
Engine ModelBF6M1013FC
 Manufacturer Part Number 318754, 318815, 4259318, 4285322, 5620-197-0001, 5620-988-0001, 56201970001, 56209880001, 9020571676
Displacement7.15L, 7150 ccm
KW 200/268
RPM Max2300
FuelDiesel
Angle α (compressor housing)95°
Angle β (turbine housing)356°
Bearing Housing 317952 (Oil Cooled)(1900011261B) $168.19 NEW IN STOCK
Turbine Wheel318900 (Ind. 74.5 mm, Exd. 58.3 mm, Trm 9.38, 11 Blades)(1100016396) $395.27 NEW IN STOCK
Comp. Wheel169937 (Ind. 53.1 mm, Exd. 79.8 mm, Trm 5.5, 7+7 Blades, Superback)(1200016588) $162.23 NEW IN STOCK
Back plate 167744 (1253200300, 1800016065)
Heat shield Number 167997 (2030016105, 2030016117)
Repair Kit318383 (1253200750, 5000030021)
Turbine Housing318893
Compressor Cover318762
Actuator318291 (310618)(2061016230)
Settings Waste gate (pressure)1.558-1.627 bar
Settings Waste gate (lift shaft) 0.38 mm
Gasket Kit318419 (318420) $15.55
Gasket (turbine inlet)409039-0000 (210022-0000)(Inox Steel) $13.52
Gasket (turbine outlet)210245 (Inox Steel)
Gasket (oil outlet)210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
ManufacturerBorg Warner - 3K - Schwitzer,  BWTS UK


Bytesturbo = Gamla turbon skall i retur till oss efter bytet.
