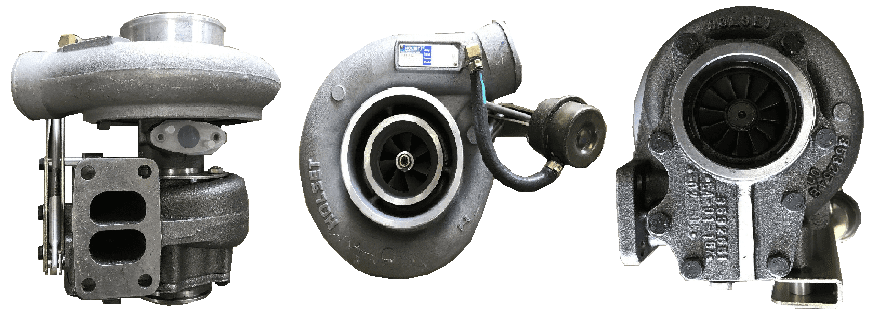

4033381H Holset HX35W fabriksny turbo OEM : 8034366

  • 17 500 kr

4033381H Holset HX35W fabriksny turbo OEM : 8034366Turbonummer / Originalnummer / Turbofakta : Part Number  3599099Previous versions4033381, 4033381H, 4035

I lager.
Artikelnummer: 4033381H
Dela

4033381H Holset HX35W fabriksny turbo OEM : 8034366

Turbonummer / Originalnummer / Turbofakta :

Part Number  3599099
Previous versions4033381, 4033381H, 4035591, 3599099E, 4033381H
OE number 8034366
DescriptionIveco Truck Engine 2 valve engine
CHRA4027864 (4027864H) $300.00 NEW IN STOCK, MADE IN USA
Turbo ModelHX35W-E7735AG/E16XB11,  HX35W
Manufacturer Part Number4035591
Engine Manufacturer Iveco
KW250
FuelDiesel
TrimTAAID
Angle α (compressor housing)90º
Angle β (turbine housing)360º
Bearing Housing4032032 (3599514, 4027443, 4032218)(84.50 mm)(Oil Cooled)(1900011016F)
Turbine Wheel3519336 (3595832)(351933600)(Ind. 70. mm, Exd. 60. mm, Trm 10.82, 12 Blades)(1152301435, 1100016442)
Comp. Wheel3599651 (3532312, 359965100)(Ind. 50. mm, Exd. 78. mm, Trm 9.77, 7+7 Blades, Superback)(1200016661)
Back plate3596448 (1800016009)
Heat shield Number3519302 (351930200)(1152301340)
Repair Kit4032129 (4027448)(1153035751, 2030016031)
Turbine Housing4030732 (4048561)
Compressor Cover3599102
Actuator3599101
Gasket Kit3545575 (1900100057, 500002002)
Gasket cover Plate4044912  (5 Bolt Gasket) (Inox Steel)
ManufacturerHOLSET


Applications


2002-05 Iveco Truck Engine 2V TAA ID
