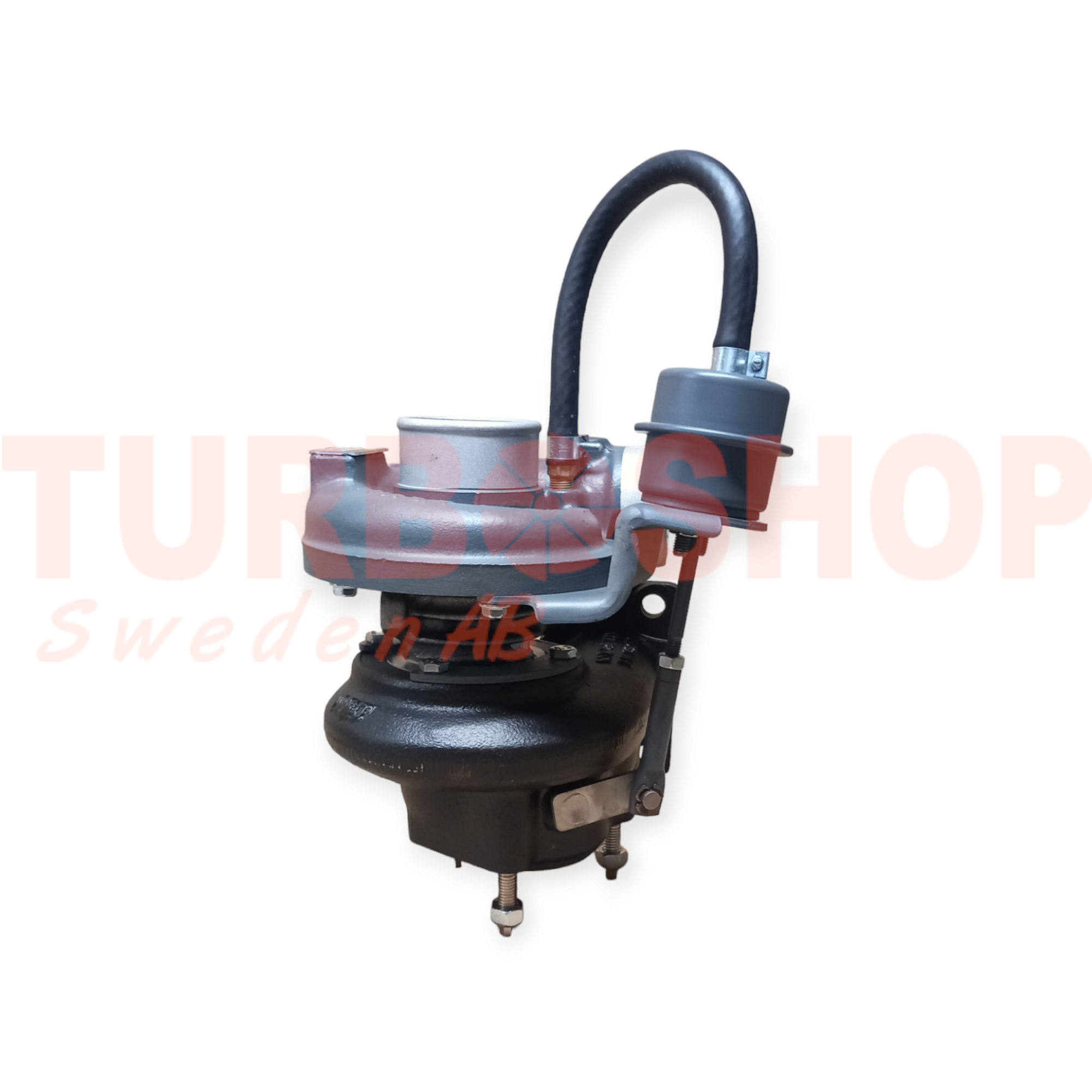

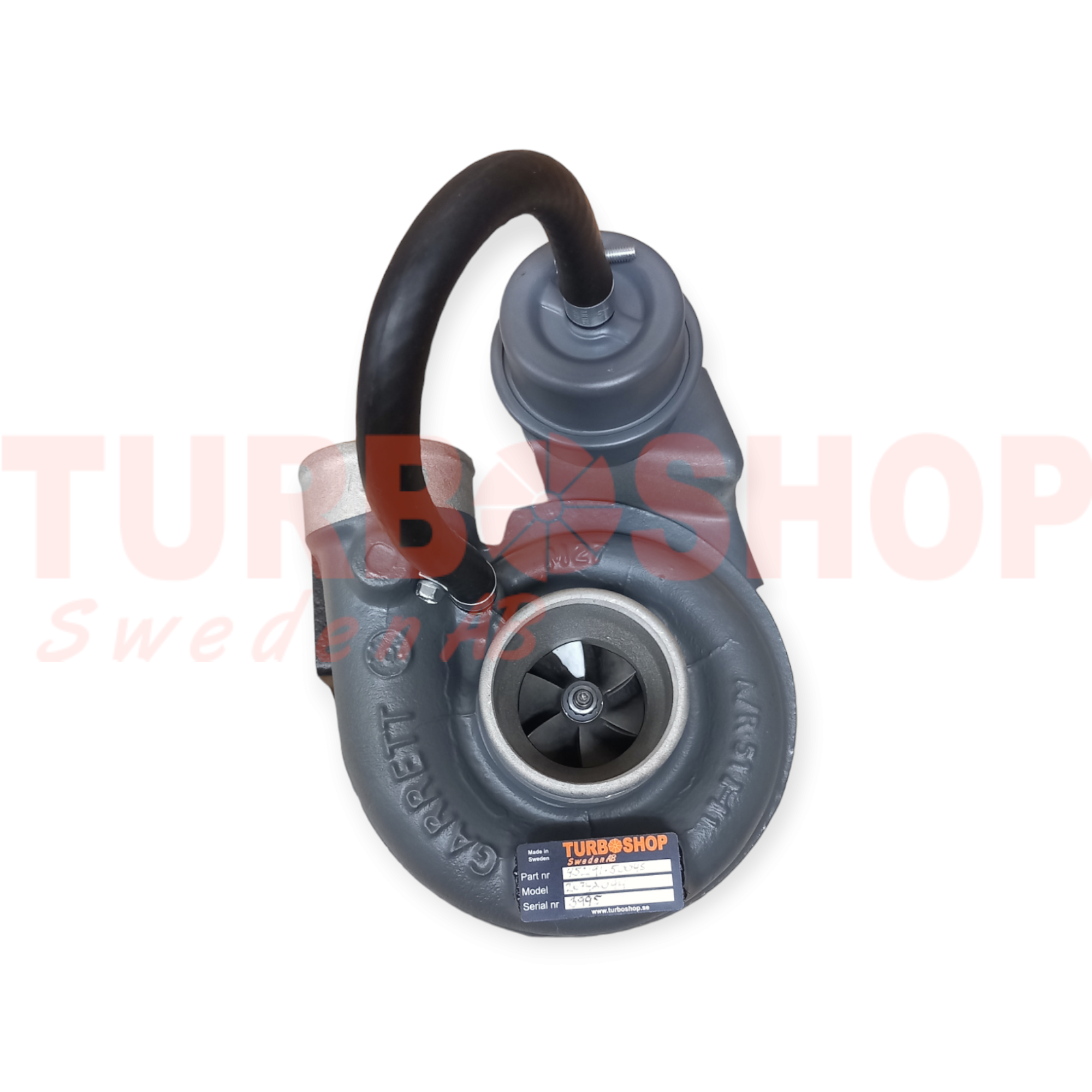

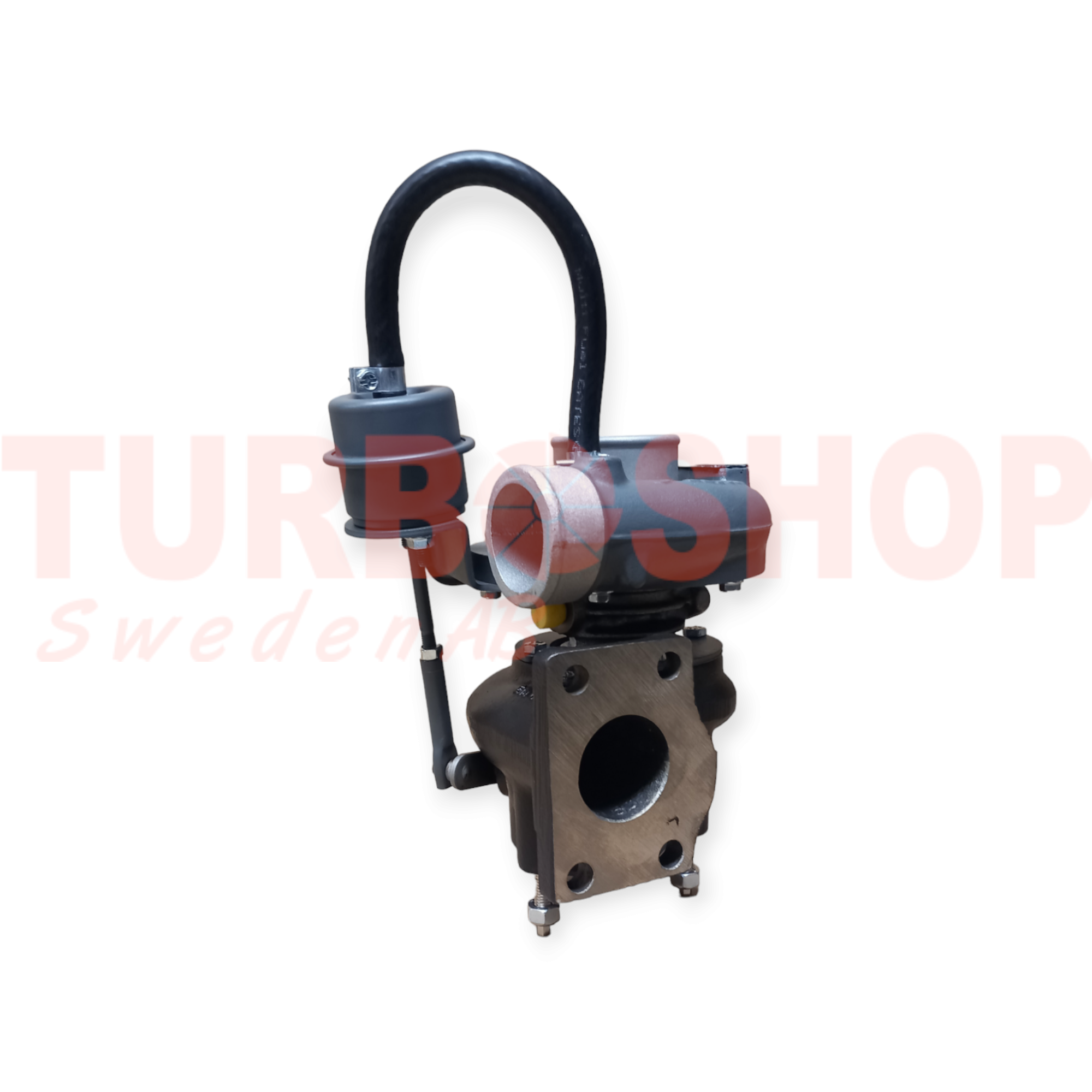

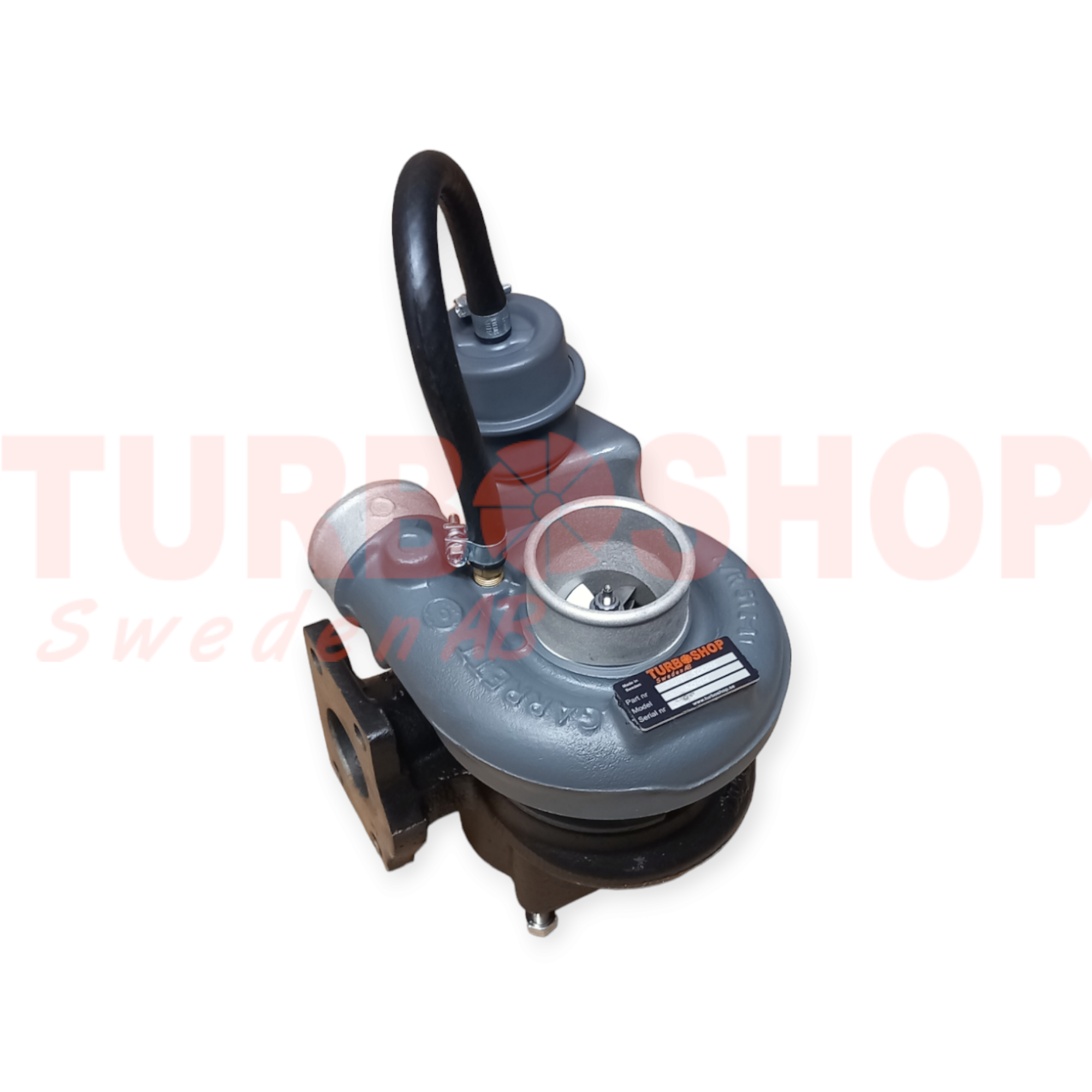

452191-5004S/727264-5004S Perkins industri GT2052S Bytesturbo ! Originalnummer : 2674A374,2674A094

  • 6 995 kr

452191-5004S/727264-5004S Perkins industri GT2052S Bytesturbo ! Originalnummer : 2674A374,2674A094Renoverad bytesturbo endast originaldelar använda.Monteringssa

I lager.
Lagersaldo: 1
Artikelnummer: 452191-5004S-BT
Dela

452191-5004S/727264-5004S Perkins industri GT2052S Bytesturbo ! Originalnummer : 2674A374,2674A094

Renoverad bytesturbo endast originaldelar använda.

Monteringssats ingår.

Vill ni renovera er turbo själv så finns Core / CHRA relaterad nedan.


Originalnummer / Ersättningsnummer : 11703935, 11708594, 11709759, BM-11703935, BM-11708594 2674A374, 2674A094

Turbonummer / Originalnummer / Turbofakta :

Part Number727264-5004S
Previous Version452191-0004, 727264-0005, 727264-0006, 727264-0008, 727264-0010 , 452191-5004S
OE number2674A374, 2674A094
DescriptionIndustrial  Off Highway
CHRA451298-0045 (451298-0024) (1102020440)
Turbo ModelGT2052S
Displacement4000 ccm, 4 Cylinders
KW225 HP
Engine Model  T4.40 EPA Tier 1
Model  96
Fuel Diesel
Angle α (compressor housing)185º
Angle β (turbine housing)105º
Bearing Housing433275-0002 (435793-0002, 713782-0002) (1102015450)(Oil Cooled) $
Turbine Wheel434715-0039 (434715-0007, 434715-0013, 434715-0027) (1102020440) (47.0 mm, Trm 72, A/R 0.50)
Comp. Wheel436131-0003  (436131-0021, 451584-0010, 705878-0017)(Ind. 36.75 mm, Exd. 52. mm, Trm  50, 6 Blades, Extended back disc type)
Back plate721085-0001  (434689-0002)(1102015316/1102015314)
Heat shield Number434302-0001 (434684-0001) (1102015343)
Repair Kit732252-0001 (1102015756)
Turbine Housing436383-0002
Compressor Cover436414-0010
Turbine Housing AR 0.50
Actuator434133-0022
Gasket (turbine inlet)210658 (Inox Steel) $21.90
Gasket (oil outlet)210243 (Paper) $4.50
ManufacturerHoneywell-Garrett
Condition New


Applications

2002- Perkins Industrial Engine  T4.40

451298-5045S 451298-5045S

451298-5045S

2 995 kr
