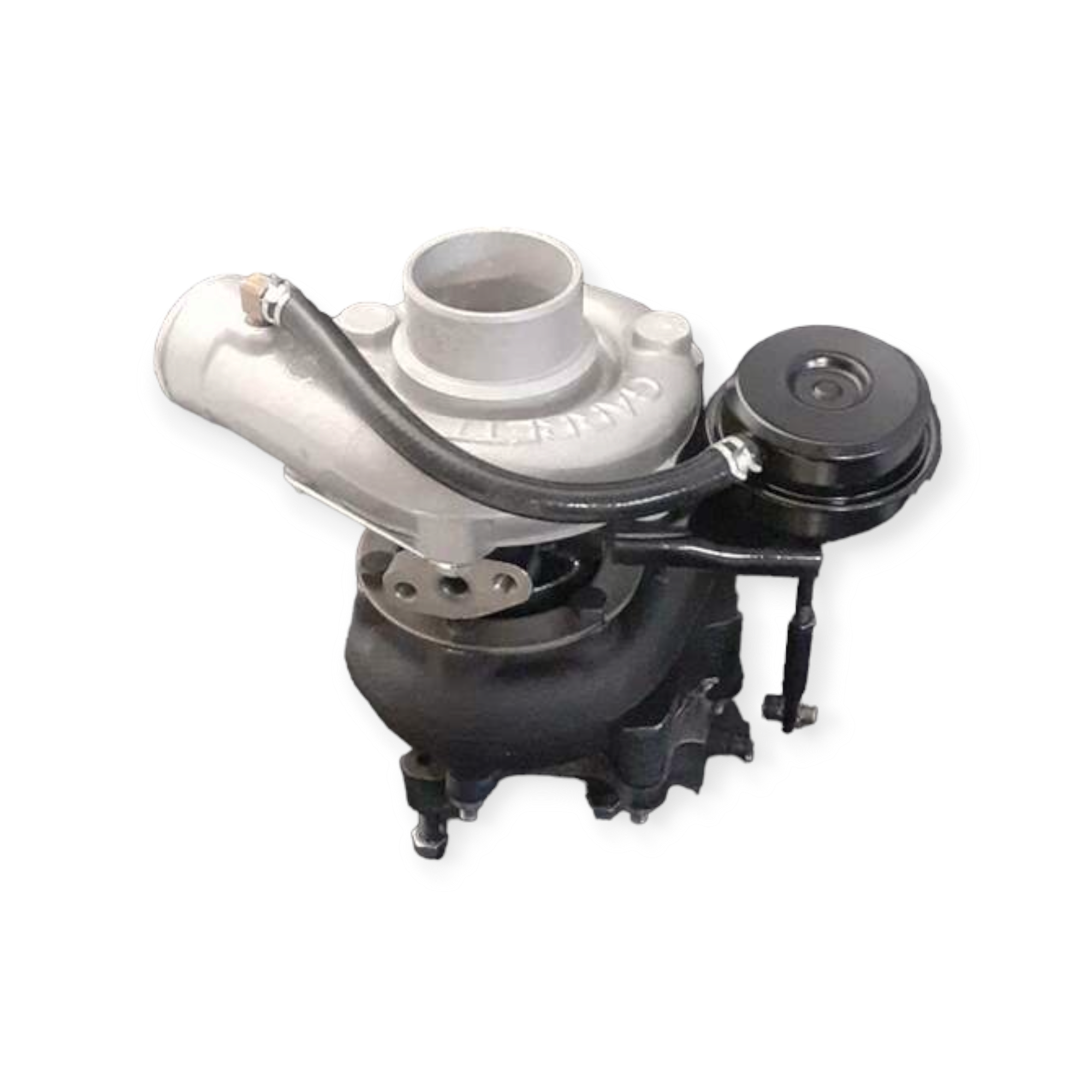

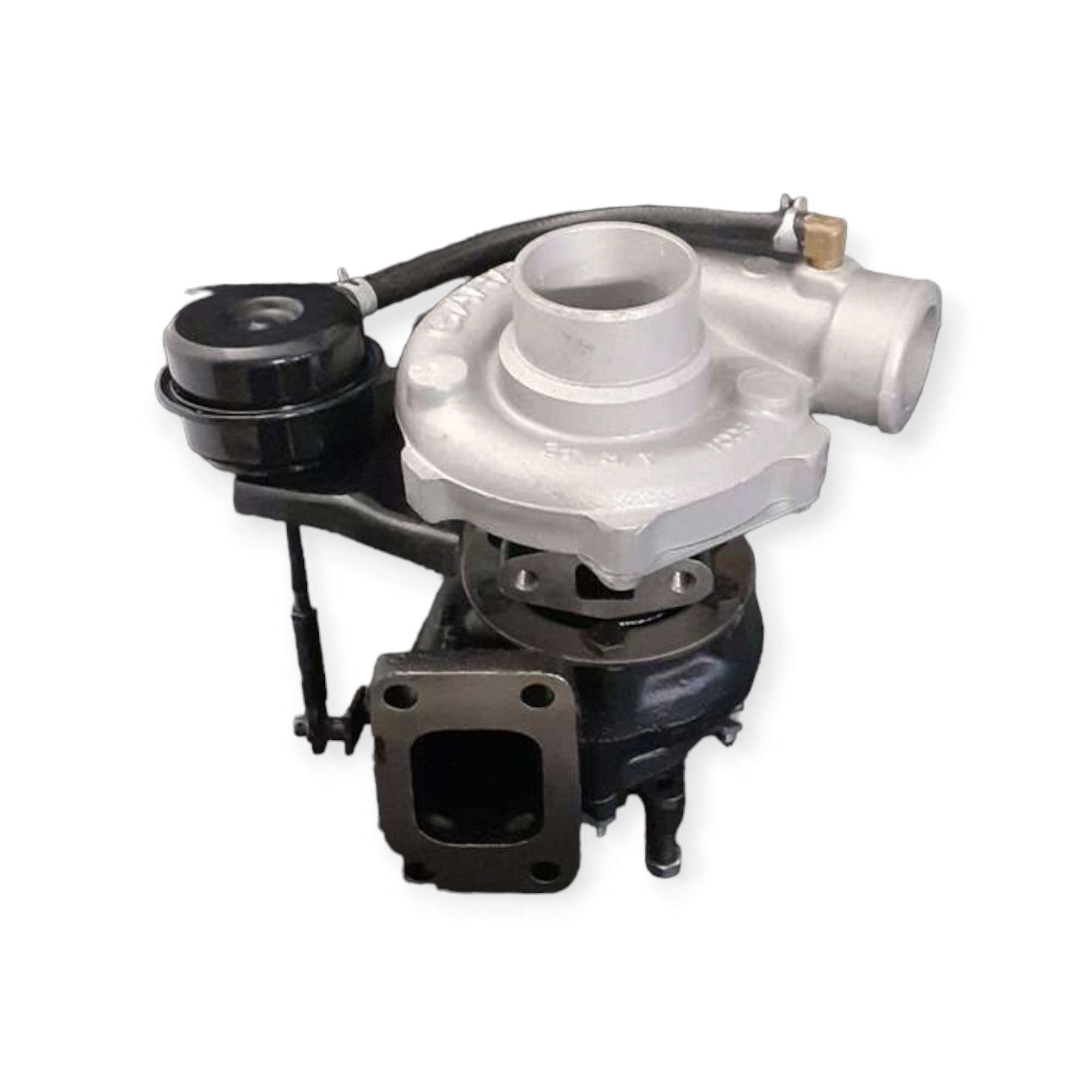

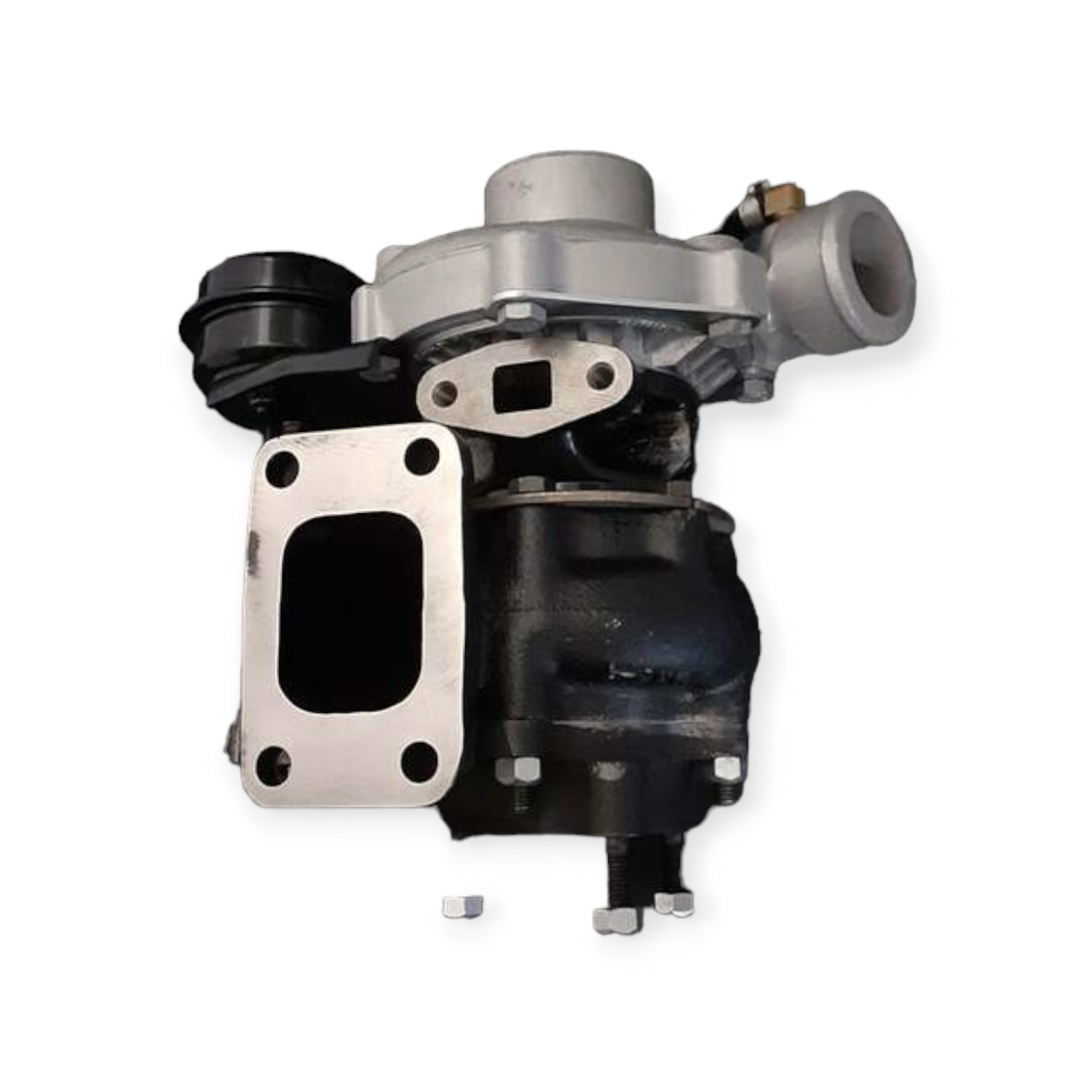

466800-5005S Garrett TBO350 bytesturbo. OEM nummer : 847877/864463

466800-5005S Garrett TBO350 bytesturbo. OEM nummer : 847877/864463

- Renoverad unik originalturbo då turbinhus sedan många år utgått samt turbon utgått ur produktion så ingår denna turbo i vårat populära bytesturbo / utbytessystem här.

- 3 års garanti.

- Monteringssats + pinnbultar + muttrar ingår.

Turbonummer Garrett : 466800-5005S

Turbonummer / ersättningsnummer : 466800-0005, 466800-5005S, 466800-0001, 466800-5001,  466800-5001S, 466800-0002, 466800-5002, 466800-5002S, 466800-0003,  466800-5003, 466800-5003S

Originalnummer : 864463, 847877/864463

Turbo Model: TB0350

Manufacturer: Honeywell-Garrett

Year: 1987-

Engine: TD61, TD61GW

Engine Manufacturer: Volvo

Displacement: 5.48/5.5L, 5480 ccm, 6 Cylinders

Fuel: Diesel

Power: 177 HP

Speed: 2500 RPM

Angle α (Compressor Housing): 340°

Angle ß (Turbine Housing): 0°

Actuator: 430099-0034

Back Plate: 409629-0001/409629-0003 (1100030300)

Bearing Housing: 430027-0025/430027-0022 (186879, 186881, 430027-0048)(1100030450)(Oil Cooled)

CHRA: 409853-0089 (409853-5089S)

Compressor Cover: 409589-0135

Compressor Wheel: 409096-0013 (103015-0000)(Ind. 60 mm, Exd. 46.5 mm, Trim 60, 6 Blades)(1100030400)

Gasket (Turbine Inlet): 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006)

Gasket (Turbine Outlet): 210275 (Stainless Steel)

Gasket  (Oil Inlet): 210021 (210023-0000, 147837, 210023, 215234, 55739,  3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001,  52231586500)(1900000037)(Paper)

Gasket (Oil Inlet): 210023  (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762,  409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper)

Heat Shield: 409639-0000

Repair Kit: 707897-0001 (1100030750)(Dynamic)

Turbine Housing A/R: 0.48

Turbine Housing: 430410-0012

Turbine Wheel: 451311-0014/451311-0003 (1100030435) (Ind. 59 mm, Exd. 48.35 mm, Trim 67, 11 Blades)

Wastegate Settings (Lift Rod): 1.00 mm

Wastegate Settings (Pressure): 1.05-1.12 bar

Application:

1987- Volvo Construction, Excavator, Earth Moving with TD61GW Engine

1987- Volvo Penta Marine with TD61GW Engine

1987- Volvo Penta Truck (Forklift) with TD61, TD61GW Engine

Detta är en bytesturbo och den gamla turbon skall i retur till oss !
