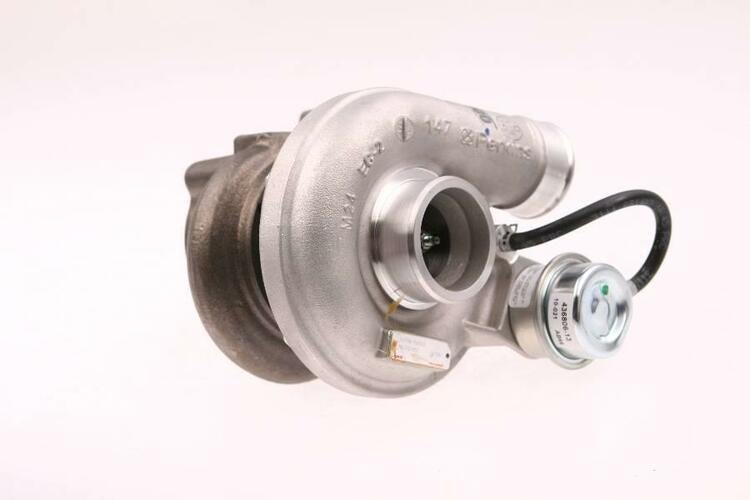

711736-5001S Renoverad Garrett bytesturbo : OEM : 2674A200 Motorkod : T4.40 ( Bytesturbo )
- 6 500 kr
711736-5001S Renoverad Garrett bytesturbo : OEM : 2674A200 Motorkod : T4.40 ( Bytesturbo )Monteringssats ingår vid köp utav denna turbo online.Bytesturbo
Lagersaldo:
1
Artikelnummer:
711736-5001S-BT
711736-5001S Renoverad Garrett bytesturbo : OEM : 2674A200 Motorkod : T4.40 ( Bytesturbo )
Monteringssats ingår vid köp utav denna turbo online.
Bytesturbo = Gamla turbon skall i retur efter bytet.
Originalnummer Perkins : : 2674A200
Motorkod : T4.40
Turbonummer / Turbofakta / Originalnummer :
| Part Number | 711736-5001S |
| Previous Version | 711736-0001, 711736-1 |
| OE number | 2674A200 |
| Year | 2003- |
| Description | Truck |
| CHRA | 433289-0185 (433289-5185S, 433289-0255)(1000010381, 1102025901) |
| Turbo Model | GT2556S |
| Engine | T4.40 |
| Displacement | 4.4L, 4400 ccm, 4 Cylinders |
| KW | 75 |
| RPM Max | 2200 |
| Fuel | Diesel |
| Angle α (compressor housing) | 105º |
| Angle β (turbine housing) | 185º |
| Bearing Housing | 713782-0010 (433275-0002, 433275-0005, 435793-0002, 713782-0002)(Oil Cooling Type) |
| Turbine Wheel | 436563-0003 (436563-0010)(Ind. 54. mm, Exd. 45.72 mm, 12 Blades) $49.62 |
| Comp. Wheel | 436336-0019 (436563-0002) (Ind. 39.7 mm, Exd. 56. mm, 6+6 Blades, Superback)(1102022408) |
| Back plate | 721086-0001 |
| Heat shield Number | 434686-0001 |
| Repair Kit | 732252-0001 (1102015756) |
| Turbine Housing | 711739-0001 |
| Compressor Cover | 721260-0001 |
| Turbine Housing AR | 0.52 |
| Actuator | 436806-0013 |
| Gasket (turbine inlet) | 210658 (INOX Steel) |
| Gasket (oil outlet) | 210553 (210243)(Non Metallic) |
| Manufacturer | Honeywell-Garrett |
Fabriksny originalturbo finns relaterad nedan.
