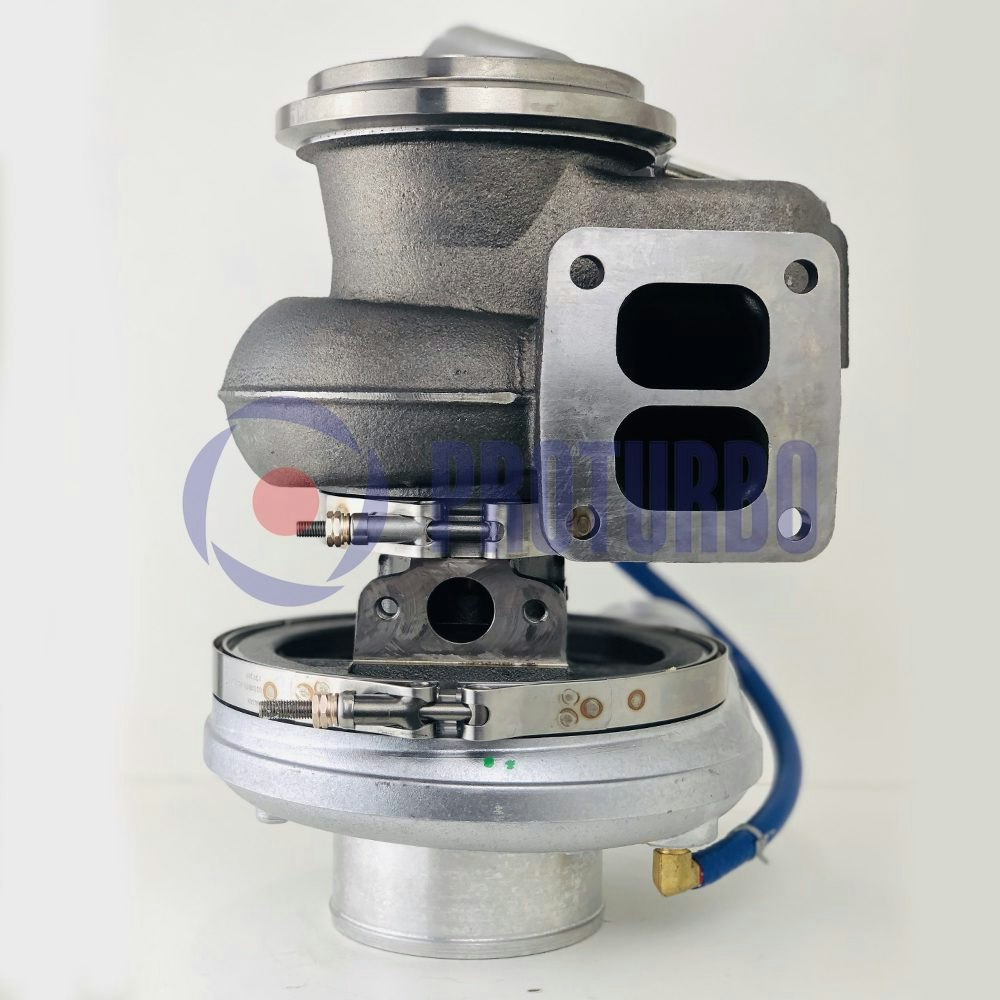

178479 Caterpillar C9 fabriksny originalturbo S310G080
Fabriksny originalturbo till mycket vanliga Caterpillar C9 här.
VI renoverar även dessa turbos ofta här men fabriksny originalturbo är i många fall nödvändigt då det ibland är stressigt samt det kan vara svårt att få tag i delar till dessa vid renovering.
Originalnummer Caterpillar : 10R-0370, 10R-0823, 10R0370, 10R0823, 193-3346, 1933346, 216-7815, 2167815, 471845, 473264, 478479
Turbonummer / Originalnummer / Turbofakta :
| Part Number | 178479 |
| Previous Version | 171845, 171845R, 173264, 173264R, 178479R |
| OE number | 10R-0370, 10R-0823, 10R0370, 10R0823, 193-3346, 1933346, 216-7815, 2167815, 471845, 473264, 478479 |
| Year | 2001-10 |
| Description | Industrial Earth Moving 972 loader, Caterpillar 938G/950G/962G Wheel Loaders |
| Manufacturer Part Number | 173264 |
| CHRA | 174129 (178189, 178397)(2355507, 20R-4999, 20R4999, 196-6097, 1966097, 478189, 478397)(1000070074C) |
| Turbo Model | S310G080, S200G062 |
| Prefix | 4FR, 767, 765, 64M, 91N, 92N, CAP, MSD, MSL, 20W, 21W, 22W, 23W, 4JB, 1HB, 1LB, 7CB, CEJ, CEM, CLJ, 9DG, 99Z, C9D, MGC, CLJ, ALM, AMS, 814, 815 |
| Engine | C9 |
| Displacement | 7.0/9.0L, 7000/9000 ccm |
| KW | 211/315/232 HP |
| RPM Max | 2000 |
| Fuel | Diesel |
| Machine Engine | 3126 |
| Integrated Tool Carrier | IT38G, IT62G |
| Wheel-Type Skidder | 525B, 535B |
| Wheel-Type Loader | 938G, 950G, 962G |
| Wheel Scraper | 637D, 637E, 637G |
| S/N | 55K7976-UP, 6JK8177-8177, 6JK8180-8180, 6JK8182-8182, 6JK8193-UP, 6JK10689-UP, CEJ00001-UP |
| Angle α (compressor housing) | 270º |
| Angle β (turbine housing) | 45º |
| Bearing Housing | (Water Cooled)(1900011439) $59.0094 NEW IN STOCK |
| Turbine Wheel | (Ind. 76. mm, Exd. 68. mm, Trm 11.7, 11 Blades)(1100016535) $115.00 NEW IN STOCK |
| Comp. Wheel | (Ind. 57.3 mm, Exd. 83. mm, Trm 9.9, 7+7 Blades, Superback)(1200016640) NEW IN STOCK |
| Back plate | (1800016034) NEW IN STOCK |
| Heat shield Number | NEW IN STOCK |
| Repair Kit | 176392 (5000030033B) $96.00 NEW IN STOCK |
| Gasket | 318420 (1P0451) $9.72 |
| Interchange By | 173264 (216-7815) |
| Manufacturer | Borg Warner - 3K - Schwitzer, BWTS USA |
Applications
2001-10 Caterpillar Industrial, Earth Moving Model 938G, 950G, 962G, 972 loader with C9 Engine
