914959-0004 Garrett GVB-50R 50MM Återcirkulerande Dumpventil / Blow off ( Svart )

  • 3 395 kr

914959-0004 Garrett GVB-50R 50MM Återcirkulerande Dumpventil / Blow off ( Silver )- Nästa nivå utav återcirkulerande dumpventil 50MM ifrån Garrett motion som ta

I lager.
Artikelnummer: 914959-0004
Dela

914959-0004 Garrett GVB-50R 50MM Återcirkulerande Dumpventil / Blow off ( Silver )

- Nästa nivå utav återcirkulerande dumpventil 50MM ifrån Garrett motion som tar allt till en ny nivå utav finish och kontroll.

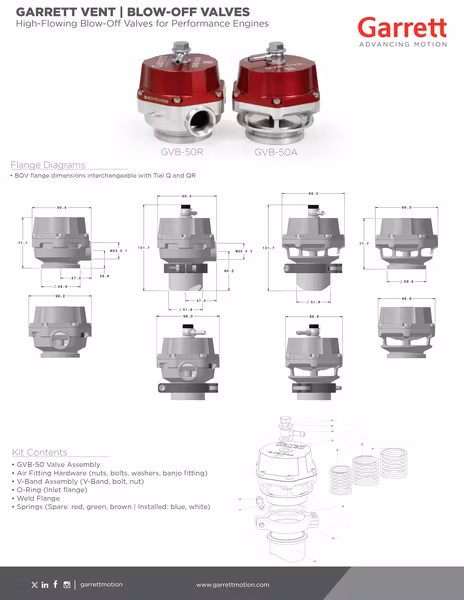

Garrett GVB Blow-Off Valves:

Features:

  • Recirculating and Vent to atmosphere housing options
  • CFD tested for maximum flow and thermal efficiency
  • Replaceable components to increase service life
  • Robust design for easy diaphragm replacement
  • 6061 Anodized aluminum actuator cover and fully-machined billet housing
  • Maximum flow 350 CFM | .21kg/s for GVB-50R (Recirculating)
  • Four outlet adapters for the recirculating valve. Adapters sold separately
  • Four Colors: Red | Blue | Black | Silver
  • Base pressure 0.7 Bar | 10 PSI (blue and white spring installed)
  • Springs | Fittings | Flanges | V-Bands included

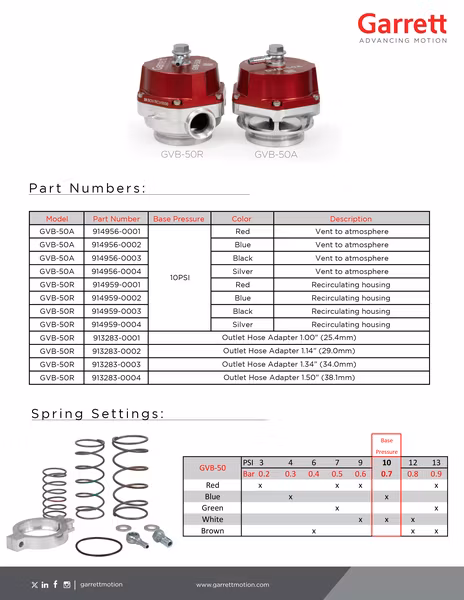

  • Configurable springs settings include: 3 | 4 | 6 | 7 | 9 | 10 | 12 | 13 PSI
  • Wrought Aluminum Alloy Weld Flange
  • 17/7 PH Stainless Steel Springs (2 installed, 3 additional)
  • Plated stem and bushing for lowered friction and wear resistance
  • High temp nomex reinforced diaphragm
  • Stainless steel fittings and fasteners
