934173-5004S Garrett GXR45-73 Super Core

  • 34 995 kr

 Garrett GXR45-73 Super Core 934173-5004S - Det absolut senaste ifrån Garrett motion i form utav GXR-73 är nu här.- Perfekt för dragracing

I lager.
Artikelnummer: 934173-5004S
Dela

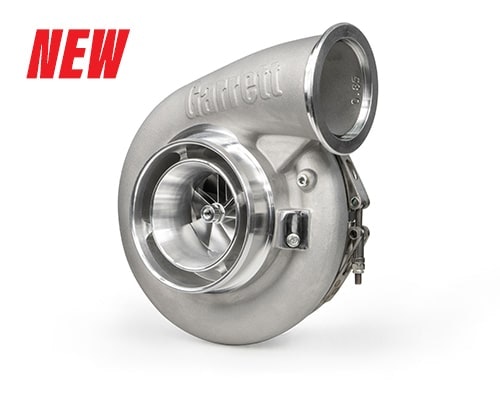

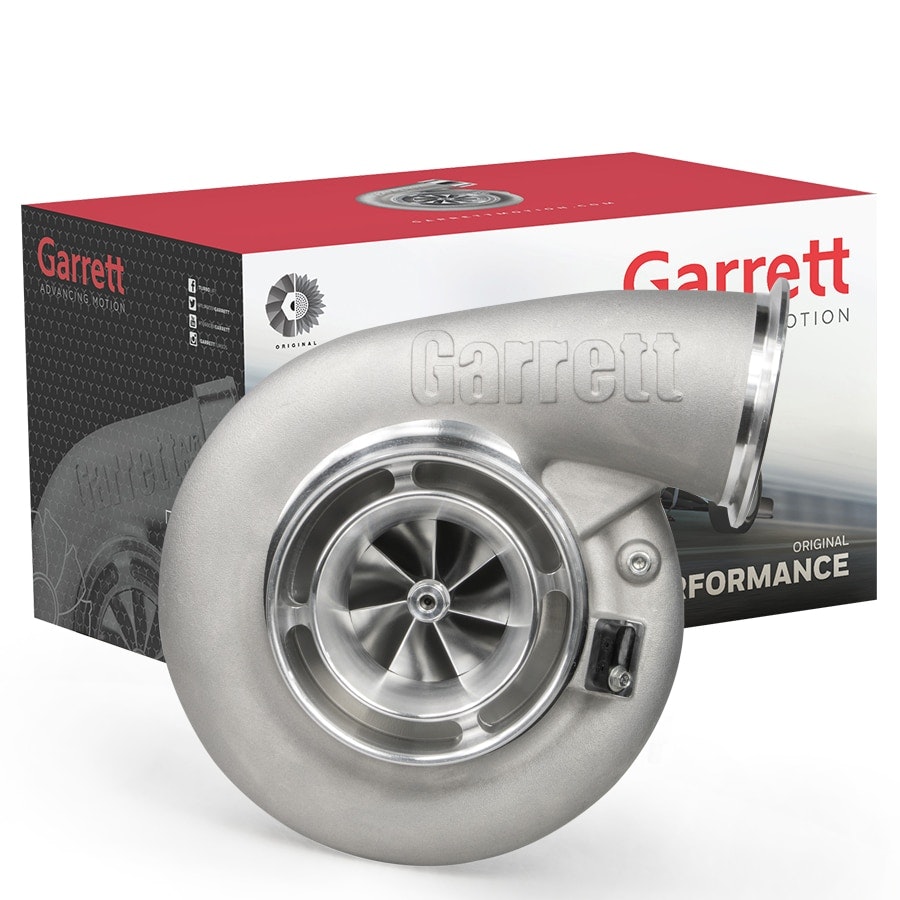

 Garrett GXR45-73 Super Core 934173-5004S

- Det absolut senaste ifrån Garrett motion i form utav GXR-73 är nu här.

- Perfekt för dragracing




Design type: Standard version with High Flow Compressor Housing
Horsepower: 750 - 1550 PS
Displacement: 2.0 - 8.0L



Garrett G-XRace-Series - Xtreme Power Meets Xtreme Performance.



Do you want to be the fastest? Then the new Garrett G-XRace series is just right for you!



G-XRace  turbochargers are based on over 70 years of engineering and innovation  and are developed by a global team of 1300 engineers in five research  and development centres to ensure extreme durability and extreme  performance.



  • XBoost technology increases power and performance
  •
  • +11% compressor flow (GXR45-73 compared to G45-1350)
  •
  • Improved pressure ratio capability and higher boost pressure
  •
  • Increased efficiency at high flow rates
  •
  • Lower intake temperature
  •
  • For use in drag racing classes with compressor wheel inducer limits of 67.9, 73.9. Please check class rules before purchase
  •
  • Lightweight aluminium backplate
  •
  • TTwin-scroll  T4 and V-band turbine inlet flanges available to meet the needs of  racers with different engines and manifold designs
  •
  • Rotation: Standard
  •
  • Turbine housings from the G45 series can be used
  •


WARNING: The maximum permissible speed of the turbocharger is 109krpm. Use of  this product above the maximum turbocharger speed is at your own risk  and may result in damage and premature failure. To protect the  turbocharger from overspeeding during operation, a speed sensor can be  installed in the compressor housing to monitor the shaft speed. The  sensors are available separately. (Click here for more information)



The performance results of this product are highly dependent on the modifications and tuning/calibration of your vehicle.

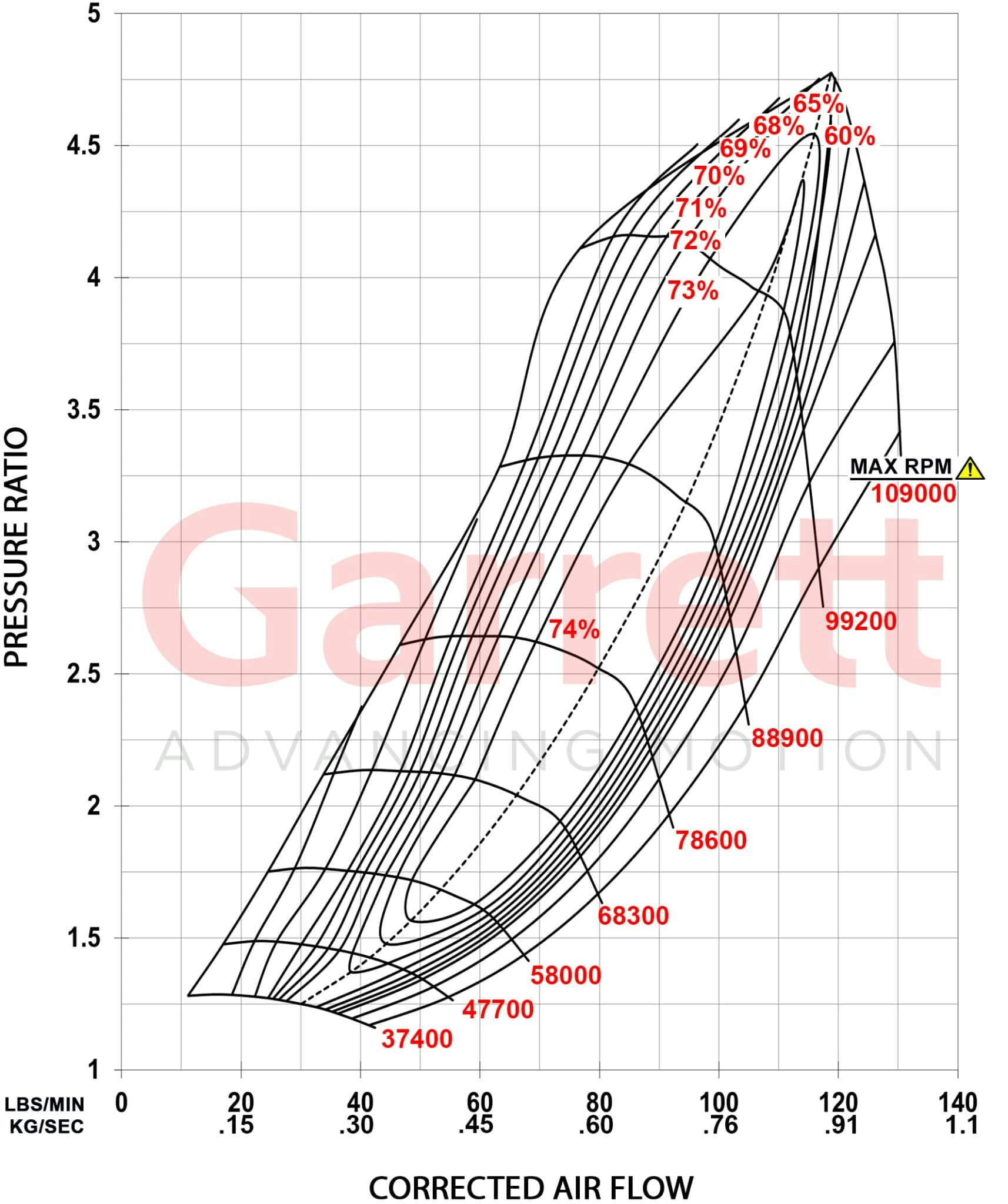

The  horsepower figures shown above are based solely on the throttle flow  rate of the compressor map (total turbo capacity), which represents the  potential flywheel horsepower


Compressor side:
inducer ø
73.9mm
exducer ø
102.00mm
Trim
52
A/R
0.85

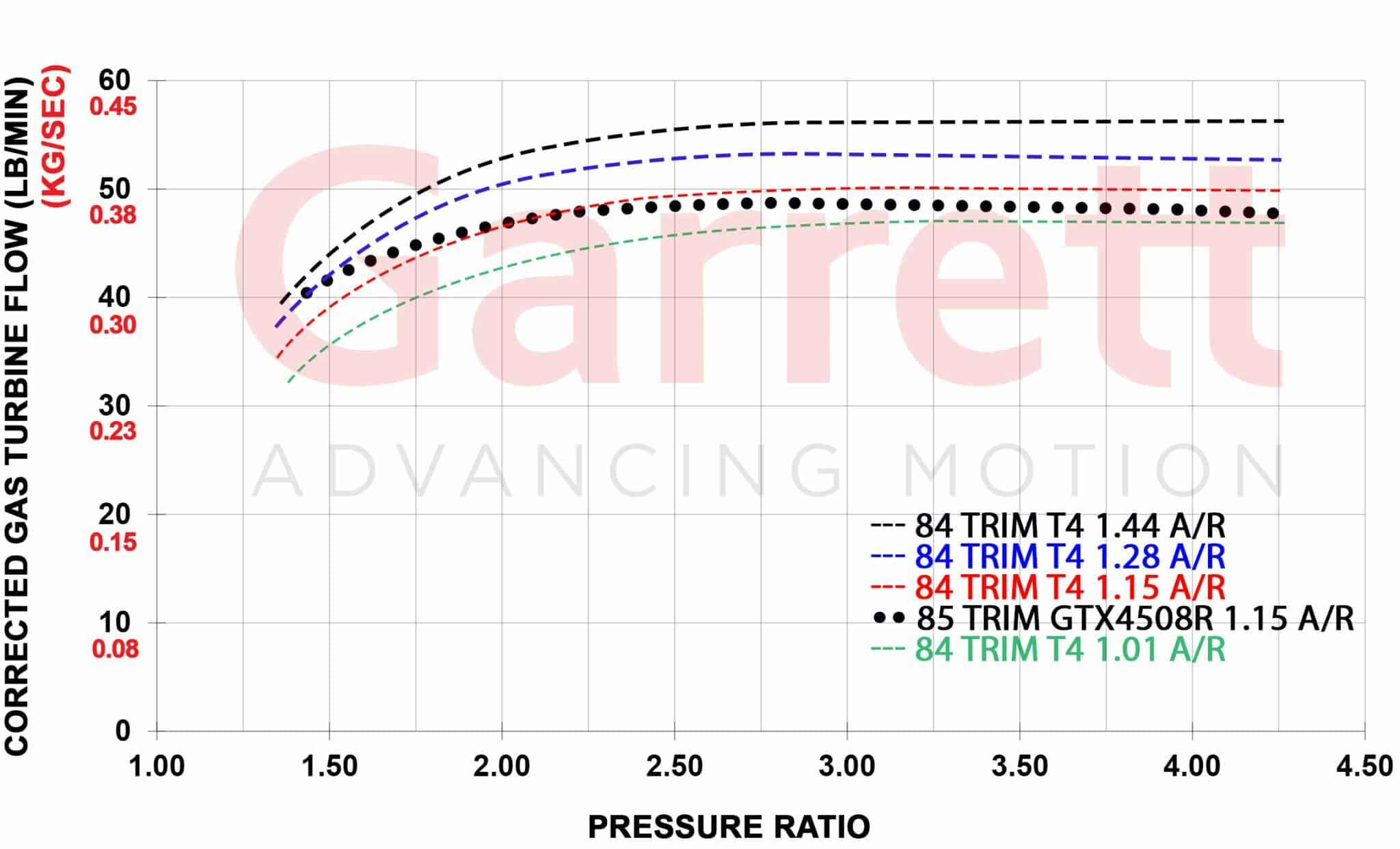

Turbine side:
inducer ø
89.00mm
exducer ø
82.00mm
Trim
84
A/R
--



We  are the only Garrett Performance Distributor for Germany and will  support you with any questions about these turbocharger or would help to  design your project.
