759498-0008 Actuator Kit G25 (0.5 bar) - V-band/Standard Rotation

Garrett  G25 performance actuators kits are available in 0.5 bar, 1,0 bar and  1,5 bar configurations. Kits are available in standard and reverse  rotation for the G25-550 and G25-660 V-band turbine configurations and  standar rotation only for T4 turbine configuration. Actuators kits  provide all parts needed to update the turbocharger

Technical Features:

• For use with G25 turbos with V-band conection on inlet turbine housing
• Actuator part number 480009-0009

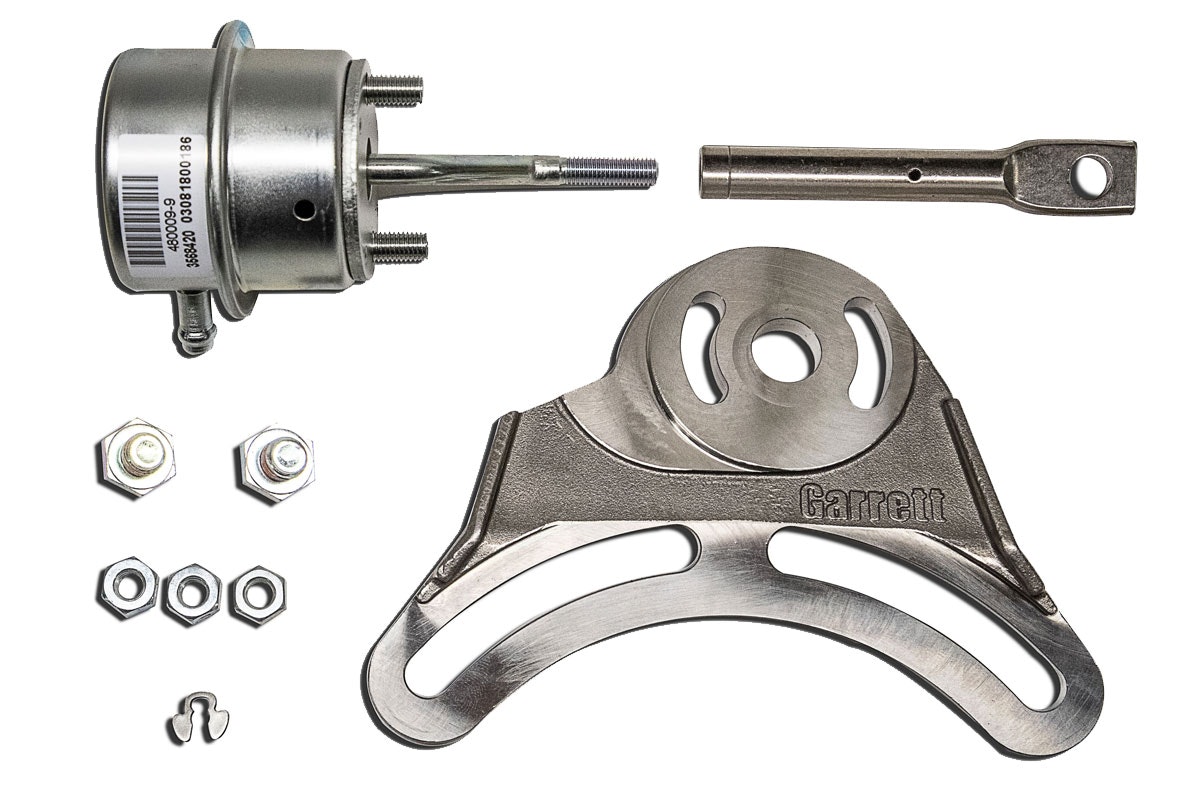

• The kit includes, actuator, rod end, jam nut, lock nuts, retaining ring, bracket bolts and bracket.
• Actuator pressure 0.5 bar ( 7.25 psi )
• Thread 1/4 x 28UNF
• Rod type: straight
• Assembly and calibration required.
