740902-0117 Turbinhus / avgashus Garrett G35 Reverse T3 Inlet / V-Band Outlet - 1,01 A/R ( Reverse rotation )

  • 6 500 kr

740902-0117 Turbinhus / avgashus Garrett  G35 Reverse T3 Inlet / V-Band Outlet - 1,01 A/R ( Reverse rotation ) ( Beställningsvara 3-10 dagar )Garrett Turbi

I lager.
Artikelnummer: 740902-0117
Dela

740902-0117 Turbinhus / avgashus Garrett  G35 Reverse T3 Inlet / V-Band Outlet - 1,01 A/R ( Reverse rotation ) ( Beställningsvara 3-10 dagar )

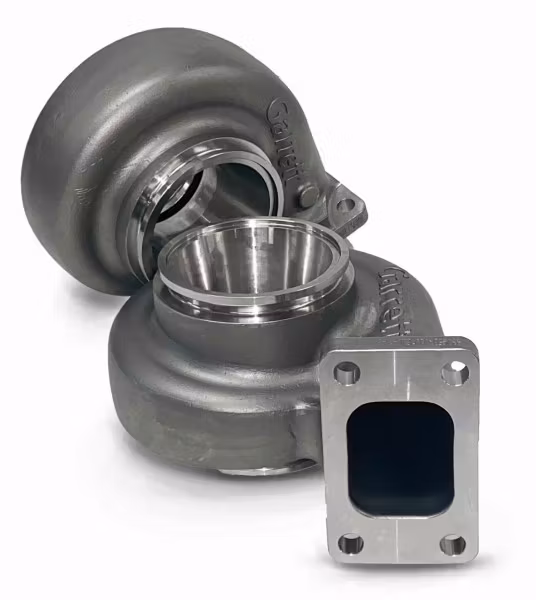

Garrett Turbine Housing

  • G35-Series
  • Rotation: Reverse (Counterclockwise)
  • 1.01 A/R
  • 84 Trim
  • T3 Inlet
  • V-Band Outlet
  • External Wastegate
  • Material: Stainless Steel 1050°C
  • Delivery inclusive V-Bands
  • 740902-0117

With the turbine housings for the Garrett turbochargers, you can put together the turbo yourself according to your calculations. This is useful if you want to adapt the turbo for a different displacement with different A/R values, for example. Housings with other flanges can also be installed. The turbine housing can be easily removed by loosening the V-band clamp.

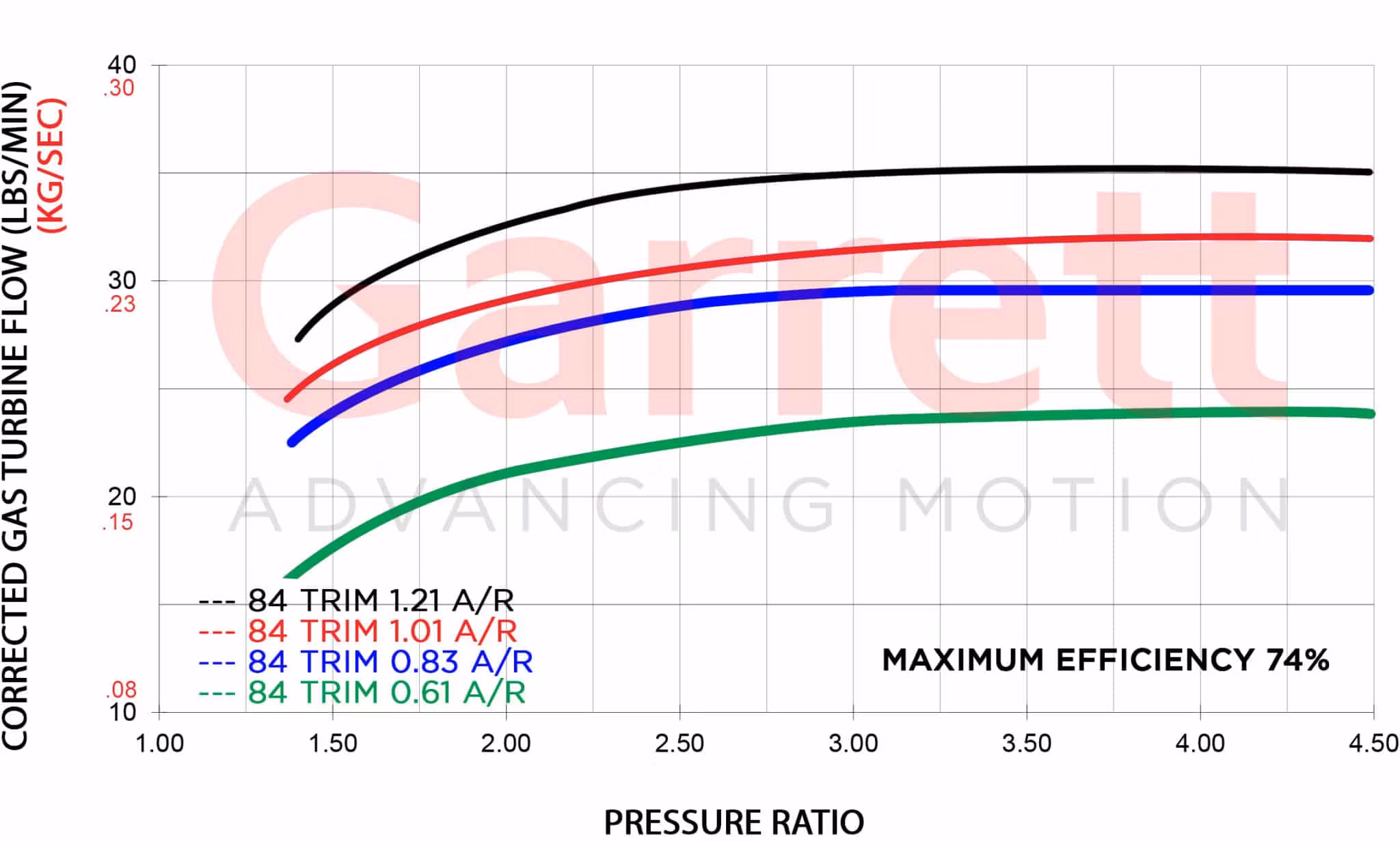

Determine the A/R value correctly:

The A/R value determines the exhaust gas throughput of the turbine housing and is therefore largely responsible for the performance of the turbocharger and engine. Basically, the lower the A/R value, the earlier the turbocharger responds, but on the other hand, the exhaust gas back pressure increases and the maximum output decreases.


Vi  på Turboshop Sweden AB har  många års erfarenhet utav turboval samt vi  hjälper er gärna välja  lämplig turbo samt turbinhus här.

Maila [email protected] Motorfakta / Bränsle / Ändamål / effektmål osv..
