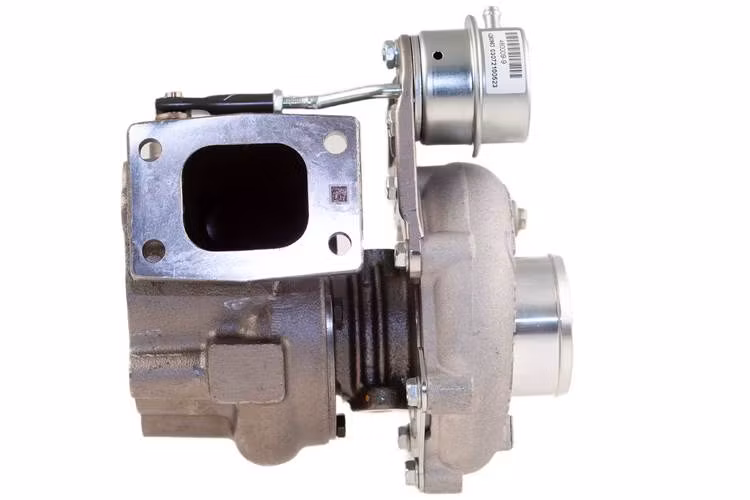

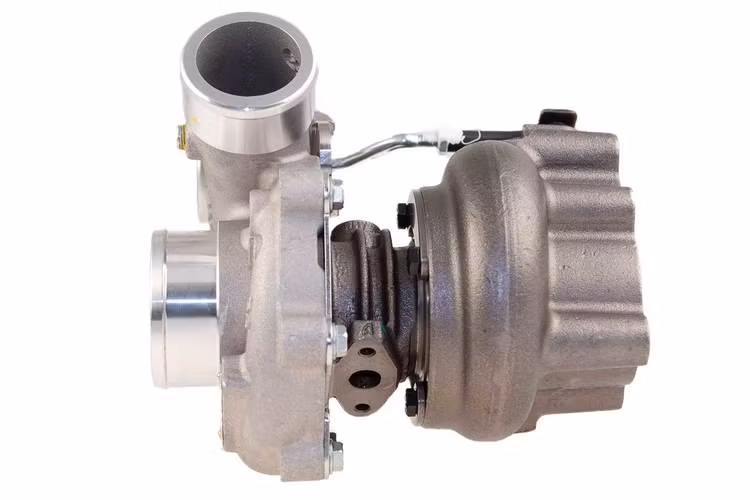

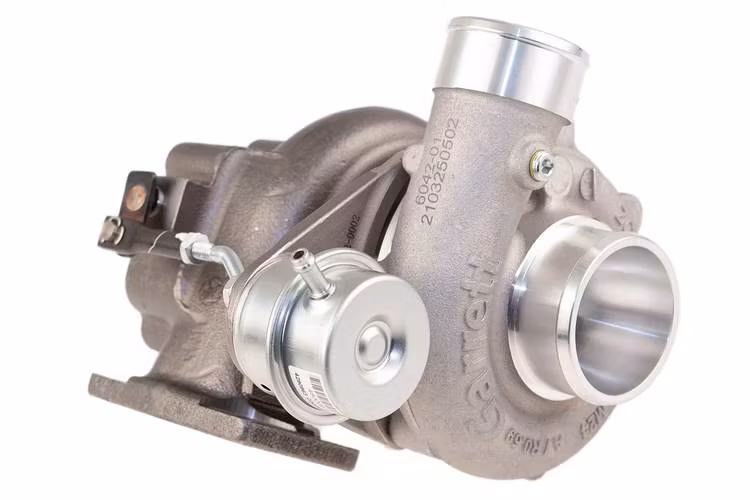

Garrett GBC20-300 Turbolader 0.55 A/R IWG 896053-5003S

Garrett GBC20-300 Turbolader 0.55 A/R IWG 896053-5003S.

En oerhört prisvärd och trevlig turbo till mindre motorvolymer.

Perfekt vid turbokonvertering utav vattenskoter,snöskoter,MC eller liknande.

GBC series levereras med mjukaste actuatorn 480009-0009 som standard på 0,5 bar.

Vi har normallt alltid 480009-0006 1,0 bar samt 480009-0010 1,5 bar actuators på lager här.

Går att köpa till nedan.

Fakta om turbon ifrån tillverkaren Garrett :

"Garrett GBC20-300 Turbocharger 0.55 A/R IWG 896053-5003S" ( Beställningsvara 2-4 dagars levtid )

Horsepower: 170 - 300 HP
 Displacement: 0.8 - 2.0 L

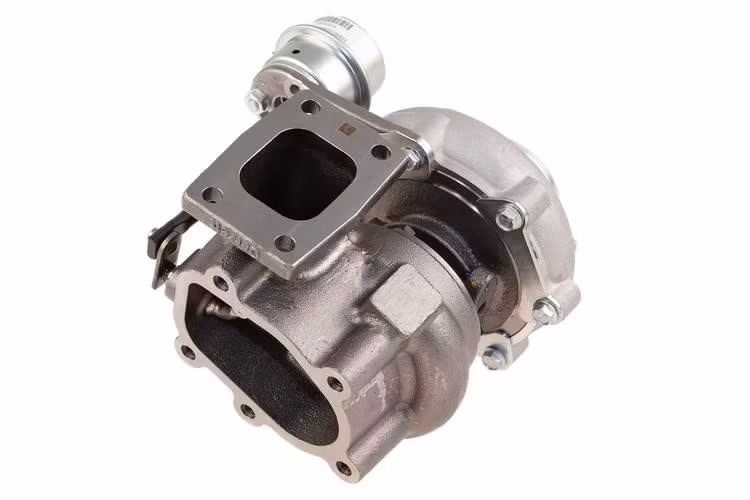

T25 Inlet - 5-Bolt Outlet - Single Scroll - Internal Wastegate - A/R 0.55

Honeywell Garrett GBC-Series - The new Boost-Club-Line turbocharger!
These very small turbocharger achieve extremely high performance with minimum space requirements.

• Latest CFD-optimized, forged milled compressor whee
• Rotation: Standard (Clockwise)
• Latest generation of journal bearing rotor group

• 360-degree thrust bearing
• Ductile iron (SiMo+) turbine housing material

• Inconel turbine wheel material
• Oil cooled center housing

• Internal Wastegate incl. 0.5 bar Actuator
• Delivery: Turbocharger

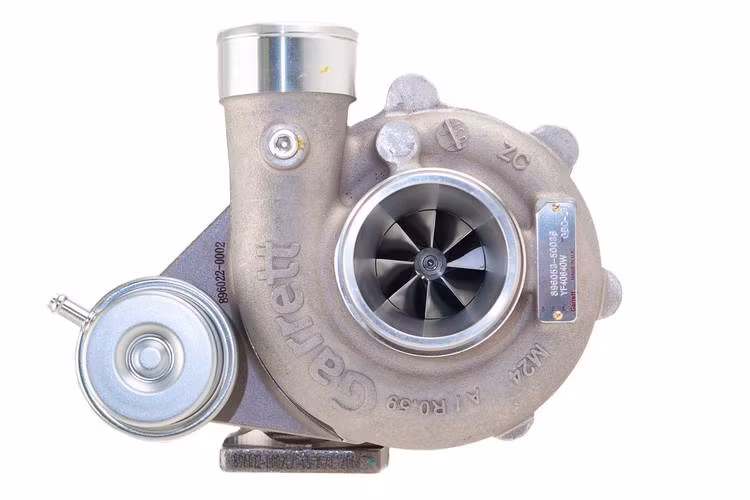

Compressor side: It uses the latest generation of CFD-designed compressor wheels.

Center Housing: The center section is attached to the exhaust housing over an V-band and can thus easily rotate 360° into any position.

Turbine side: The  completely redesigned turbine wheel, made of the high-performance  material Inconel, enables exhaust gas temperatures up to 980° C.
