443854-5129S Garrett 452058-5002S TB2556 - Core / Centrumdel / rotorenhet / Centrumkärna OEM : 2674A055

  • 3 495 kr

443854-5129S Garrett  TB2556 - Core / Centrumdel / rotorenhet / Centrumkärna OEM : 2674A055- Fabriksny original 443854-5129S Garrett  TB2556 - Core /

I lager.
Artikelnummer: 443854-5129S
Dela

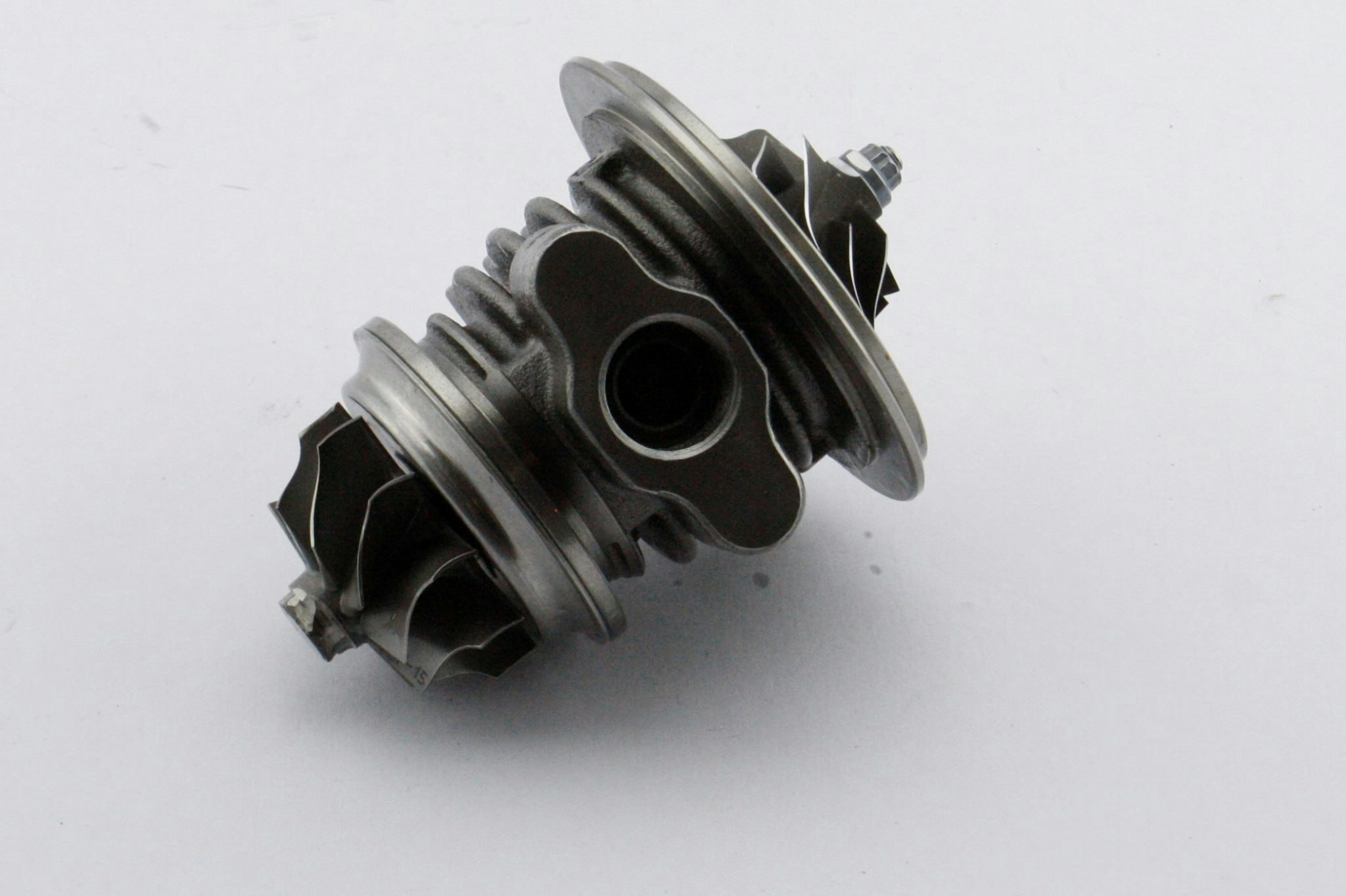

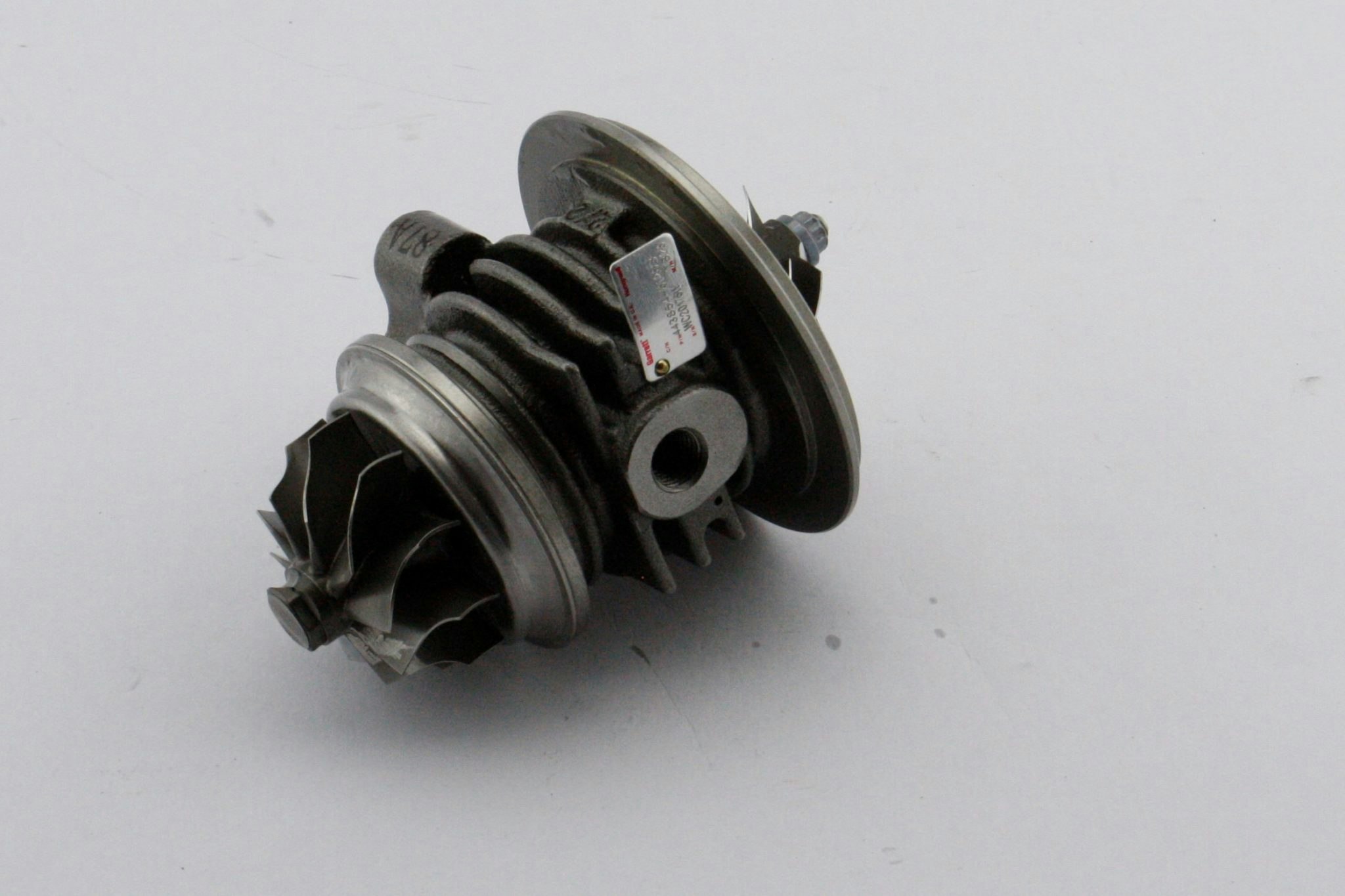

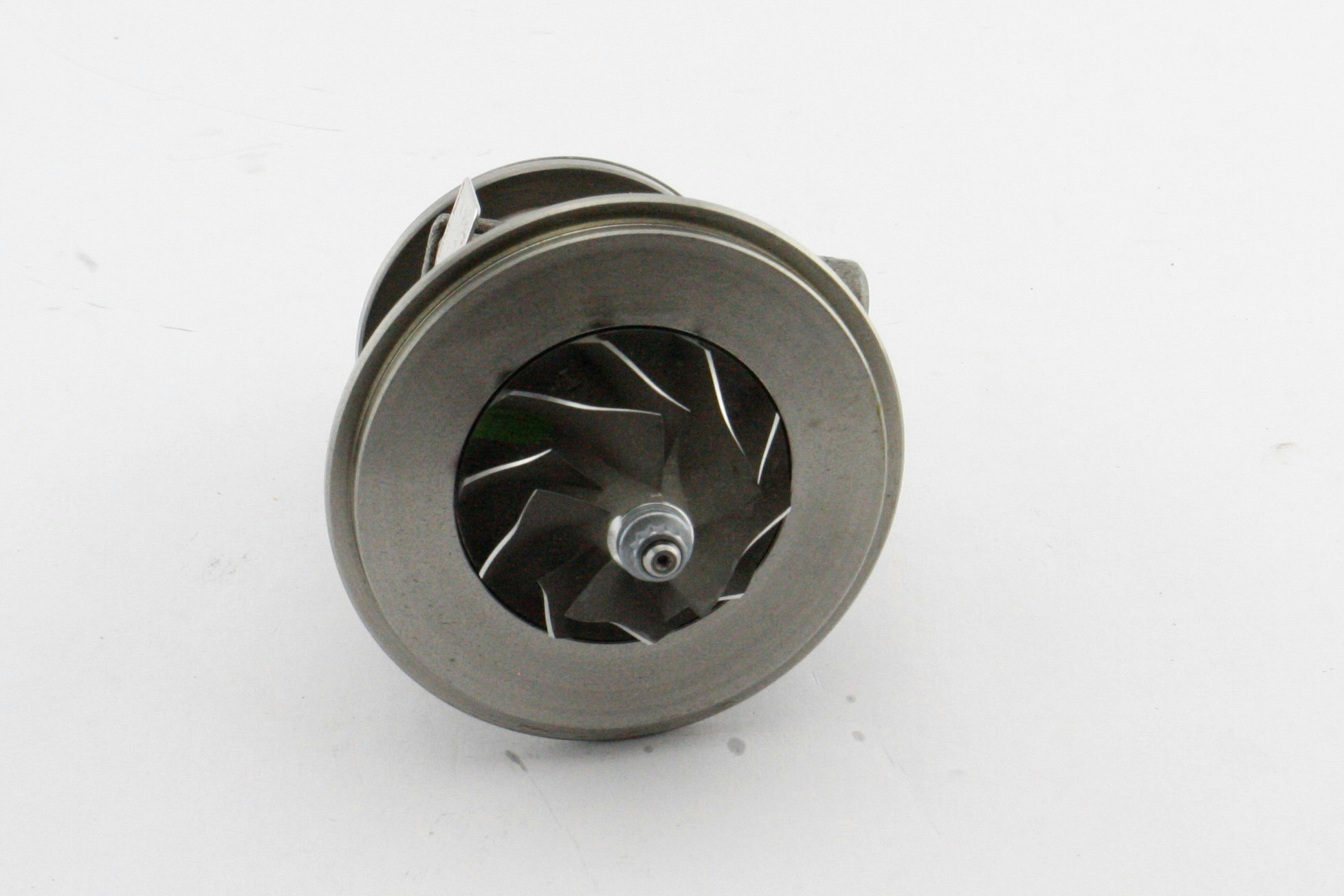

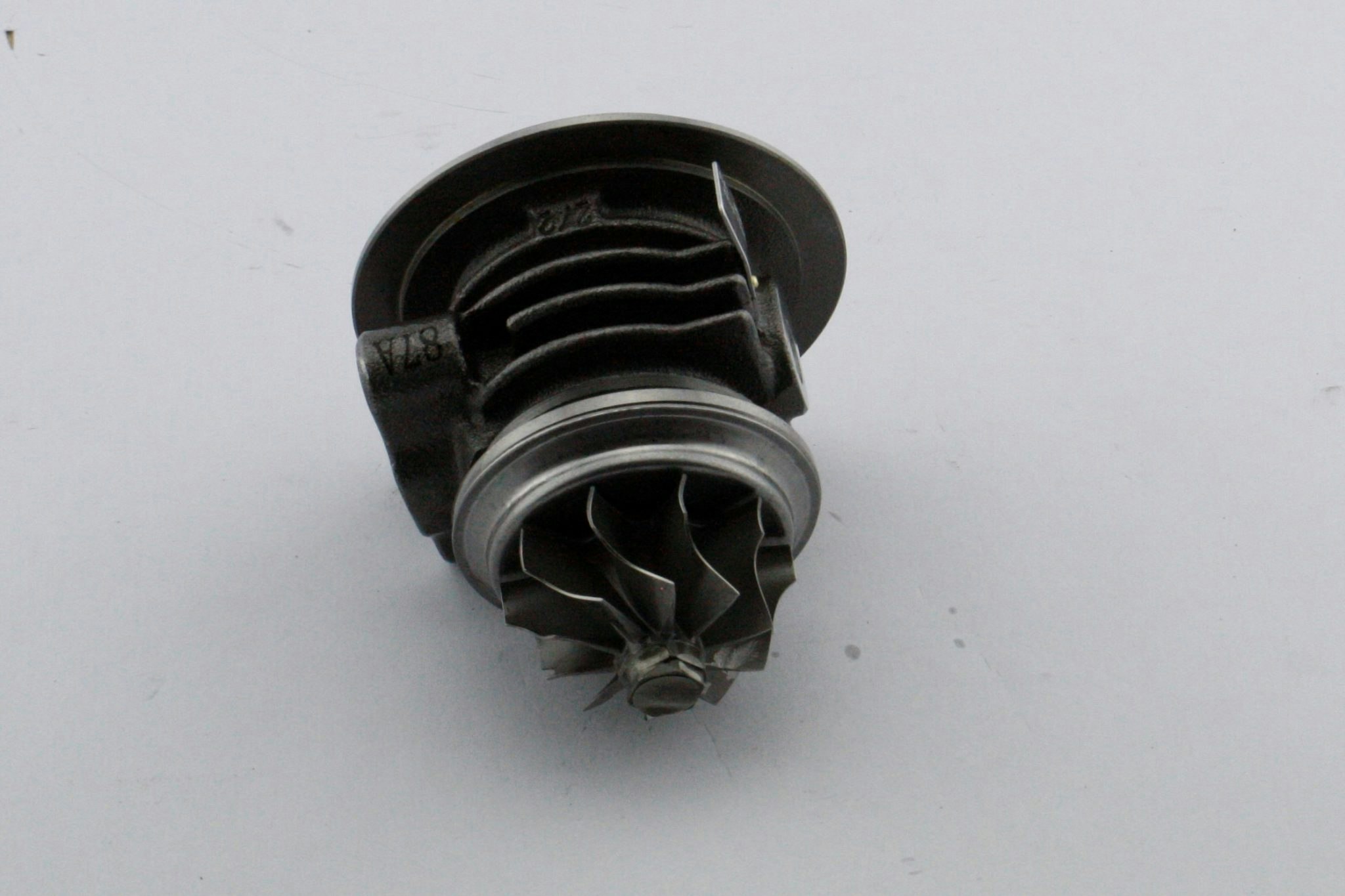

443854-5129S Garrett  TB2556 - Core / Centrumdel / rotorenhet / Centrumkärna OEM : 2674A055

- Fabriksny original 443854-5129S Garrett  TB2556 - Core / Centrumdel / rotorenhet / Centrumkärna

Denna mycket populära centrumdel sitter på :

Originalnummer Perkins : 2674A055

Turbonummer garrett : 452058-5002S, 452058-0002


Vi har även fabriksny originalturbo relaterad nedan samt ni kan köpa renoverad original bytesturbo också.


Turbonummer / ersättningsnummer / Turbofakta :

Part Number 452058-5002S
Previous Version452058-0002,  452058-0001
OE number 2674A055
Description Industrial
CHRA443854-0129 (443854-5129S, 443853-0038, 443854-0243) $500.00
Engine   1004.4THR2
Turbo ModelTB2556
FuelDiesel
Angle a (compressor housing)205º
Angle ß (turbine housing)
Bearing Housing 435349-0016 (Oil Cooled) $65.00
Turbine Wheel435406-0003 (Ind. 53. mm, Exd. 41.7 mm, Trm 62, 10 Blades) $111.93 NEW IN STOCK
Comp. Wheel446335-0012 (Ind. 38.08 mm, Exd. 53.97 mm, Trm 45, 6+6(10) Blades, Superback) $68.00 NEW IN STOCK
Back plate430735-0001/430612-0003 (1100025300) $16.84 NEW IN STOCK
Heat shield Number443594-0001 (1100025341) $13.84 NEW IN STOCK
Repair Kit709143-0001 (200423-0000, 707903-0002)(1100025761) $69.00 NEW IN STOCK
Turbine Housing413567-0047
Compressor Cover 434288-0005
Turbine Housing AR 0.49
Actuator 432340-0017
Gasket (turbine inlet)409039-0001 (210190, 210190-0000, 312617, 132044)(Stainless Steel, Single Port) $13.20
Gasket (turbine outlet)210225 (Stainless Steel)
Gasket (oil outlet)413709-0001 (Paper) $5.11
ManufacturerHoneywell-Garrett


Applications


1990-  Perkins Industrial Engine  1004.4THR2
