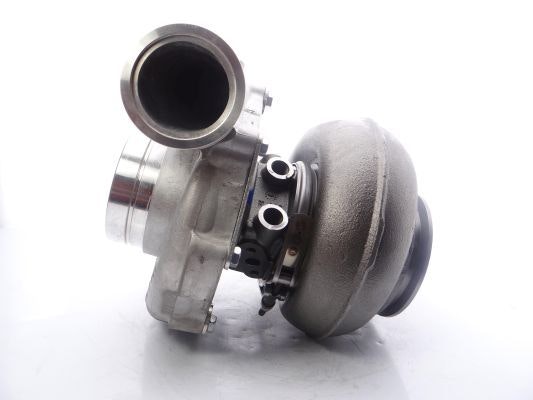

709197-5009S Garrett GT4594L fabriksny originalturbo
- Fabriksny originalturbo ifrån tillverkaren Garrett.
- 3 års garanti.
- Vi på Turboshop Sweden AB är Garrett master distributör för Sverige.
Turbonummer / Originalnummer / Turbofakta :
| Part Number | 709197-5009S |
| Previous Version | 709197-0009, 709197-0001, 709197-0003, 709197-0005, 709197-5005S, 709197-9 |
| OE number | 1549450, 20440364, 21031697, 20741949 |
| Year | 1999-07 |
| Description | Volvo Truck, B12B/B12M Bus |
| Model | B12B/B12M Bus. 340, 380 & 420 HP ratings |
| House Promotor | Volvo Power train |
| CHRA | 712402-0092 (712402-5092S, 712402-0065) $450.00 NEW IN STOCK, MADE IN USA |
| Turbo Model | GT4594BL, GT4594L |
| Engine | DH12D, DH12D Horizontal,DH12C340, DH12C380, DH12C420, DH12D380, DH12D340, DH12D420, DH12E460 |
| Model | 7300, 7500, 8500, 8700, 9700, 9900 |
| Displacement | 12.14L, 12140 ccm, 6 Cylinders Horiz |
| KW | 310/315 |
| RPM Max | 1800 |
| Fuel | Diesel |
| Angle α (compressor housing) | 323º |
| Angle β (turbine housing) | 90º |
| Bearing Housing | 720973-0004 (Water Cooled) $89.00 NEW IN STOCK |
| Turbine Wheel | 763590-0003 (763590-0007)(Ind. 87.1 mm, Exd. 77.78 mm, Trm 14.27, 10 Blades) $165.00 NEW IN STOCK |
| Comp. Wheel | 737714-0002 (720973-0004)(Ind. 62.3 mm, Exd. 94. mm, Trm 7.13, 6+6 Blades) $69.00 NEW IN STOCK |
| Back plate | 725273-0004 (726992-0003) $63.68 NEW IN STOCK |
| Heat shield Number | 410366-0007 (410366-0003, 410366-0004) $16.42 NEW IN STOCK |
| Repair Kit | 709153-0005 (709153-0001, 709153-0002)(1102042750)(13***75) $90.80 NEW IN STOCK |
| Turbine Housing | 449495-0019 $195.00 |
| Compressor Cover | 449858-0074 |
| Gasket (turbine inlet) | 409038-0000 (132040, 210017-0000, 52231083002) $15.49 |
| Gasket (oil outlet) | 210019 (129119, 55739, 147837, 210023-0000, 409036-0000) $4.40 |
| Gasket (oil outlet) | 210060 (311585, 2475013, 51914, 148062, 210060-0000, 409267-0002, 409267-0003)(Paper) $4.48 |
| Manufacturer | Honeywell-Garrett |
Applications
1999- Volvo Truck with DH12D Engine
1999- Volvo B12B/B12M Bus with DH12D Engine
