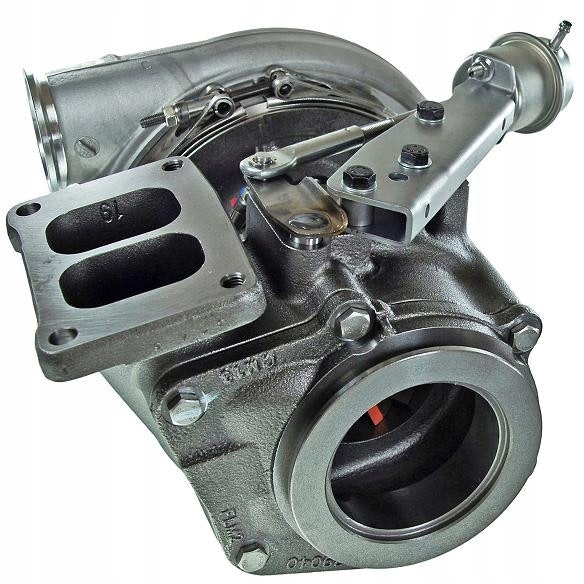

4031182H Holset fabriksny originalturbo HX55W Volvo FH MD13 EURO 4 OEM : 20763166 , 85013511 , 85000596
- 9 995 kr
4031182H Holset fabriksny originalturbo HX55W Volvo FH MD13 EURO 4 OEM : 20763166 , 85013511 , 85000596- Fabriksny originalturbo Holset.- Monteringssats medfölj
Artikelnummer:
4031182H
4031182H Holset fabriksny originalturbo HX55W Volvo FH MD13 EURO 4 OEM : 20763166 , 85013511 , 85000596
- Fabriksny originalturbo Holset.
- Monteringssats medföljer vid köp utav denna turbo online.
- 3 års garanti.
- Vi på Turboshop Sweden AB är Holset master distributör för Sverige,Norge,Danmark med stort lager samt gedigen kunskap.
Ersättningsnummer turbonummer : 4044319D, 3790523, 3790523D, 4031182, 4031182H, 5322469, 4047216 , 4031182HX
Originanummer Volvo : 20763166 , 85013511 , 85000596
Packningssats ingår vid köp utav denna turbo.
Bytesturbo = Gamla turbon skall i retur till oss.
Turbonummer / Originalnummer / Turbofakta :
Part Number | 4044319 |
Previous Version | 4044319D, 3790523, 3790523D, 4031182, 4031182H, 5322469, 4047216 |
OE number | 20763166 |
Description | Truck FH/FM |
CHRA | 4031444 (403144400, 403144400H, 4031444H, 4032094, 403209400, 403209400H, 4032094H, 5451481, 545148100, 545148100H, 5451481H)(1153055901) |
Turbo Model | HX55W |
Engine | MD13 EURO4 |
Engine Manufacturer | Volvo |
Displacement | 13000 ccm |
KW | 353/382/480 HP |
Fuel | Diesel |
Angle α (compressor housing) | 125º |
Angle β (turbine housing) | 180º |
Bearing Housing | 4039258 (Oil Cooled)(1153055451) |
Turbine Wheel | 4042293 (3767975)(Ind. 86. mm, Exd. 77. mm, Trm 9.87, 12 Blades)(1153055437, 1100016122B, 401050006) |
Comp. Wheel | 3593686 (4040739, 4040740, 4041666)(Ind. 67. mm, Exd. 97.68 mm, Trm 6.29, 7+7 Blades, Superback)(1200016360) |
Back plate | 3528096 (1153055300, 1800016024 |
Heat Shield | 3529846 (3533038)(1153055340, 406500001) |
Repair Kit | 3575181 (3545577, 3580762)(1153055750, 5000020023) |
Gasket Kit | 3545577 |
Actuator | 4030877 |
Manufacturer | HOLSET |
Applications
2006-07 Volvo Truck FH, FM with MD13 EURO4 Engine
