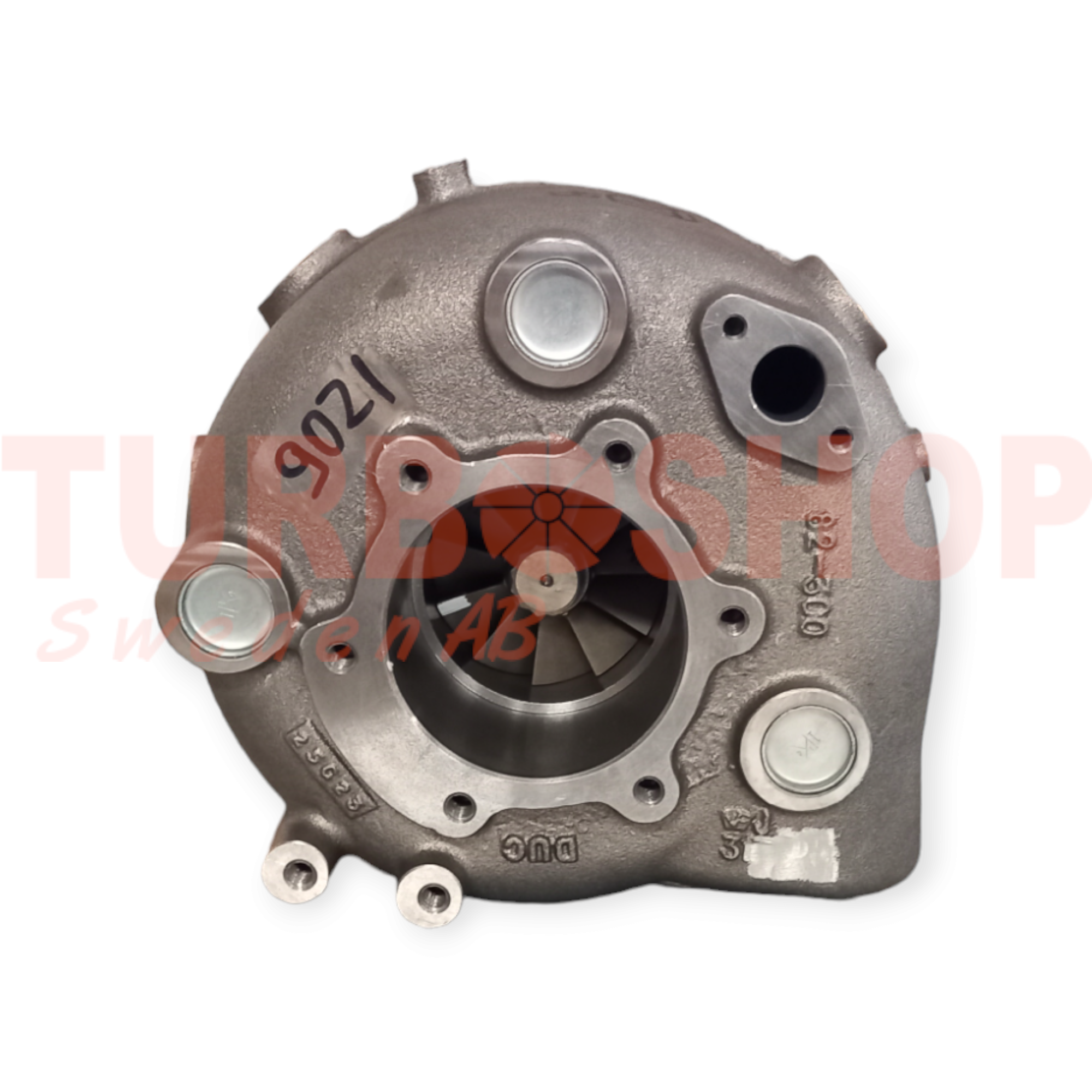

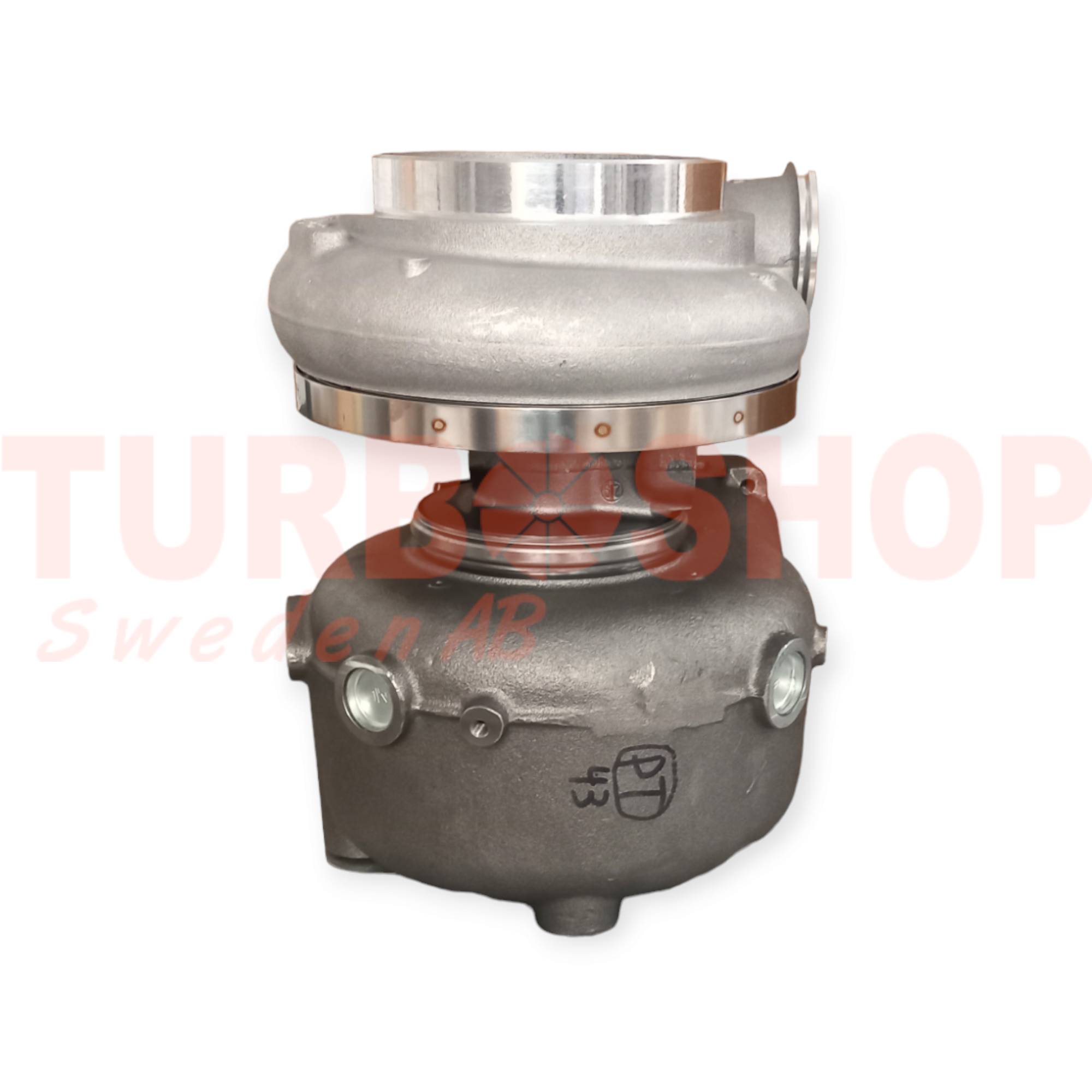

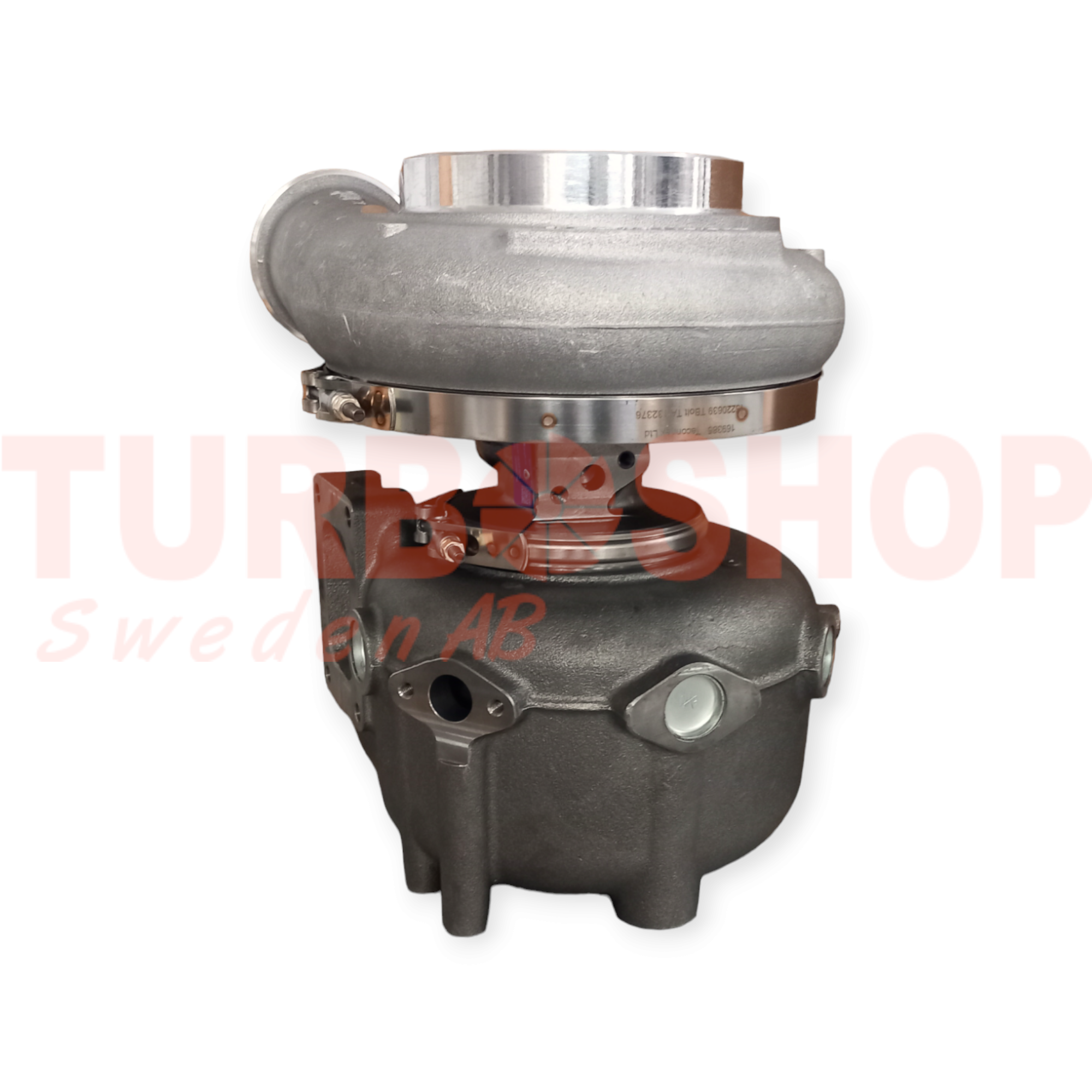

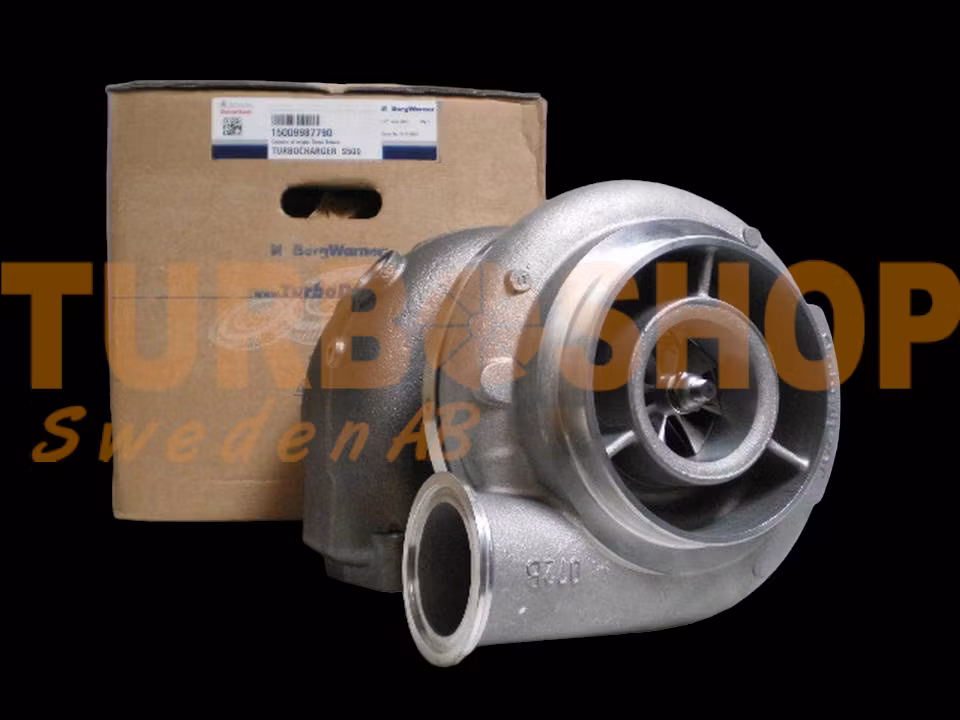

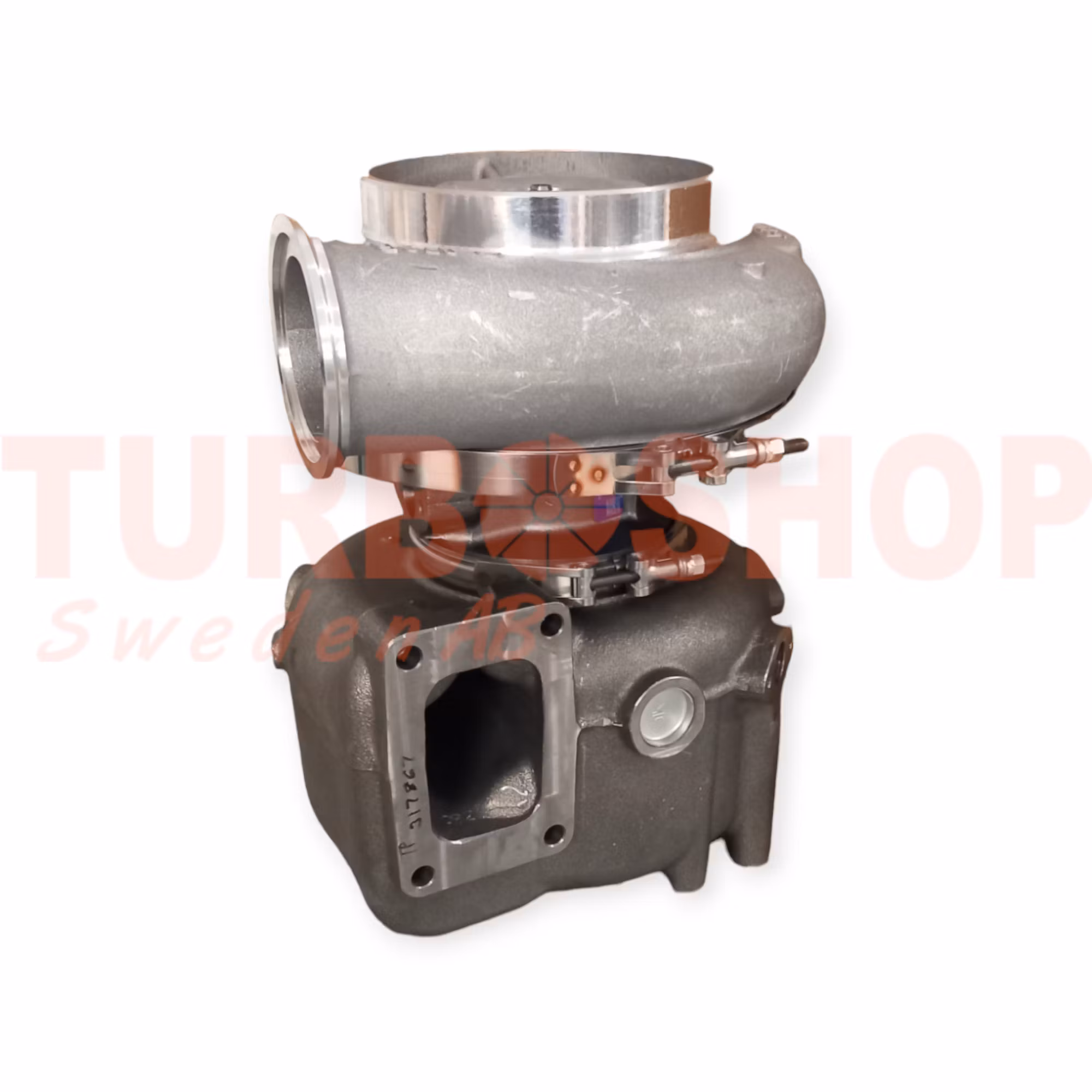

15009987790 BorgWarner S500W D12 OEM : 3826598, 3802116, 3802114

  • 27 995 kr

15009987790 BorgWarner S500W D12 OEM : 3826598, 3802116, 3802114- Fabriksny originalturbo.- 3 års garanti.- Monteringssats medföljer.Vi kan även renovera denna

I lager.
Artikelnummer: 15009987790
Dela

15009987790 BorgWarner S500W D12 OEM : 3826598, 3802116, 3802114

- Fabriksny originalturbo.

- 3 års garanti.

- Monteringssats medföljer.

Vi kan även renovera denna turbo för er.

Turbonummer / Originalnummer / Turbofakta :

Part Number15009987790
Previous Version1500-998-7790, 317790, 1500-988-7790,  1500 998 7790
OE number 3826598, 3802116, 3802114
Year 1999-11
DescriptionShip, Marine
Manufacturer Part Number317790, 1500-970-7790
CHRA317865 $1958.17 NEW IN STOCK
Turbo ModelS500W-110_55AABM/0.82HJ2
Engine ModelD12, D31A, D31B and D31D, MD11 EURO 3
Interchangeable Turbo Part OE No317790, 3802116, 3826598
FuelDiesel
Source Reference 866720
Displacement12.0L,  12000  ccm
Engine Manufacturer Volvo - Penta
KW 507/680
RPM Max 2300
Fuel Diesel
Angle α (compressor housing)90°
Angle β (turbine housing)320°
Bearing Housing317303 (Oil Cooled)
Turbine Wheel318156 (Ind. 88.95 mm, Exd. 99. mm, 11 Blades)
Comp. Wheel317294 (Ind. 78.32 mm, Exd. 114.57 mm, Trm 8.99, 8+8 Blades, Billet) $394.27 NEW IN STOCK
Back plate317311 (171524) $74.04 NEW IN STOCK
Heat shield Number318
Repair Kit318416
Turbine Housing (water-cooled)317867
Compressor Cover317295
Gasket (turbine inlet)470939 (417382, 20784537) (Stainless Steel) $21.50
Gasket oil inlet420641 (1006177) $3.61
Gasket (oil outlet)470993 (1027702) $3.61
NOTEIntercooler, Restricted to Volvo-Penta
ManufacturerBorg Warner - 3K - Schwitzer, BWTS UK


Applications


1999-11 Volvo Penta Ship with MD11 EURO 3 Engine
