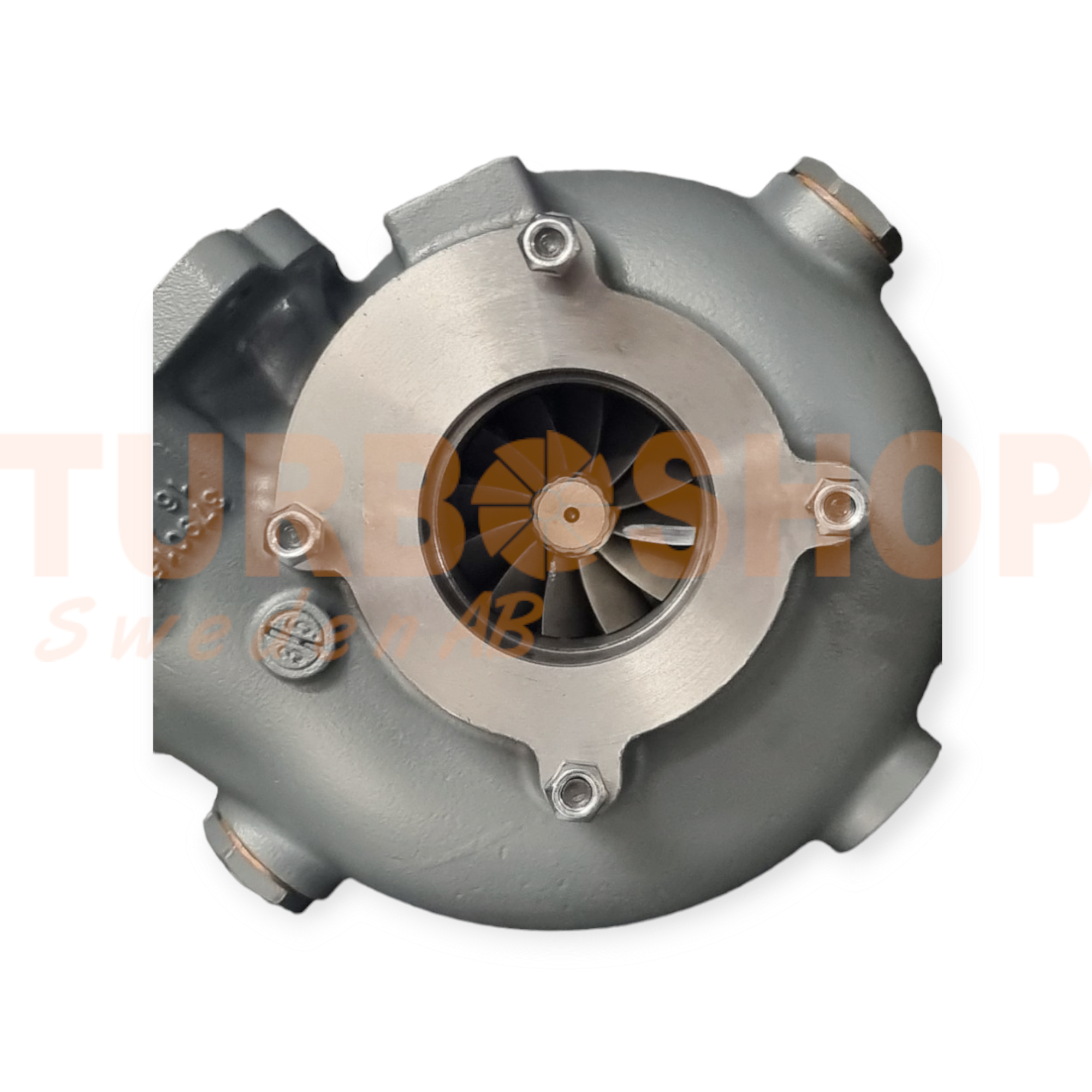

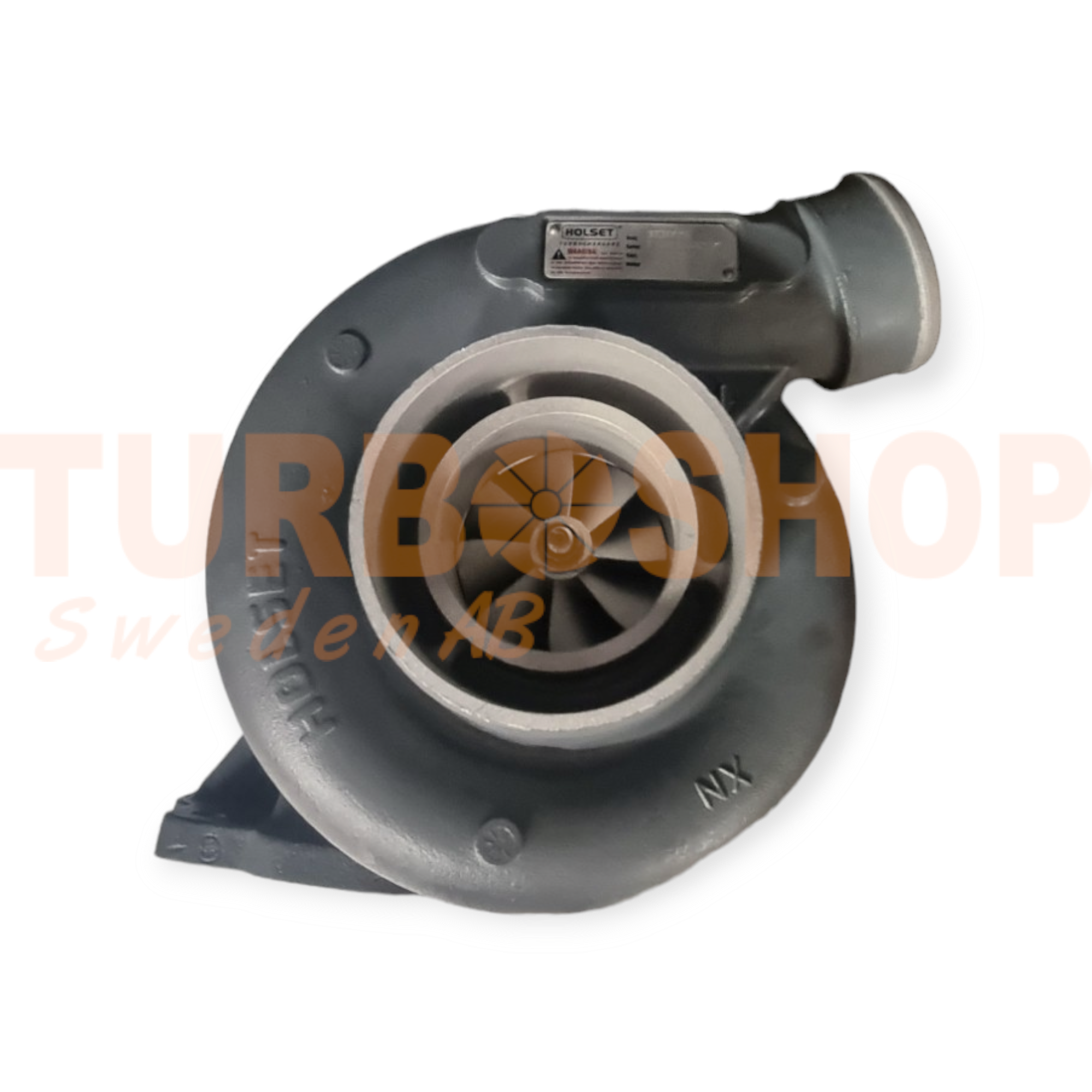

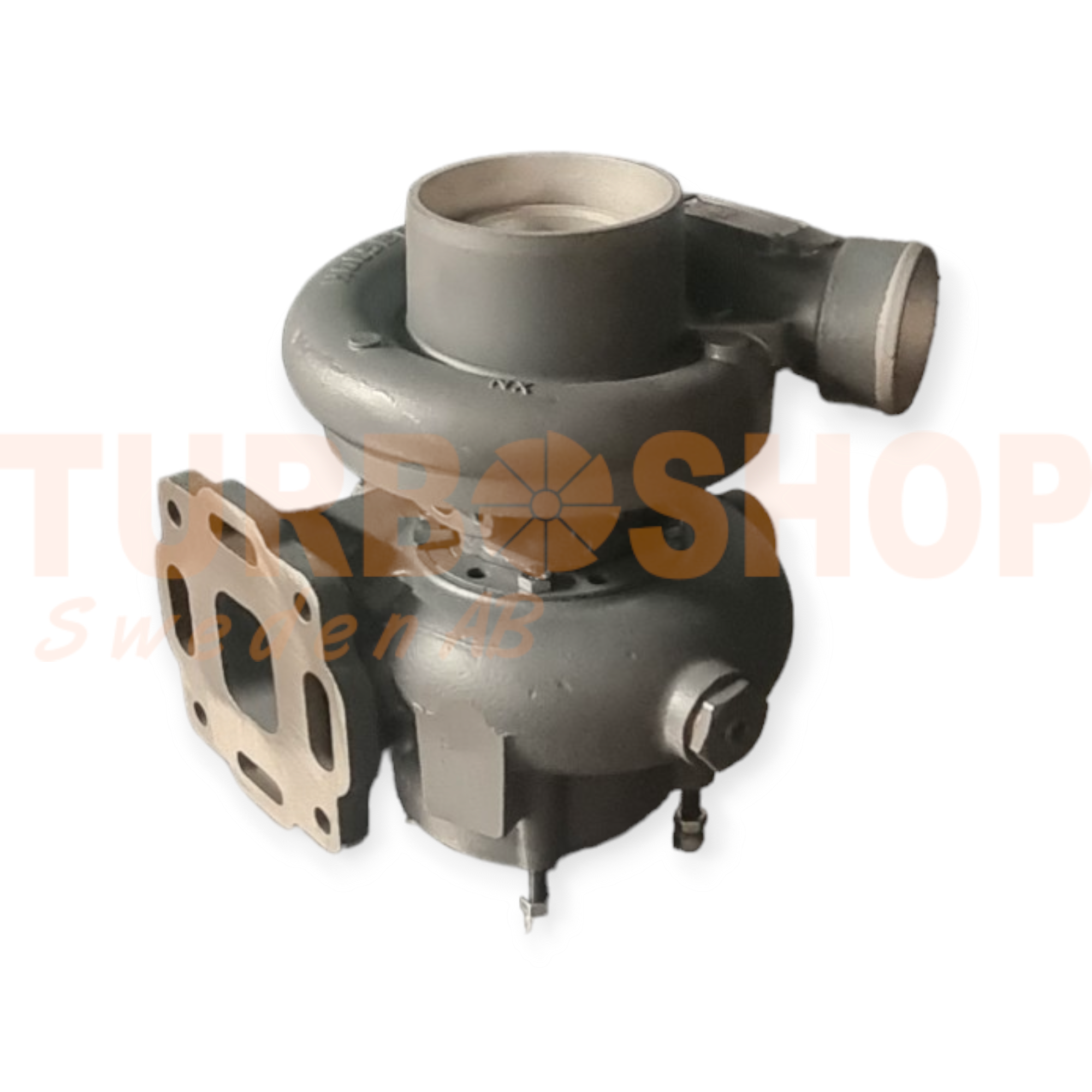

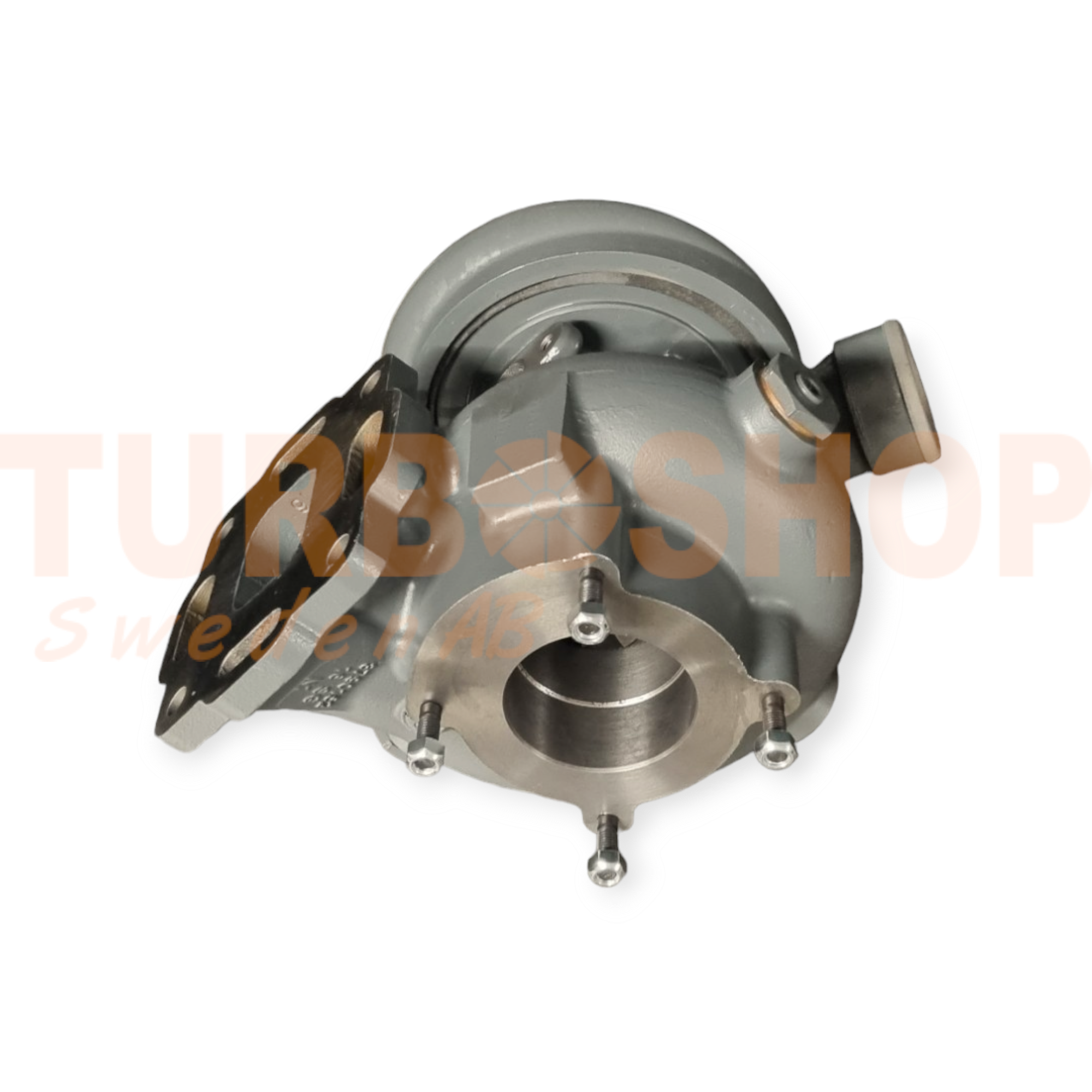

3536620 / 3536621 HX40M Renoverad originalturbo Motorkod : 6BTAM ( Bytesturbo )

  • 12 995 kr

3536620 / 3536621 HX40M Renoverad originalturbo Motorkod : 6BTAM ( Bytesturbo )-Renoverad originalturbo med originaldelar.- 3 års garanti.-Detta är en renoverad

I lager.
Lagersaldo: 1
Artikelnummer: 3536620-BT
Dela

3536620 / 3536621 HX40M Renoverad originalturbo Motorkod : 6BTAM ( Bytesturbo )

-Renoverad originalturbo med originaldelar.

- 3 års garanti.

-Detta är en renoverad originalturbo ifrån Turboshop Sweden AB - Som är marknadsledande i Norden inom turborenovering.


Turbonummer / originalnummer / Turbofakta :

Part Number3536621
Previous Part Number3536620, 3536621, 3536621H
DescriptionMarine
OE number3802829, 380282900, 3802829NX, 3802829RX
CHRA4027283 (4027283H)
Turbo ModelHX40M, HX40-L8294T/J16S3
Engine6BTAM,  B-series
Displacement5.9L, 5900 ccm, 6L Cylinders
KW280/315/355 HP
NSN2950-01-484-8749, 2950014848749
FuelDiesel
Engine ManufacturerCummins
Angle α (compressor housing)241º
Angle β (turbine housing) 301º
Bearing Housing 3532632 (3532631, 3539694, 3599943, 4027754, 4035136, 4036549)(Oil Cooled)(1153040450, 1900011016) $85.00 NEW IN STOCK
Turbine Wheel3536624 (3525687)(Ind. 75.92 mm, Exd. 61.59 mm, Trm 10.96, 12 Blades) $118.00 NEW IN STOCK
Comp. Wheel3599591 (3525358, 3537151)(Ind. 60.93, Exd. 81.22, 8+8 Blades, Superback)(1152301701, 1200016068) $66.25 NEW IN STOCK
Back plate3530923 (1154351300, 1800016009) $21.48 NEW IN STOCK
Heat shield Number3519302 ()(1152301341, 2030016031) $14.00 NEW IN STOCK
Repair Kit3575169 (1153035750, 5000020021) $88.80 NEW IN STOCK
Turbine Housing (Water-Cooled)3537678
Compressor Cover3536623  $283.38
Gasket (turbine inlet)210849 (8027510)(Stainless Steel)
Gasket (turbine outlet)210850 (Inox Steel)
Gasket oil inlet210023   (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681,  3519762,  409266-0001, 409036-0000, 409026-0001,  52231586500)(1900000037) $4.48
Gasket (oil outlet)210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32
ManufacturerHOLSET


Applications


1995-06   Cummins Marine with 6BTAM Engine
