Turbosmart turbocharger 6466 V-Band/V-Band A/R 0,82

  • 31 495 kr

Turbosmart turbocharger 6466 V-Band/V-Band A/R 0,82  "Smaller, Lighter and Faster" Horsepower Rating: 930 PS V-Band inlet - V-Band outl

I lager.
Artikelnummer: TS-2-6466VB082E

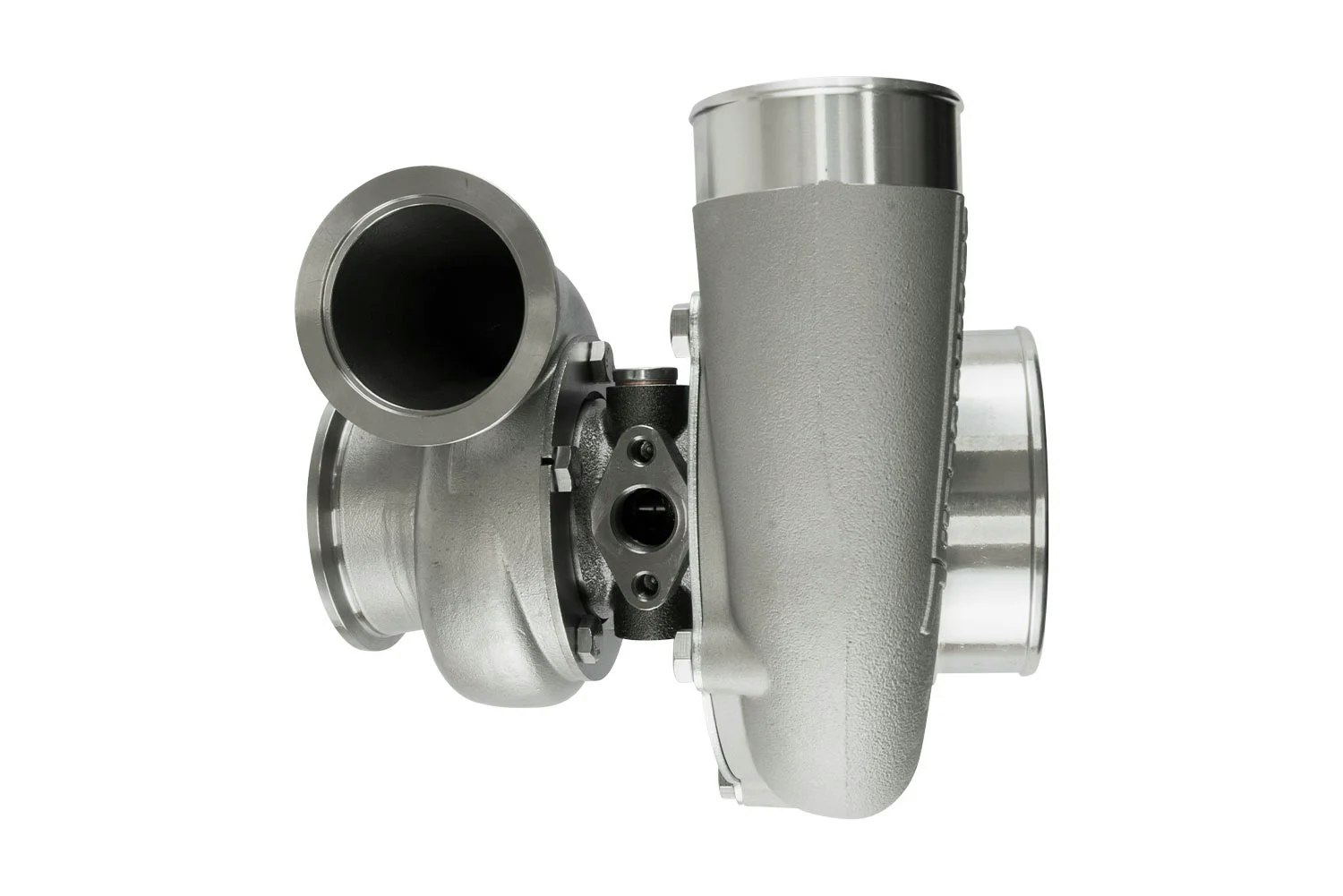

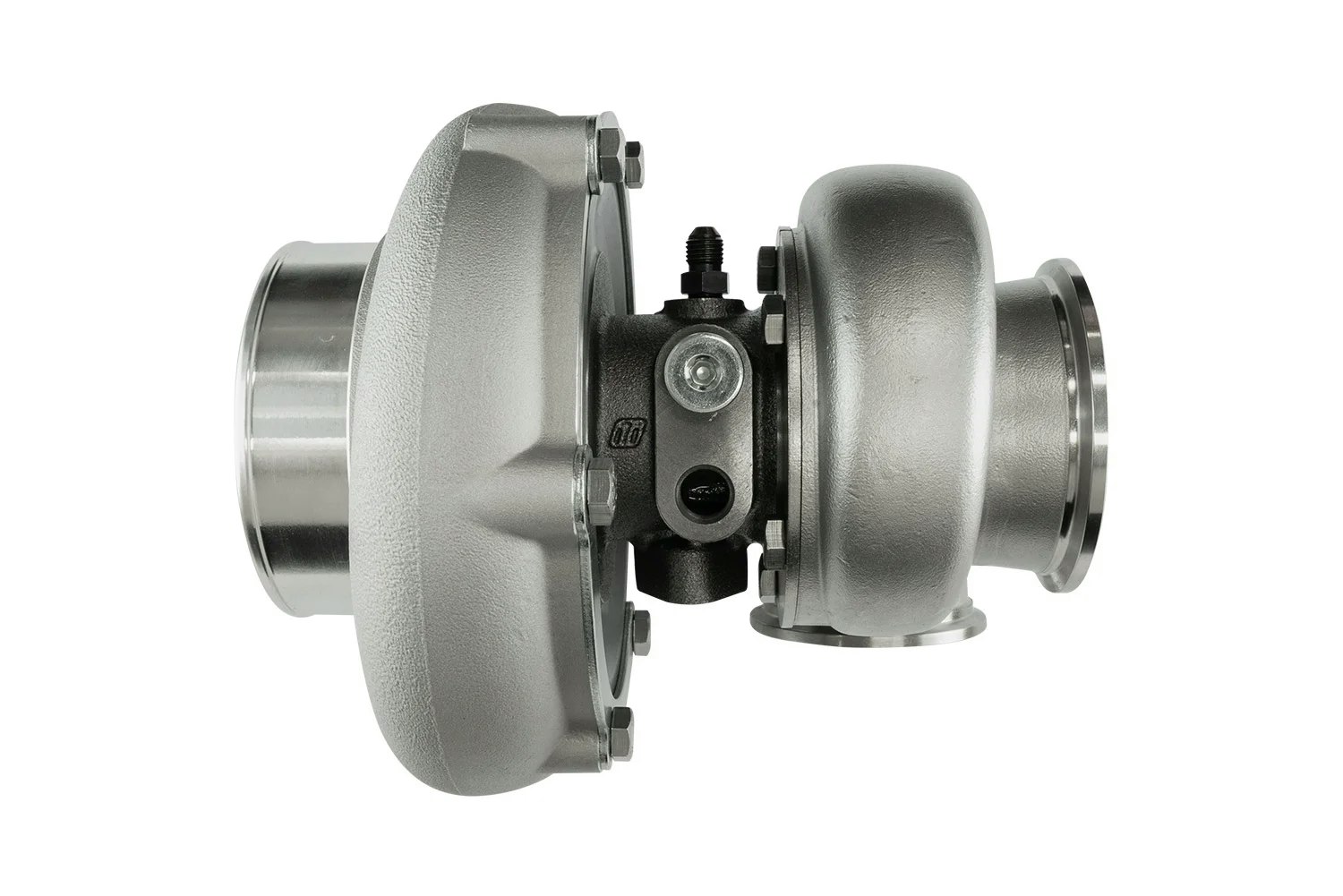

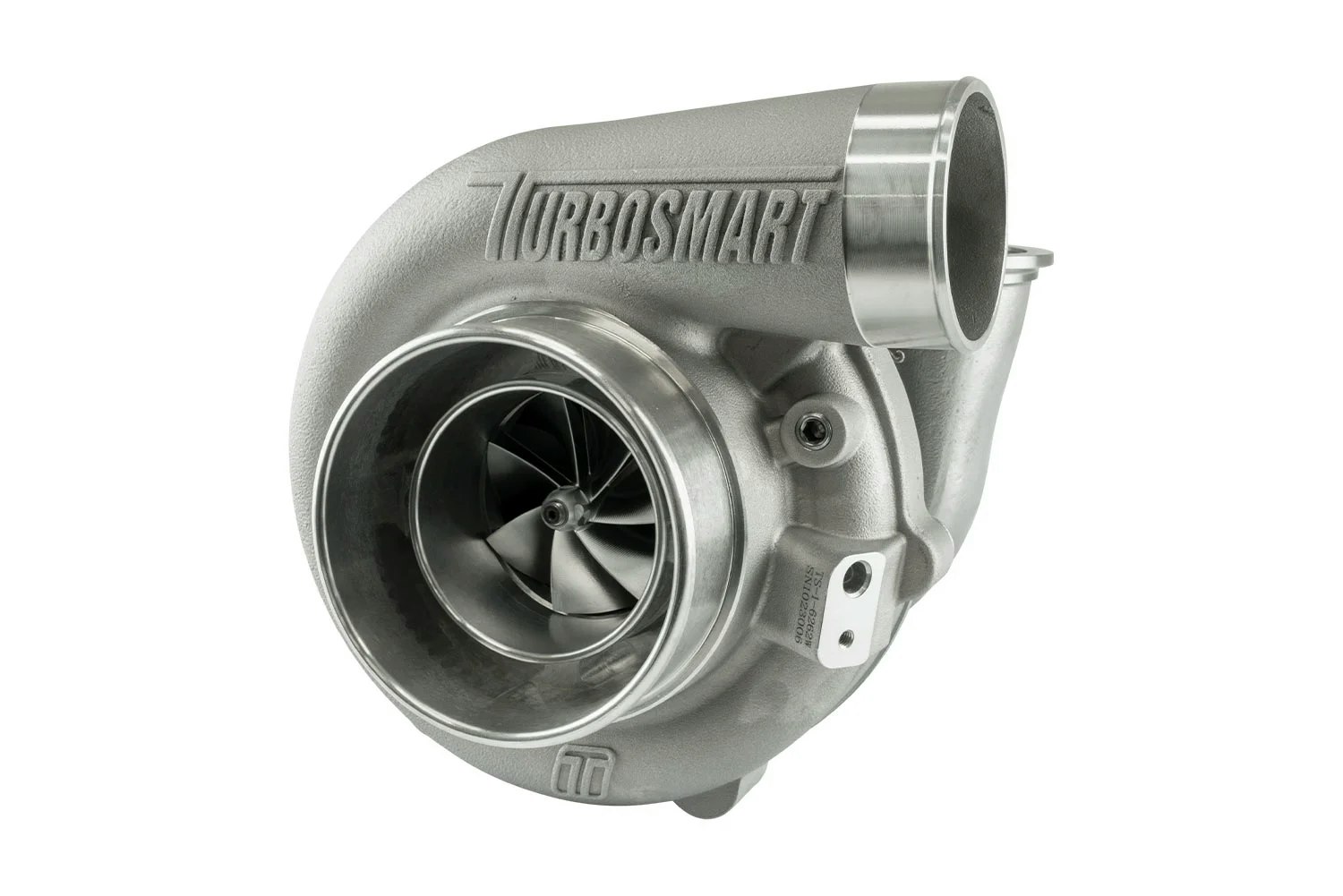

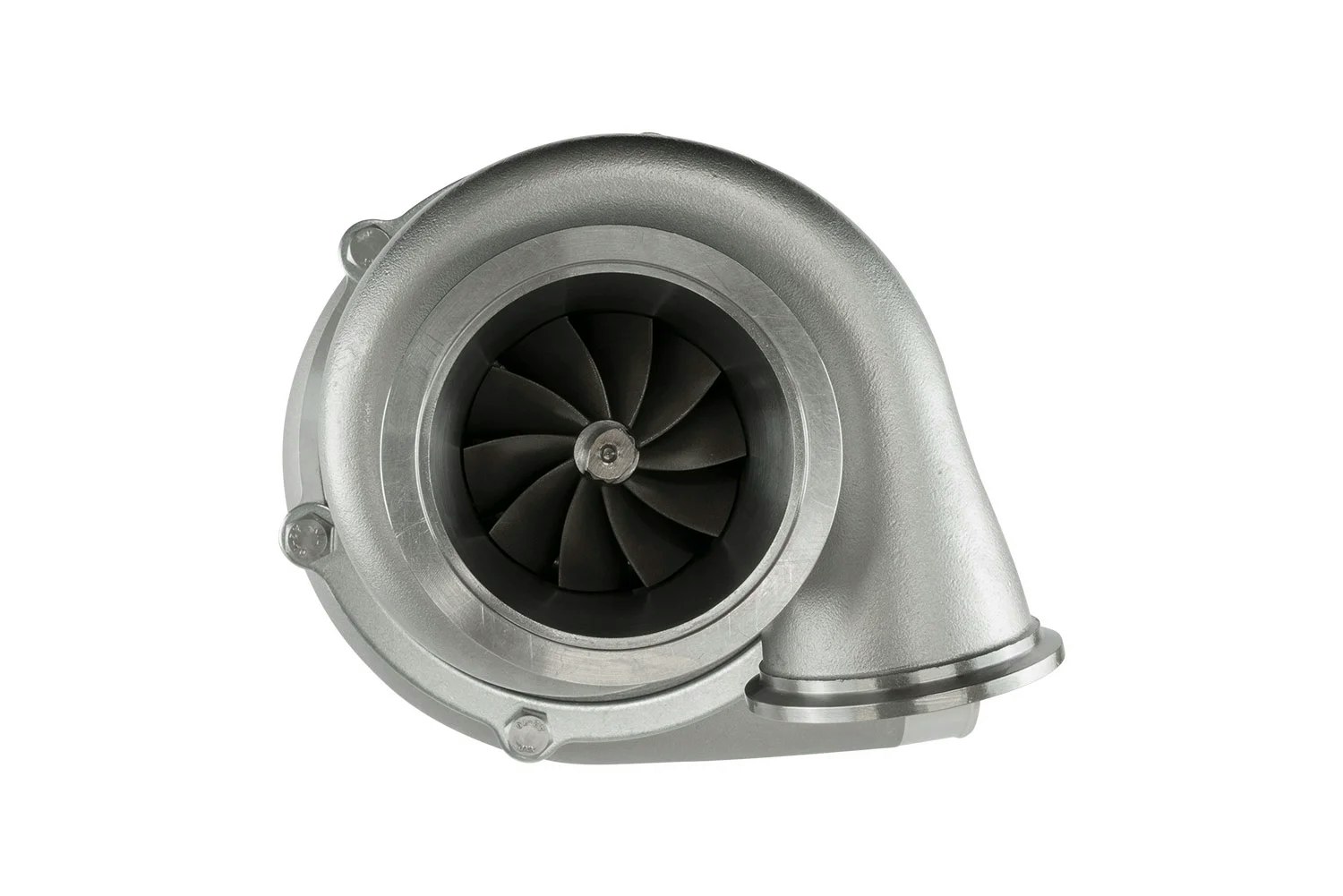

Turbosmart turbocharger 6466 V-Band/V-Band A/R 0,82


"Smaller, Lighter and Faster"


Horsepower Rating: 930 PS


V-Band inlet - V-Band outlet - Single Scroll - 0.82 A/R - Externally Wastegated (Water Cooled)


The  Turbosmart TS-2 turbocharger series has been developed to leverage  modern materials, design and manufacturing techniques to create a  Turbocharger range that meets the demands of both Motorsport, and  performance enthusiasts alike.


The TS-2 series are water and oil  cooled turbochargers with lightweight stainless steel investment cast  turbine housings, a proprietary bearing and main shaft combination which  will provide transient response you never knew possible with the type  of performance, quality, reliability and support you’ve come to know  Turbosmart for.


The ultra-low rotating mass of our unique bearing  and shaft assembly is matched to aggressive compressor aerodynamics to  ensure high levels of performance at lower shaft speeds which is mated  with a unique T14 Inconel turbine wheel to ensure power at high loads  and flow is maintained.


The TS-2 turbocharger series has taken a  ‘whole of engine’ approach to increasing performance, aiming to achieve  power through reduced back pressure and high performance turbines –  while being smaller, lighter and faster in response than other solutions  on the market.



Available In:


  • TS-1 oil cooled turbochargers
  • TS-2 oil and water cooled turbochargers
  • V-Band, various T3 Flange and T4 Flange options
  • Reverse rotation (Selected Sizes)
  • Various AR’s options
  • Internal and external wastegated options available




  • Unparalleled transient response
  • Aggressive aerodynamics with 7+7 splitter wheels
  • Lightweight 310s stainless steel investment cast turbine housings
  • Lightweight, Aluminium compressor covers
  • CFD driven designed housings for optimal AR’s and flow
  • T14 Inconel turbine wheel for extreme EGT’s
  • VSR speed balanced
  • Proprietary dual ceramic bearing system
  • Integrated Iron backplate on center housing
  • Water Cooled




  • Compressor Inlet: 4″ / 101.6mm
  • Compressor Inducer: 64mm
  • Turbine Inlet: V-Band (2.25″)
  • Turbine Exducer: 66mm
  • Turbine AR: 0.82
  • Turbine Outlet: V-Band (3.00″ -76mm)
  • Weight: 8 kg

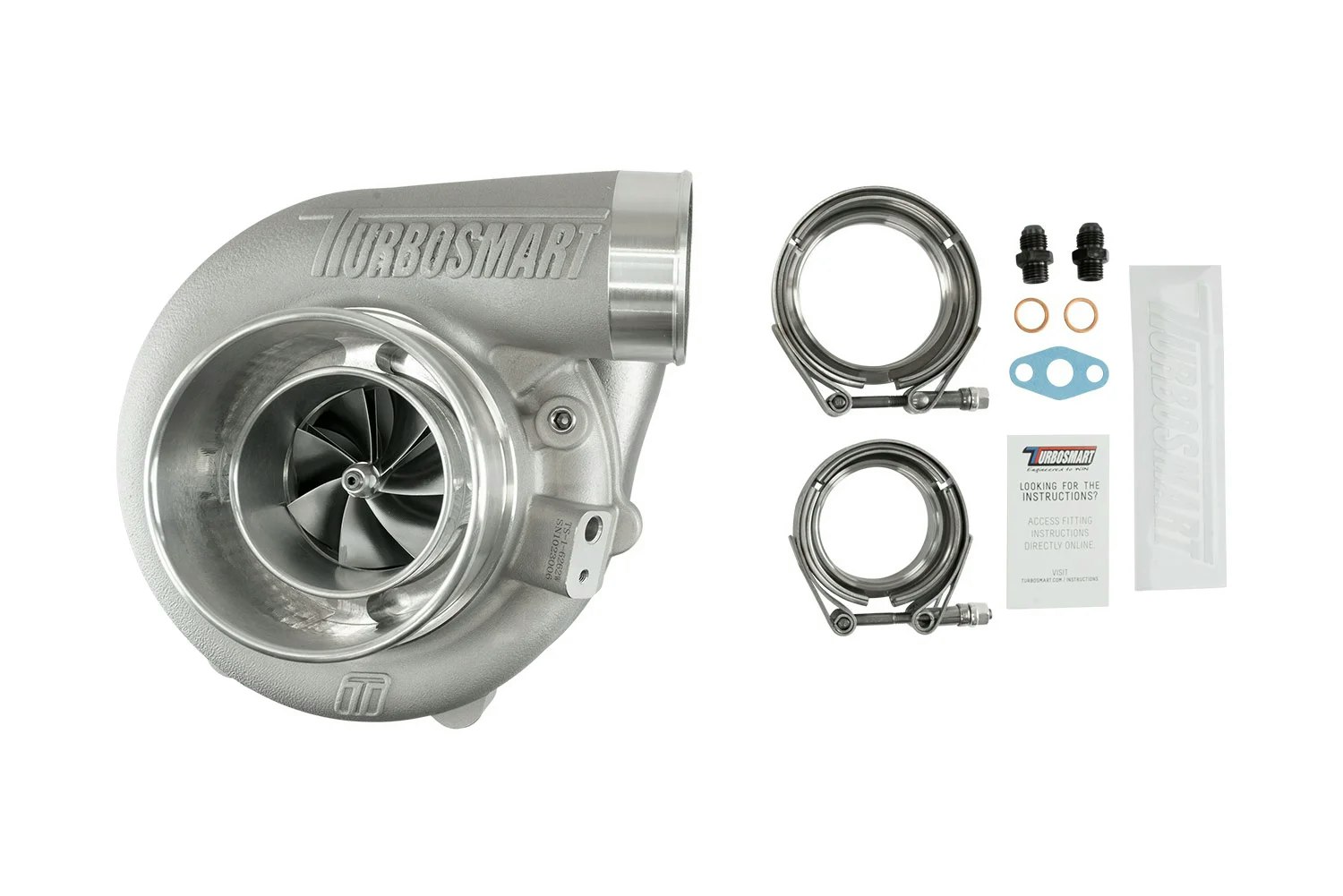

  • 1 x Turbosmart Performance Turbocharger
  • 2 x Weld Flanges (Turbine inlet and outlet)
  • 2 x V-Band Clamps (Turbine inlet and outlet)
  • 1 x Oil drain gasket
  • 1 x Oil restrictor
