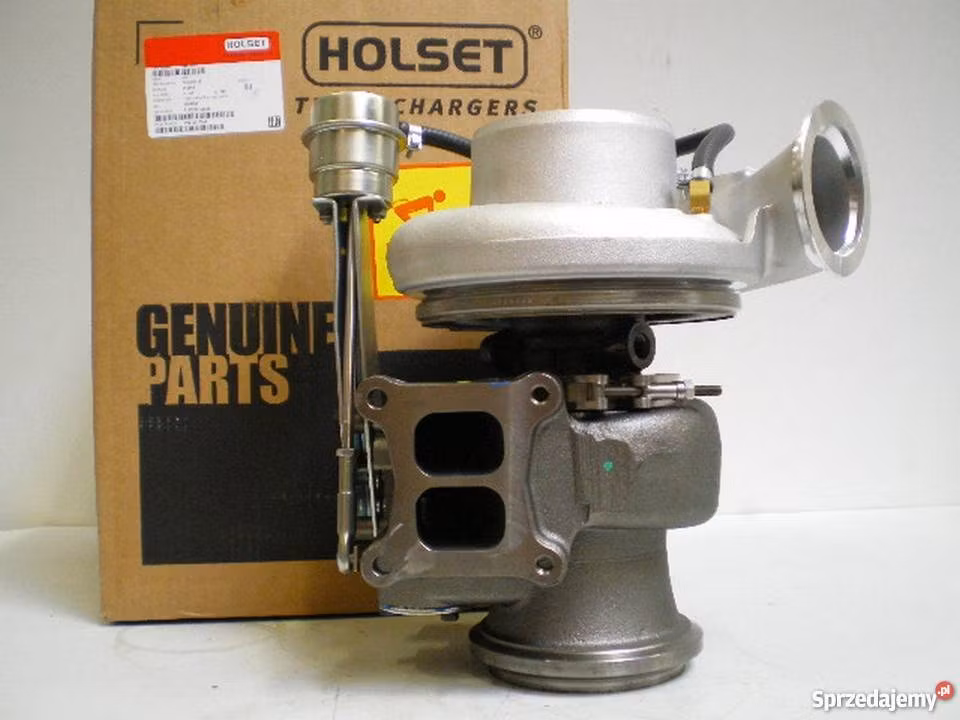

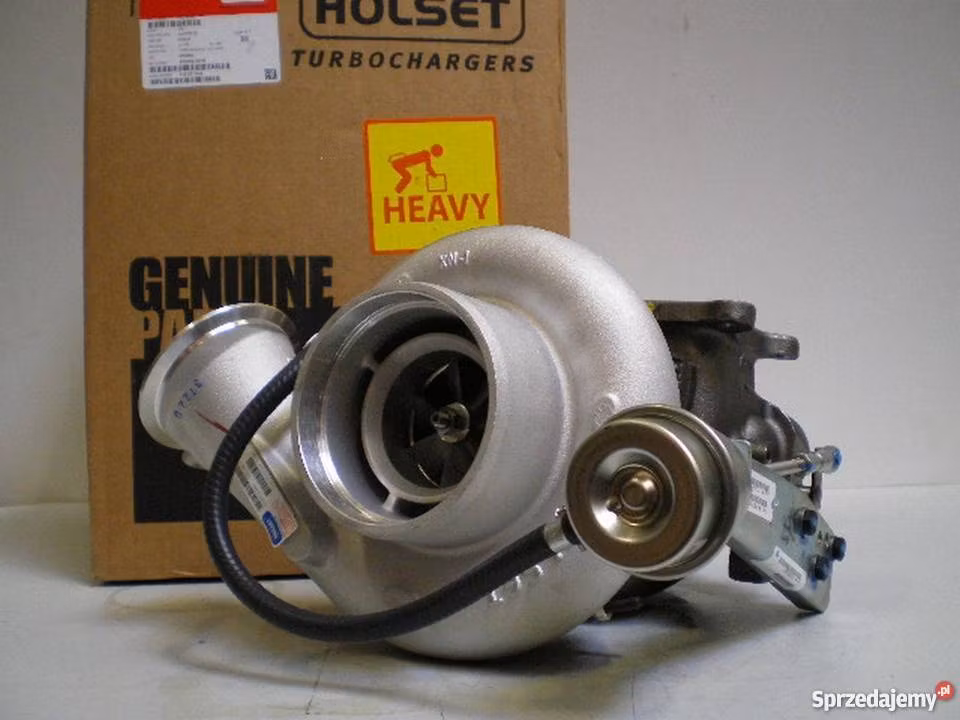

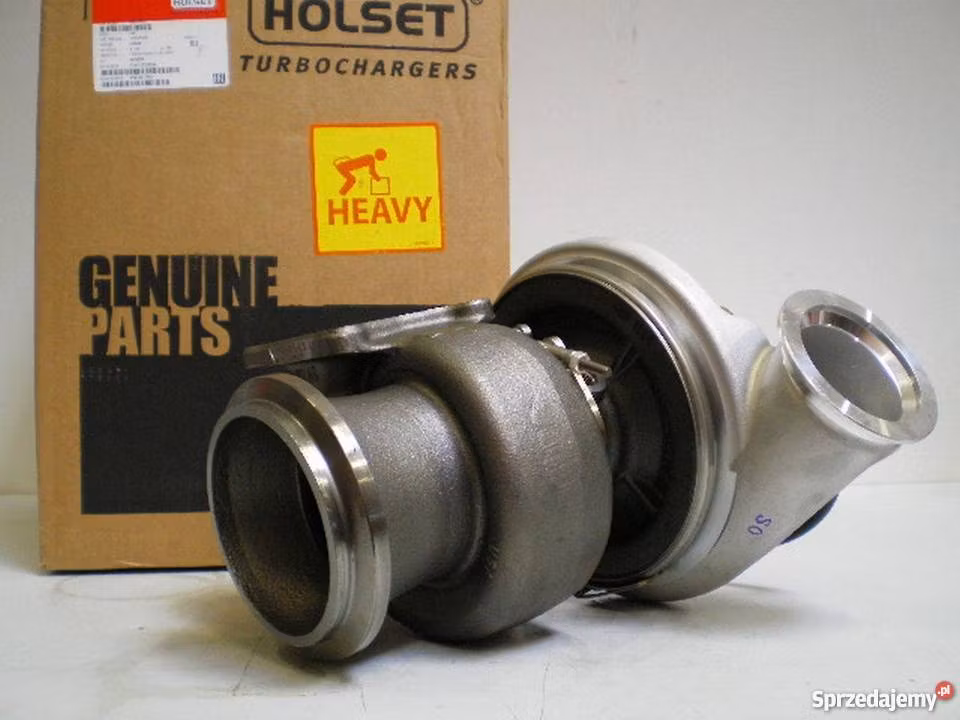

4037626H Holset HE500WG fabriksny originalturbo

  • 29 995 kr

4037626H Holset HE500WG fabriksny originalturbo- Fabriksny originalturbo ifrån Holset / Cummins.- 3 års garanti.Fabriksny originalturbo Holset - 4037625 4037626

I lager.
Artikelnummer: 4037626H
Dela

4037626H Holset HE500WG fabriksny originalturbo

- Fabriksny originalturbo ifrån Holset / Cummins.

- 3 års garanti.

Fabriksny originalturbo Holset - 4037625 4037626 4037626H 4039067 4039068 4089858 4089885 4037625H

Originalnummer Cummins :  4089858 4089885

Motortyp Cummins : QSM 2/3 TIER 3

Turbonummer / Originalnummer / Turbofakta :

Part Number4037625
Previous versions3792807, 4043708, 4037626, 4039067, 4039068, 4043707, 4043708,  4037626H, 3792809, 3792809H, 4043707,
OE Number4352298, 435229800, 435229800HX, 4352298H, 4352298NX, 4352298RX, 4955714, 4955714NX, 4955714RX
DescriptionCummins M11 QSM11 ISM   Various  (L PHASE)
CHRA4032690 (4032690H
Turbo ModelHX55W-C98K72RU/C86L90PH19J-W2, HE500WG, HX55
Engine ModelQSM 2/3, QSM 2/3 Tier-3, M11 Tier3
Displacement 11.0L, 6  Cylinders in-line
Engine Manufacturer Cummins
Fuel Diesel
Angle α(compressor housing)  264/268°
Angle β (turbine housing)  130/275.5°
Bearing Housing3535575 (353557500, 3535704)(Oil Cooled)
Turbine Wheel3535983 (Ind. 85.8 mm, Exd. 76.95 mm, 12 Blades) (1153055436)
Comp. Wheel4035887 (3596135)(4036317) (Ind. 71.00 mm, Exd. 99.01 mm, Trm 51, 6+6 Blade)
Type Turbo with C/Wheel made by the milling machine
Back plate3528096 (1153055300)
Heat shield Number3529846 (3533038)(1153055340)
Repair Kit3580762 (3575181, 3533038)(1153055750) $88.00 NEW IN STOCK
Turbine Housing3592774
Compressor Cover4036914
Actuator4037622
Gasket Kit4032517
Gasket (turbine inlet)409039-0000 (409039-0001, 210019, 2405022, 210847)(1900000006)(Inox Steel)$13.52
Gasket (turbine outlet)210245 (Inox Steel)
Gasket oil inlet210023  (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762,  409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (oil outlet)210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper)
ManufacturerHolset


Applications


2004-  Cummins Various with QSM 2/3 Engine
