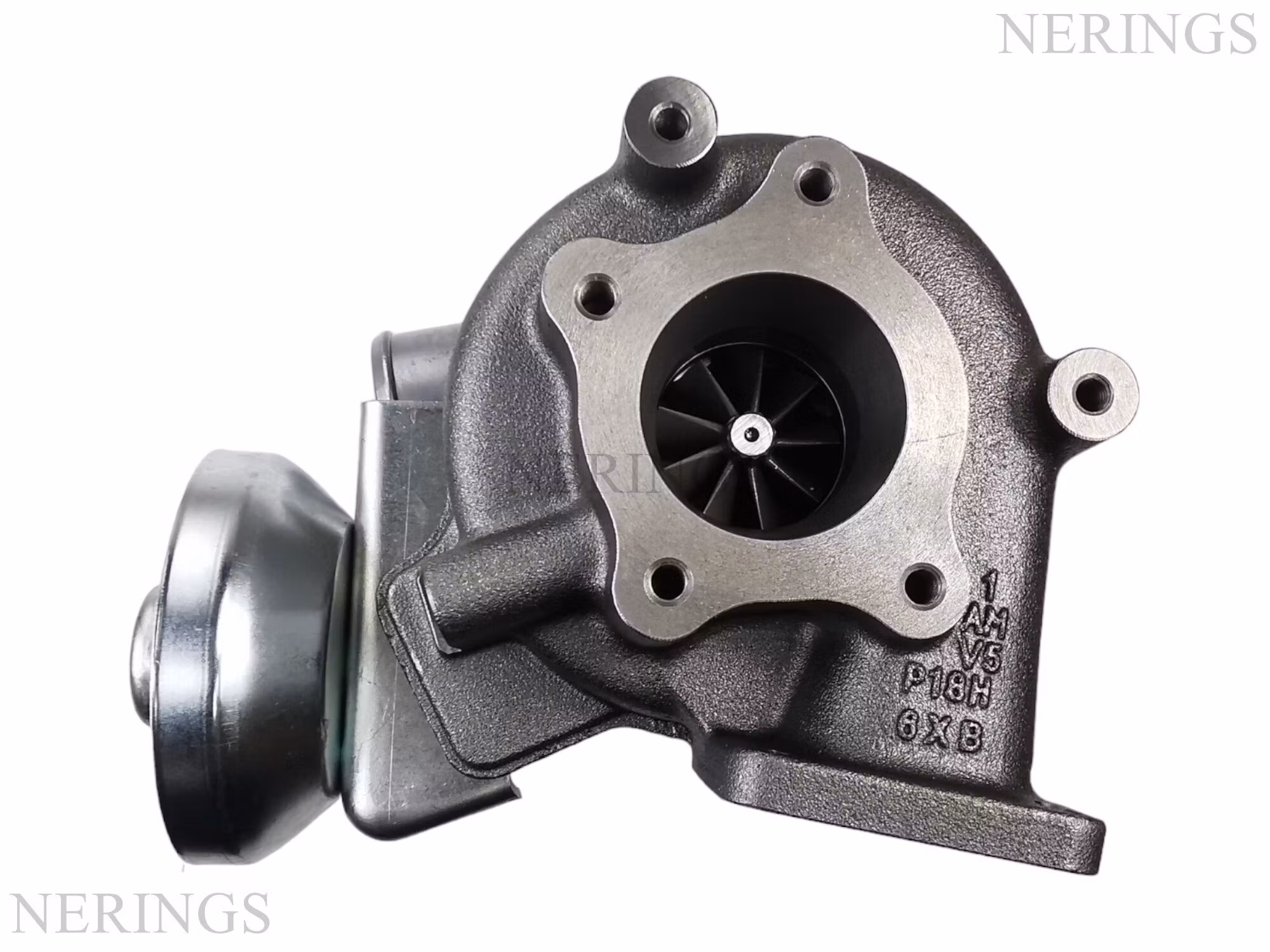

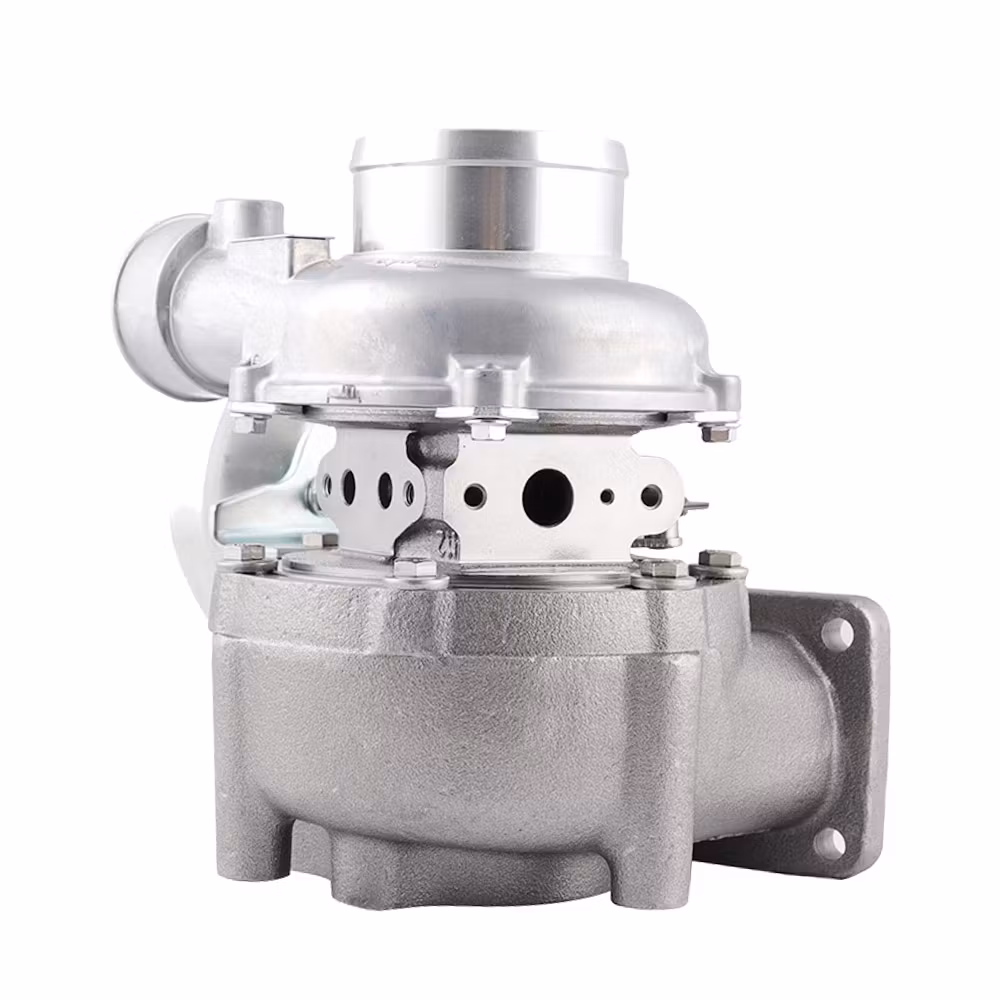

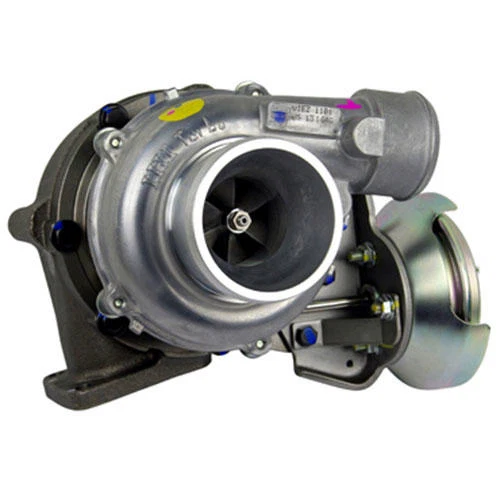

VIEZ IHI Fabriksny originalturbo Motorkod : 4JJ1T, 4JJ1-TC

  • 27 995 kr

VIEZ IHI Fabriksny originalturbo Motorkod : 4JJ1T, 4JJ1-TC- Fabriksny originalturbo.- 3 års garanti.Beställningsvara 2-3 dagars levtid.Turbonummer / Originalnum

I lager.
Artikelnummer: VIEZ
Dela

VIEZ IHI Fabriksny originalturbo Motorkod : 4JJ1T, 4JJ1-TC

- Fabriksny originalturbo.

- 3 års garanti.

Beställningsvara 2-3 dagars levtid.

Turbonummer / Originalnummer / Turbofakta :


Part NumberVFD30013

Previous Part NumberVAD30013, VDD30013, VBD30013, VED30013, VCD30013/td>

OE number8980115293,  8980115294, 8980115295, 8980115296, 8980115297, 8-98011-5293,  8-98011-5294, 8-98011-5295, 8-98011-5296, V50VAT-SA013B, V50VATSA013B,  V53VAT-S0013B, V53VATS0013B, V501186Q

DescriptionD-MAX, Rodeo  Common Rail

V-SPEC. VIEZ

CHRA VBX90025 (V50VAT-SA013C, V50VATSA013C)(1000040171, 1000040101) $300.00 NEW IN STOCK

Turbo ModelRHV5-900025P18NHBRL4113CE

Engine Model/s 4JJ1T, 4JJ1-TC

Engine Manufacturer Isuzu

Displacement3.0L, 3000 ccm,   4 Cylinders

FuelDiesel

KW163 HP

Angle α (compressor housing)60°

Angle β (turbine housing)351°

Bearing Housing(Water Cooled)(1900011360B)

Turbine Wheel(Ind. 41.68 mm, Exd. 51.87 mm, Trm 9.43, 9 Blades)(1100016412) $49.90

Comp. Wheel(Ind. 40.62 mm, Exd. 52.45 mm, Trm 4.5, 6+6 Blades, Superback)(1200016577)

Back plate(1450040303, 1800016049) $15.13 NEW IN STOCK

Heat shield Number(2030016152) $17.50 NEW IN STOCK

Nozzle Ring Assy(3000016073) $164.93

Repair Kit(Major)(1450050755, 5000080123) $89.25 NEW IN STOCK

Actuator(2061016A26)

ManufacturerIHI


Applications


2007- Isuzu D-MAX 3.0 CRD, Rodeo  with 4JJ1T Engine
