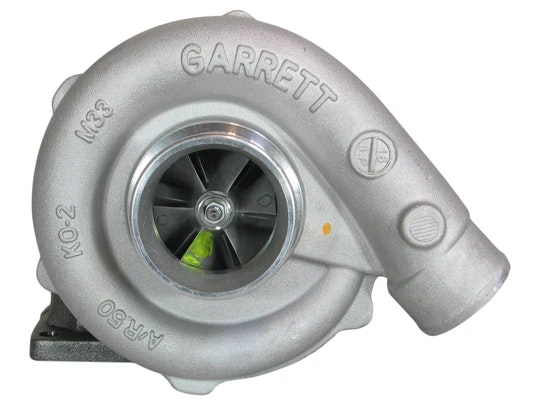

466742-5013S Garrett fabriksny originalturbo T04E10 Volvo L12OB/C L90B/C Engine : TD63,TD73K OEM : 11033835, 110335435
- Fabriksny originalturbo ifrån tillvekaren Garrett motion.
- 3 års garanti.
- Monteringssats som packningar,pinnbultar,muttrar medföljer vid köp utav denna online.
- Vi på Turboshop Sweden AB är Garrett motions officiella master distributör med stort lager samt god kunskap.
Turbonummer / Originalnummer / Turbofakta :
| Part Number | 466742-5013S |
| Previous Version | 466742-0013, 466742-0010, 466742-13,466742-5010S |
| OE Number | 11033835, 110335435 |
| Year | 1994- |
| Description | L90B Offway, A25C, L120C, L120B, L90C Offway Various |
| CHRA | 447450-0105 (447450-5105S) |
| Turbo Model | T04E10 |
| Engine | TD63, TD73K, TD73KCE |
| Engine Manufacturer | Volvo BM (VME) |
| Displacement | 6.7L, 5480/6700 ccm, 6/8 Cylinders |
| Fitted To Model | L120B Loader, L120C Wheel Loader, L90B/C |
| Fuel | Diesel |
| Angle α (compressor housing) | 315º |
| Angle β (turbine housing) | 315º |
| Bearing Housing | 430027-0025 (312379, 407285-0027, 407285-0038, 430027-0022, 430027-0025, 430027-0048, 186879, 186881)(Oil Cooled)(1100030450) |
| Turbine Wheel | 446905-0004 (407276-0006, 407276-0019, 410188-0003, 410188-0006, 410188-0037, 446905-0002, 446905-0005, 446905-0007, 446905-0010, 451309-0003, 451309-0004)(Ind. 57.65 mm, Exd. 73. mm, Trm 62, 11 Blades)(1100040437) |
| Comp. Wheel | 446618-0024 (446618-0027)(Ind. 55.55 mm, Exd. 82. mm, Trm 46, 6+6 Blades) |
| Back plate | 408045-0031 (408045-0030, 408045-0038, 408045-0039, 408045-0061, 408045-0019) (ME078204) |
| Heat shield Number | 409299-0001 (409299-0000)(311943, 7N0012, 3524773B) |
| Repair Kit | 468265-0000 (468265-0000UK, 3545831)(1100040760) |
| Turbine Housing | 441458-0053 |
| Compressor Cover | 443219-0097 |
| Turbine Housing AR | 0.84 |
| Gasket (turbine inlet) | 409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006)(Inox Steel) |
| Gasket (turbine outlet) | 409196-0001 (210226)(Stainless Steel) |
| Gasket oil inlet | 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) |
| Replaced By | 466742-0015 |
| Manufacturer | Honeywell-Garrett |
Applications
1994- Volvo L12OB/C L90B/C Loader Truck with TD63, TD73K Engine
